Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

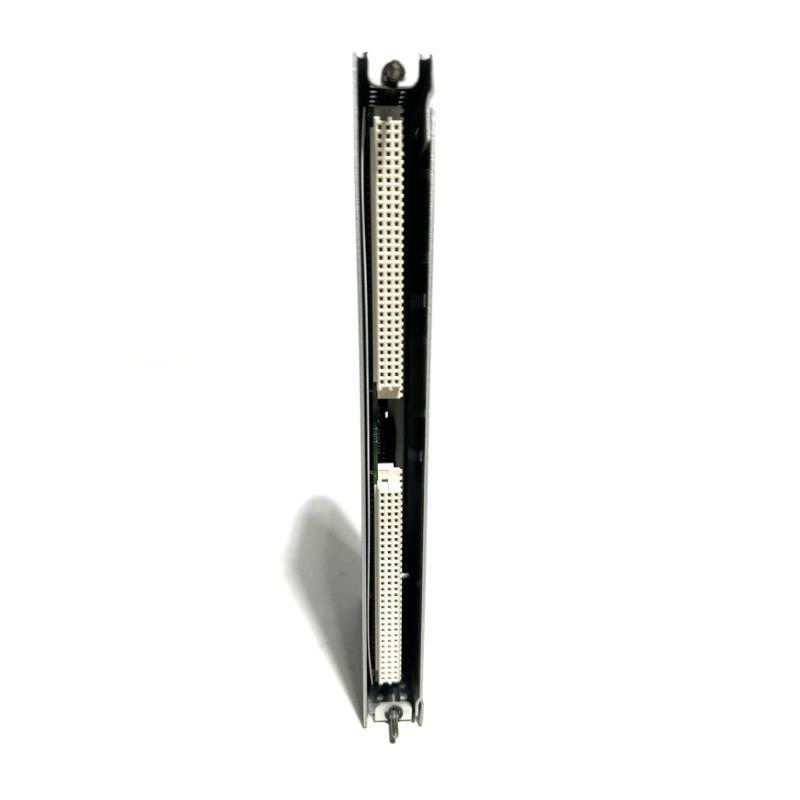

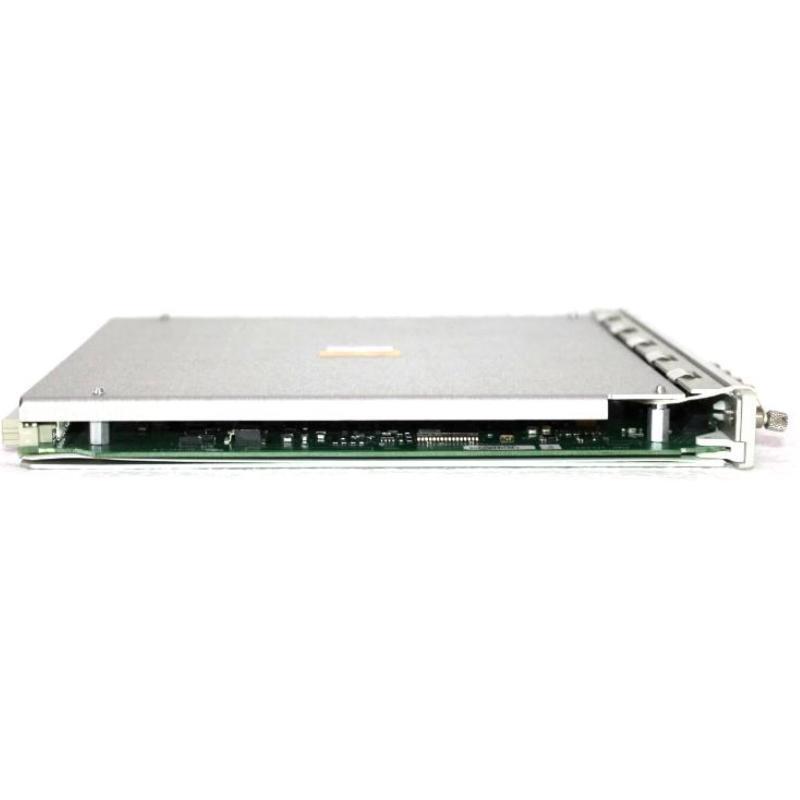

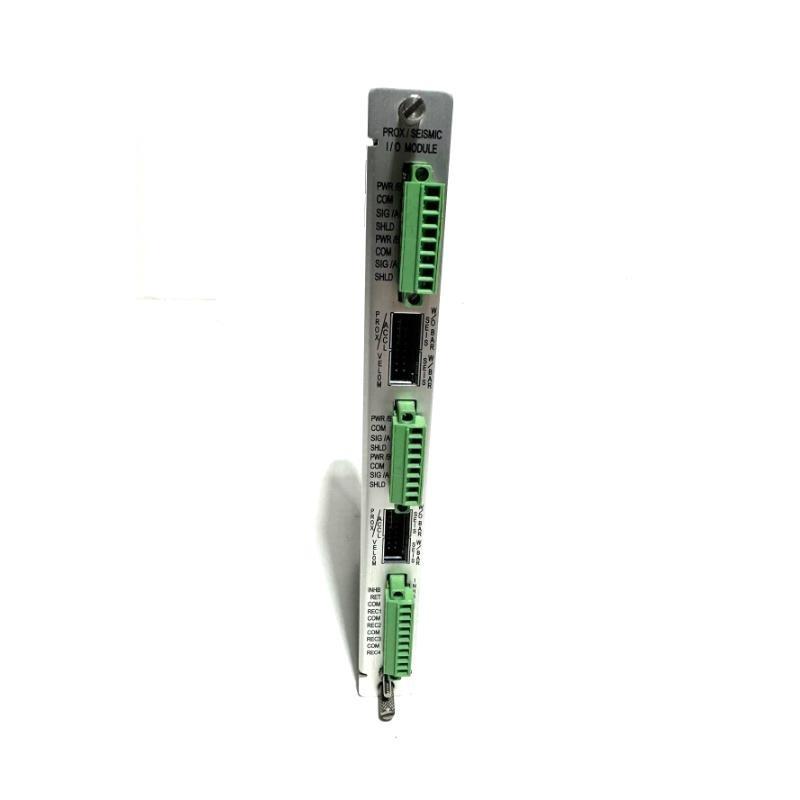

Bently Nevada 3500/42M 140734-02+128229-01 3500 Series Proximitor Seismic Monitor Fast Shipping!

Brand：Bently Nevada

Item No.：3500/42M 140734-02+128229-01

Product Type：Proximitor Seismic Monitor

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original source, data support test content, efficient after-sales processing

Regular models are in stock for a long time, inventory is stable, welcome to inquire about prices!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of transducer inputs does the 3500/42M support?
It supports proximity probes, velocity transducers, accelerometers, and seismic sensors.

Which machine parameters can it monitor simultaneously?
It can monitor radial vibration, thrust position, eccentricity, differential expansion, shaft absolute vibration, acceleration, velocity, and REBAM.

How are the channels configured?
Channels are programmed in pairs (e.g., channels 1 & 2 as one pair, 3 & 4 as another), with each pair performing the same or different monitoring functions.

What output formats are available?
Buffered transducer outputs (BNC connectors on the front panel) and 4–20 mA recorder outputs are available.

What is the operating temperature range?
Internal/External Termination I/O Modules: -30°C to +65°C; Internal Barrier I/O Modules: 0°C to +65°C.

What is the power consumption of the device?
Typical power consumption is 7.7 watts.

What certifications does the 3500/42M have?
It meets FCC, CE, RoHS, ABS, and DNV GL certifications, and has CSA-NRTL/C, ATEX, and IECEx hazardous area approvals.

What are the dimensions and weight of the device?
Dimensions are 241.3 x 24.4 x 241.8 mm, and weight is 0.91 kg.
