Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

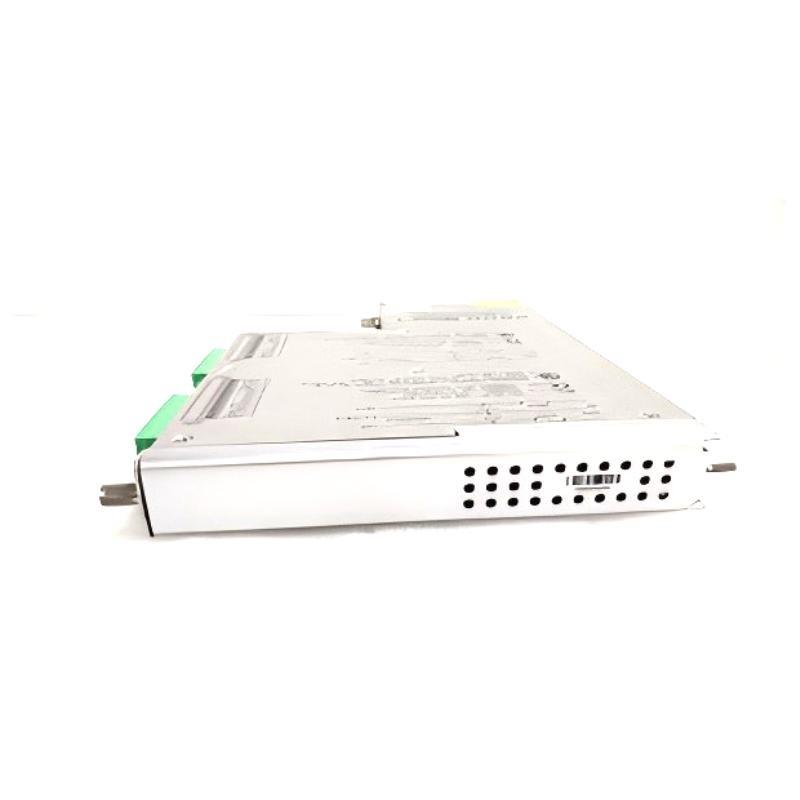

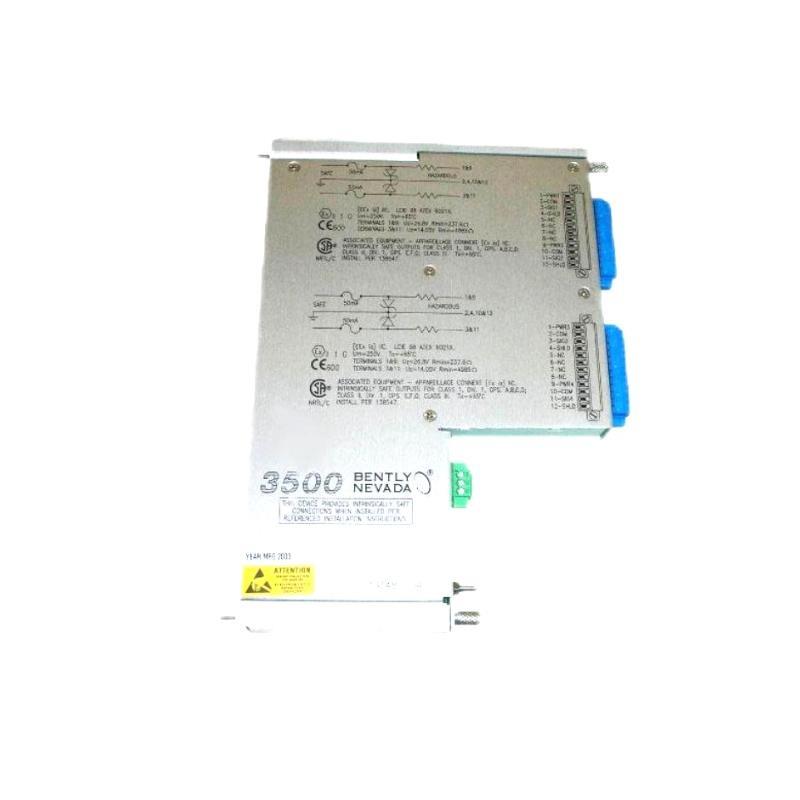

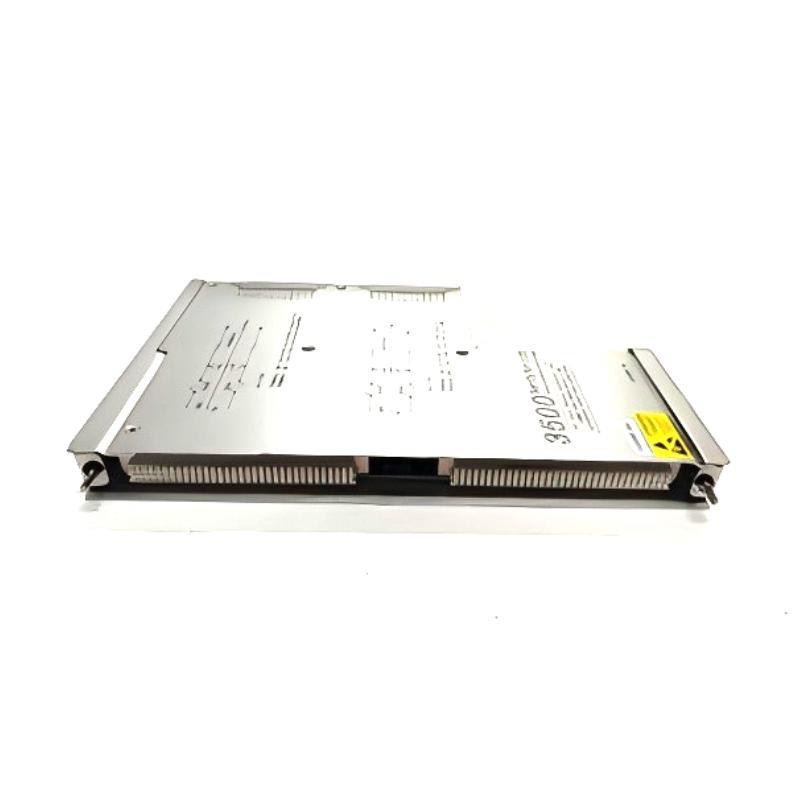

Bently Nevada 3500/40M 135489-04 3500 System Proximitor I/O Module Fast Shipping!

Brand：Bently Nevada

Item No.：3500/40M 135489-04

Product Type：Proximitor I/O Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 163.1 mm

Weight：0.46 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Large stock, diverse series, and adaptable to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main purpose of the 3500/40M 135489-04 module?
It receives and processes proximity probe signals from Bently Nevada sensors, providing vibration, thrust position, eccentricity, and differential expansion monitoring with alarm comparison.

How many channels does this module support?
It supports 4 channels, which can be configured in pairs for different or identical monitoring functions.

What is the input impedance?
The standard I/O input impedance is 10 kΩ.

What is the power consumption?
Typical power consumption is 7.7 W.

What is the operating temperature range?
-30°C to +65°C with standard termination modules, 0°C to +65°C with internal barrier modules.

What are the dimensions and weight of the module?
Dimensions are 241.3 × 24.4 × 163.1 mm, weight is 0.46 kg.

How accurate is the module?
Direct/Gap values ±0.33% typical, ±1% max; Smax ±5% max.

Does this module have hazardous area certifications?
Yes, it is certified for ATEX, IECEx, CSA, and cNRTLus, suitable for Zone 2 and Division 2 environments.
