Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

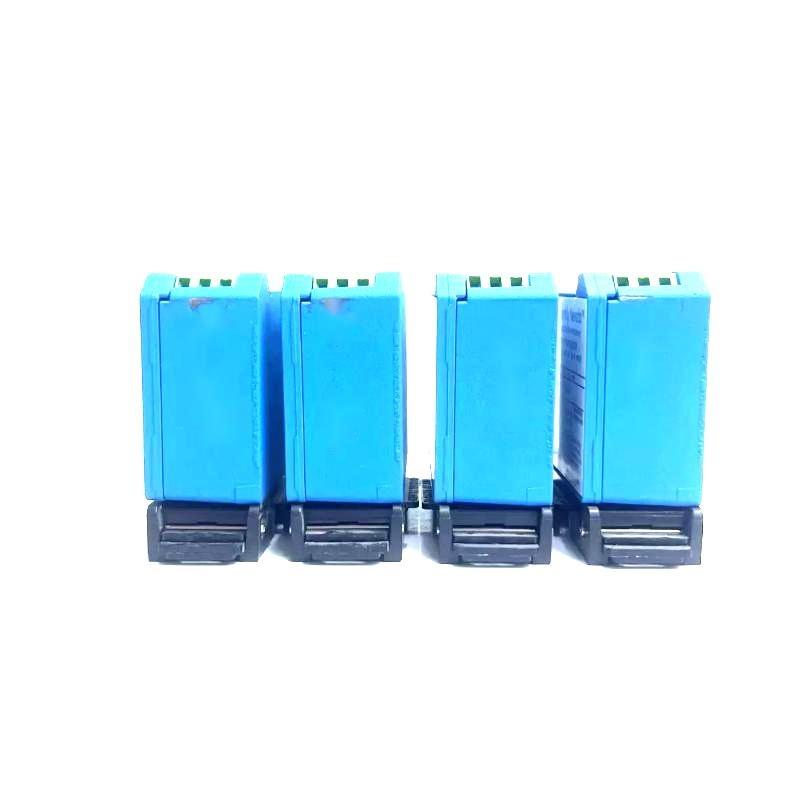

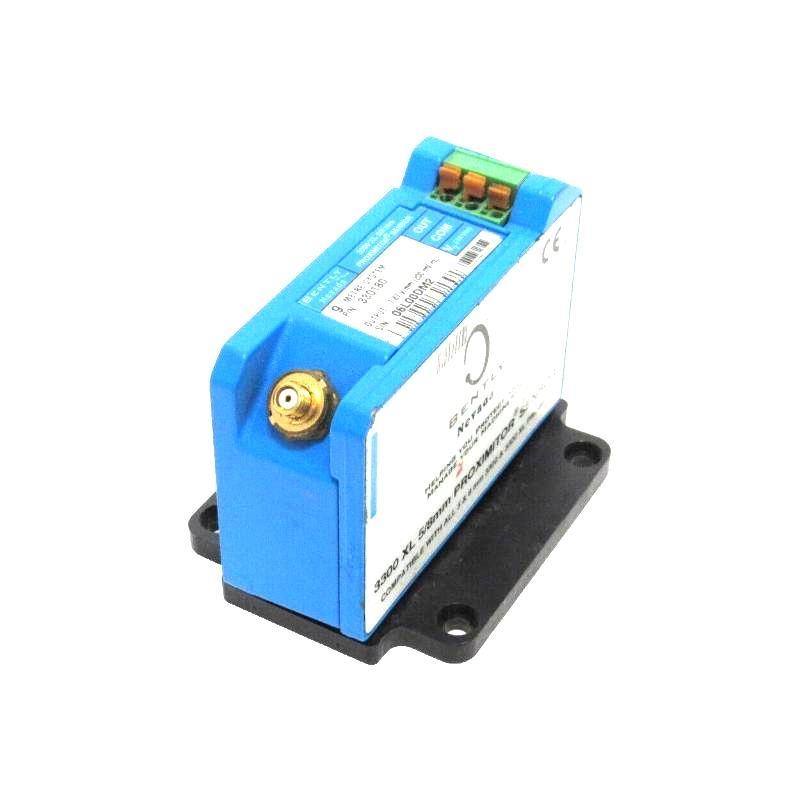

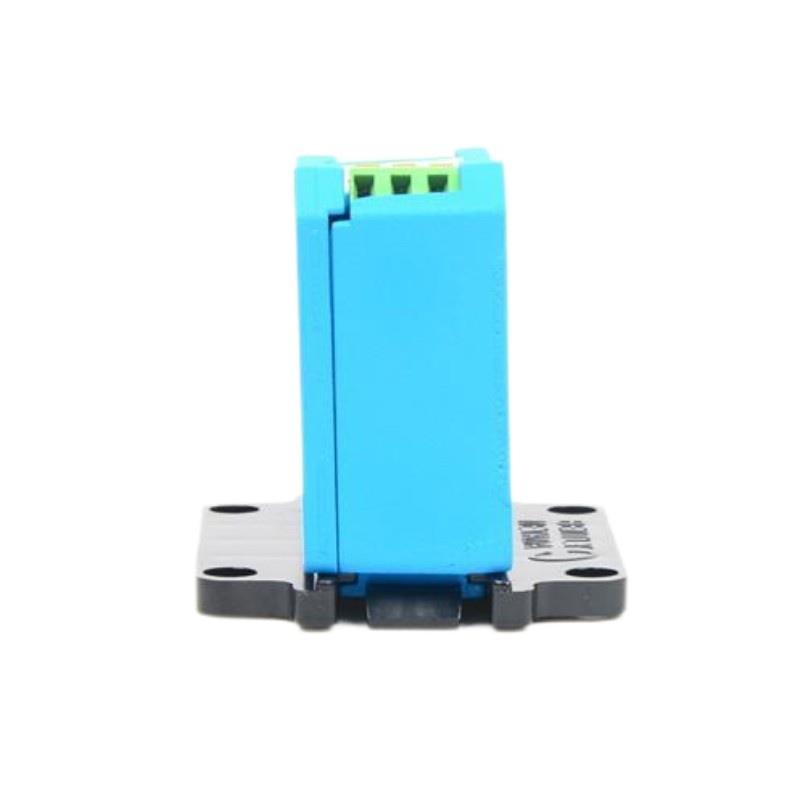

Bently Nevada 330180-X1-IN 145004-137 3300 XL Proximitor Sensor Unbelievable Prices!

Brand：Bently Nevada

Item No.：330180-X1-IN 145004-137

Product Type：3300 XL Proximitor Sensor

Product Origin：USA

Dimensions：81.3 x 35.1 x 63.5 mm

Weight：0.246 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Supply through formal channels, complete and available information, supporting service guarantee

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What are the main applications of the 330180-X1-IN Proximitor Sensor?
It is primarily used for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor speed and phase reference measurements.

Is it compatible with non-XL series components?
Yes, it is electrically and physically compatible with non-XL 3300 series 5 mm and 8 mm components, but performance will be limited to non-XL specifications.

What is the recommended probe gap setting?
The recommended gap is -9 Vdc, approximately 1.27 mm (50 mils).

Can this model operate in high-temperature environments?
Yes, with the Extended Temperature Range (ETR) version, the probe can withstand up to 218°C and the cable up to 260°C.

What is the linear range of the sensor?
The linear range is 2 mm (80 mils), from 0.25 mm to 2.3 mm.

What should be considered during installation?
Use DIN rail or panel mounting, maintain a minimum cable bend radius of 25.4 mm, and keep adequate probe spacing to avoid cross-talk.

Does the product meet international certification requirements?
Yes, it meets API 670, CE, FCC, RoHS, SIL 2/3, and ATEX/IECEx hazardous area certifications.

What is the housing material and protection capability?
The housing is made of A308 aluminum with good electrical isolation and strong RFI immunity, suitable for fiberglass or metal enclosures.
