Bently Nevada 330180-X1-CN 143416-49 3300 XL Proximitor Sensor Fast Shipping!

Bently Nevada 330180-X1-CN 143416-49 3300 XL Proximitor Sensor Fast Shipping!

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 57 left

38%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

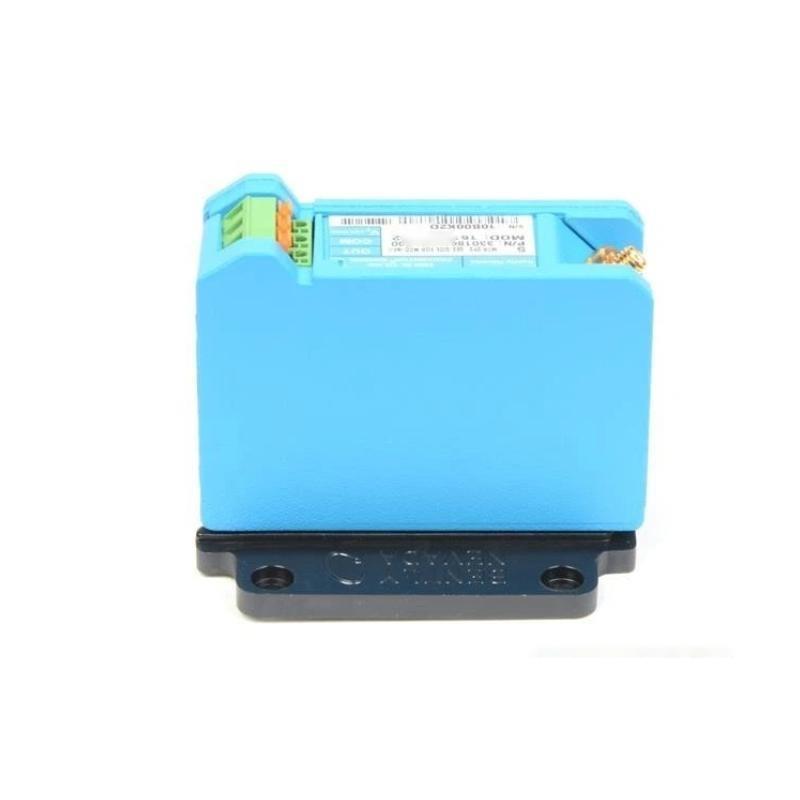

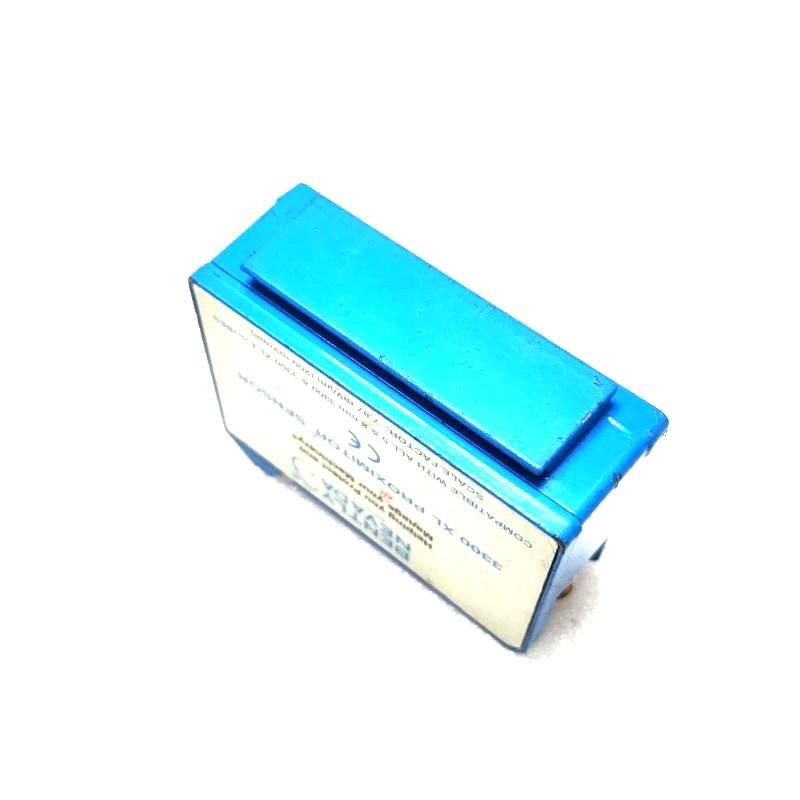

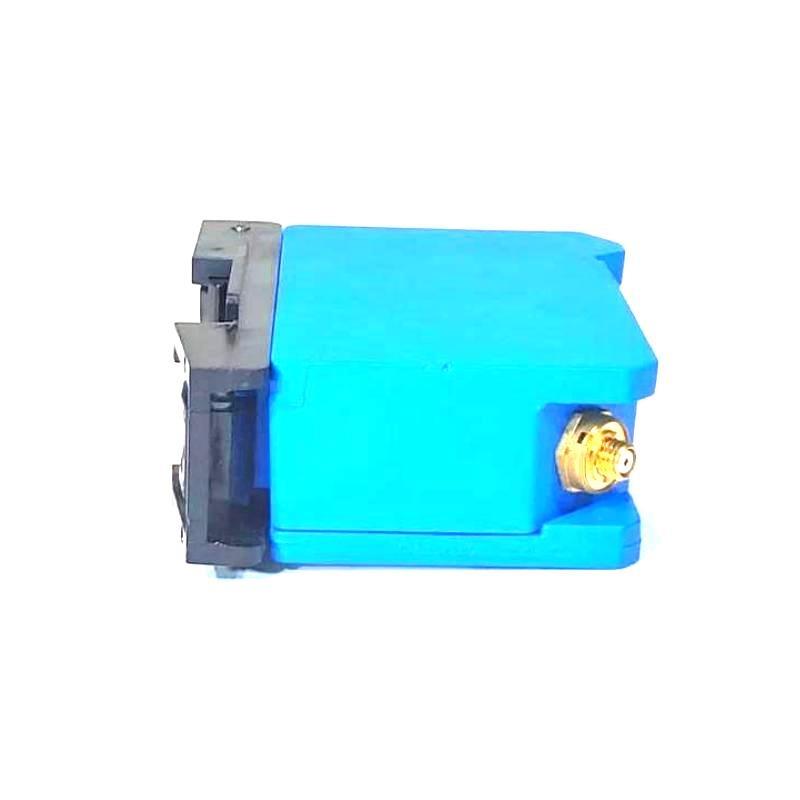

Bently Nevada 330180-X1-CN 143416-49 3300 XL Proximitor Sensor Fast Shipping!

Brand：Bently Nevada

Item No.：330180-X1-CN 143416-49

Product Type：3300 XL Proximitor Sensor

Product Origin：USA

Dimensions：81.3 x 35.1 x 63.5 mm

Weight：0.246 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary function of the 330180-X1-CN Proximitor Sensor?
It converts the signal from the proximity probe into a voltage output proportional to the distance between the probe tip and a conductive target surface, enabling vibration and position measurements.

Is this sensor compatible with both 5 mm and 8 mm probes?
Yes, it accepts both 3300-series 5 mm probes and 3300 XL 8 mm probes with their respective extension cables.

What is the recommended installation gap for radial vibration measurements?
The recommended gap is approximately 1.27 mm (50 mils), corresponding to a -9 Vdc bias.

Can this Proximitor Sensor be used in hazardous areas?
Yes, it has CSA, ATEX, and IECEx approvals for use in various hazardous environments when installed per the specified drawings.

What is the typical operating temperature range for the standard probe and Proximitor Sensor?
Standard probe: -52°C to +177°C; Proximitor Sensor: -52°C to +100°C.

What is the frequency response capability of this sensor?
It supports a frequency response of 0 to 10 kHz with +0 / -3 dB tolerance.

Does the Proximitor Sensor meet API standards?
Yes, it meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.

What is the weight and size of the Proximitor Sensor?
The dimensions are 81.3 x 35.1 x 63.5 mm, and the weight is 0.246 kg.
