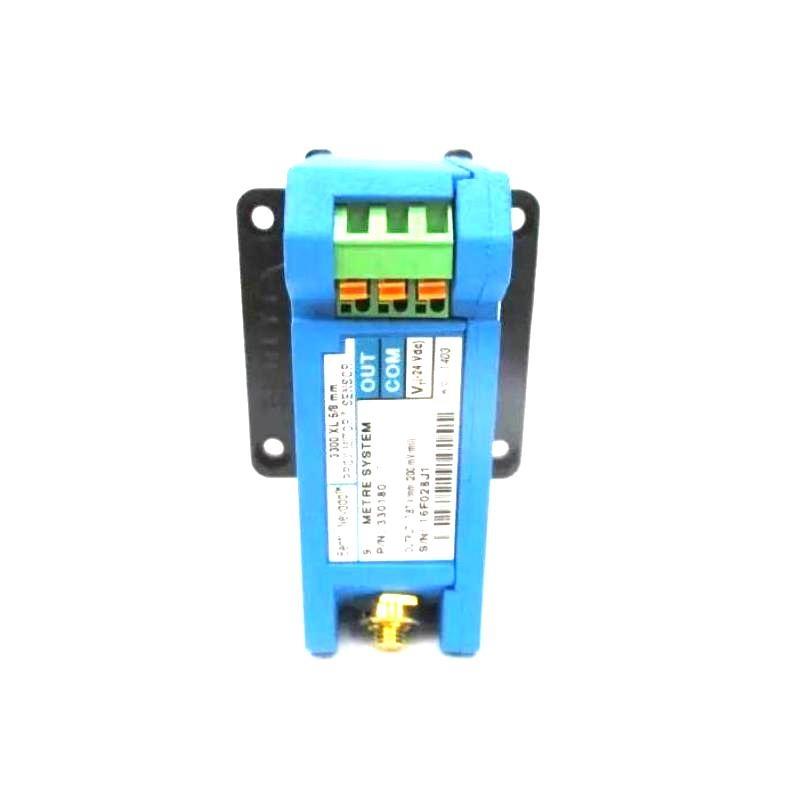

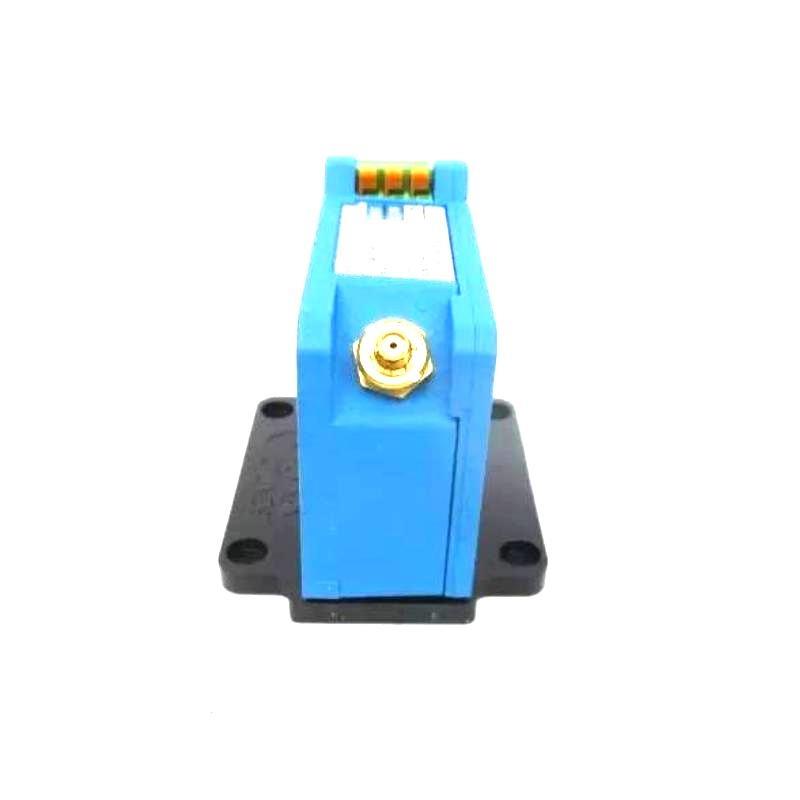

Bently Nevada 330180-X1-05 145004-94 3300 XL Proximitor Sensor 100% New

FAQ

What is the primary function of the 330180-X1-05 Proximitor Sensor?
It measures the distance (static position) and vibration (dynamic motion) between a probe and a conductive target surface.

Can this Proximitor Sensor be used with older 3300 series components?
Yes, it is fully backward-compatible and interchangeable with non-XL 3300 5 mm and 8 mm systems.

What is the recommended gap setting for radial vibration monitoring?
The recommended gap setting is -9 VDC, which corresponds to approximately 1.27 mm (50 mils).

What kind of environmental certifications does the 330180-X1-05 have?
It complies with CSA, ATEX, IECEx, CE, RoHS, and FCC regulations.

Is this sensor suitable for high-temperature environments?
Yes, the ETR version supports up to +218°C for the probe and +260°C for the cable.

What is the typical output scale factor of the system?
The system outputs 7.87 V/mm (200 mV/mil) ±5% to ±6.5%, depending on the cable length.

Can the connectors be tightened without tools?
Yes, the ClickLoc connectors are designed to click when finger-tight and do not require tools.

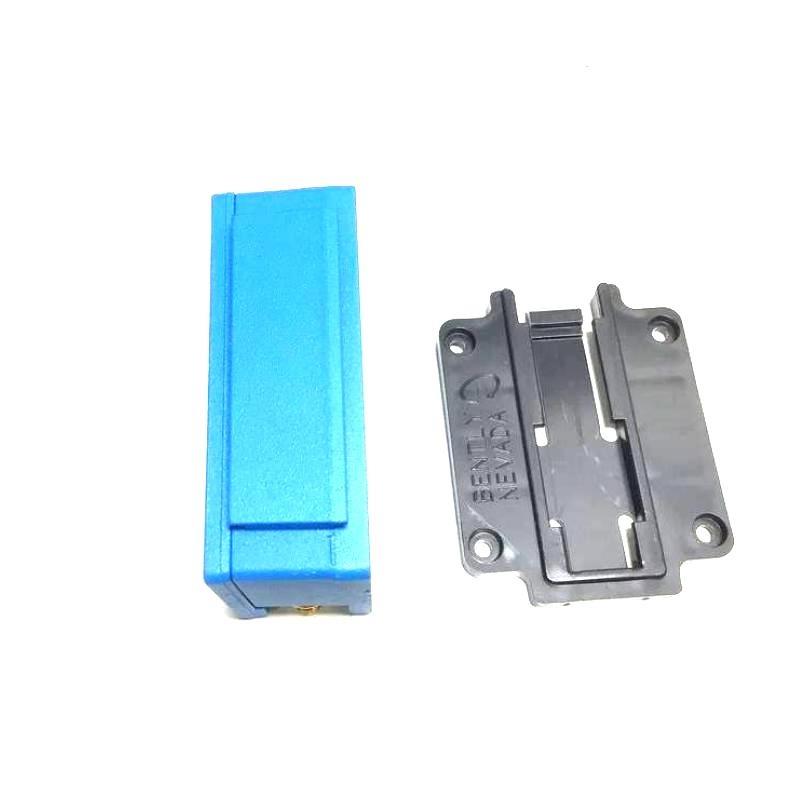

What are the installation mounting options?
The sensor supports both DIN-rail and panel mount configurations with standard 4-hole footprints.
