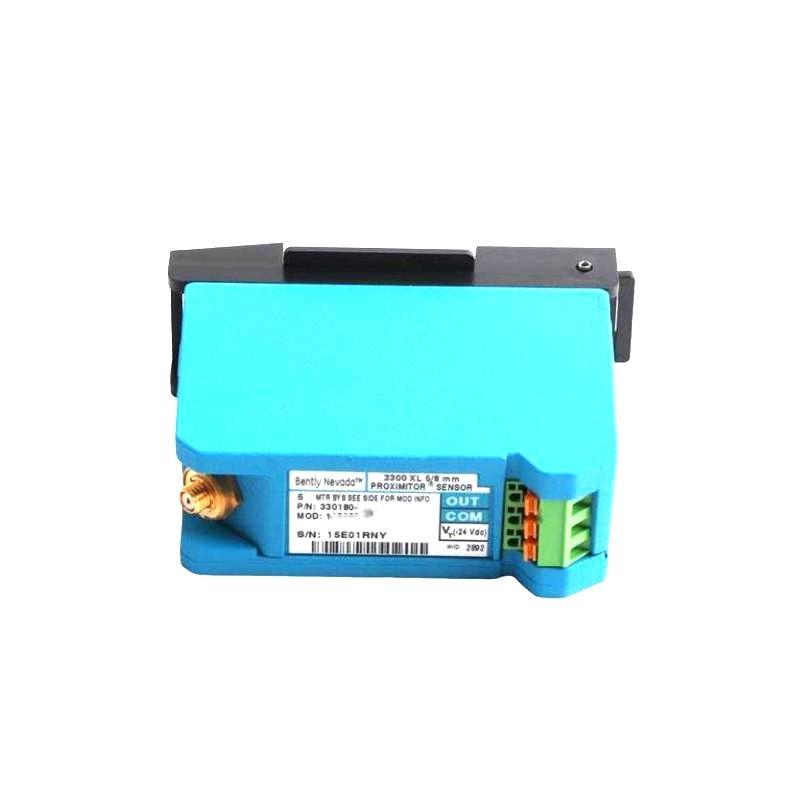

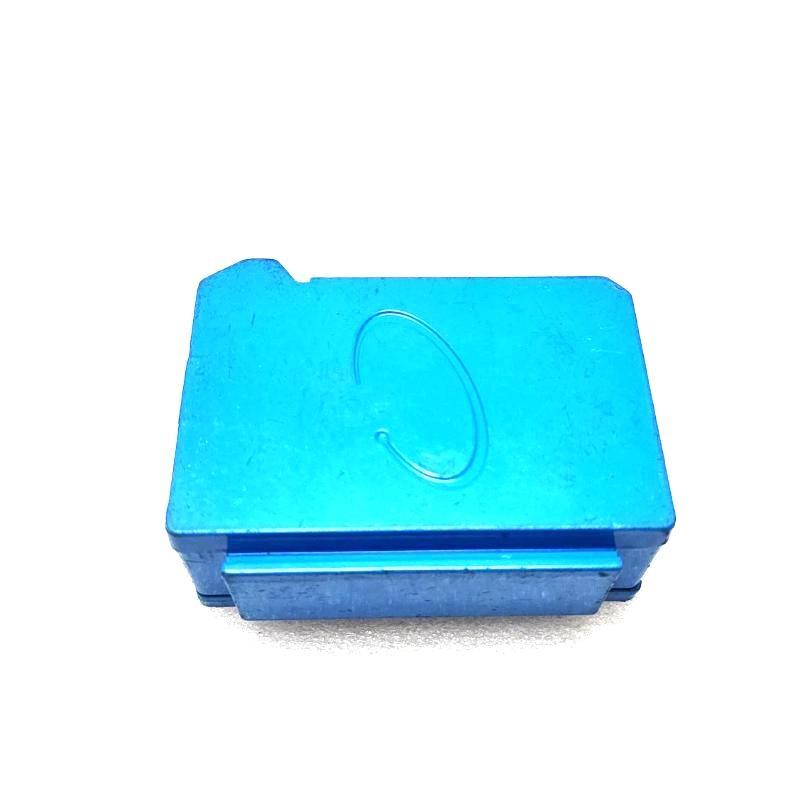

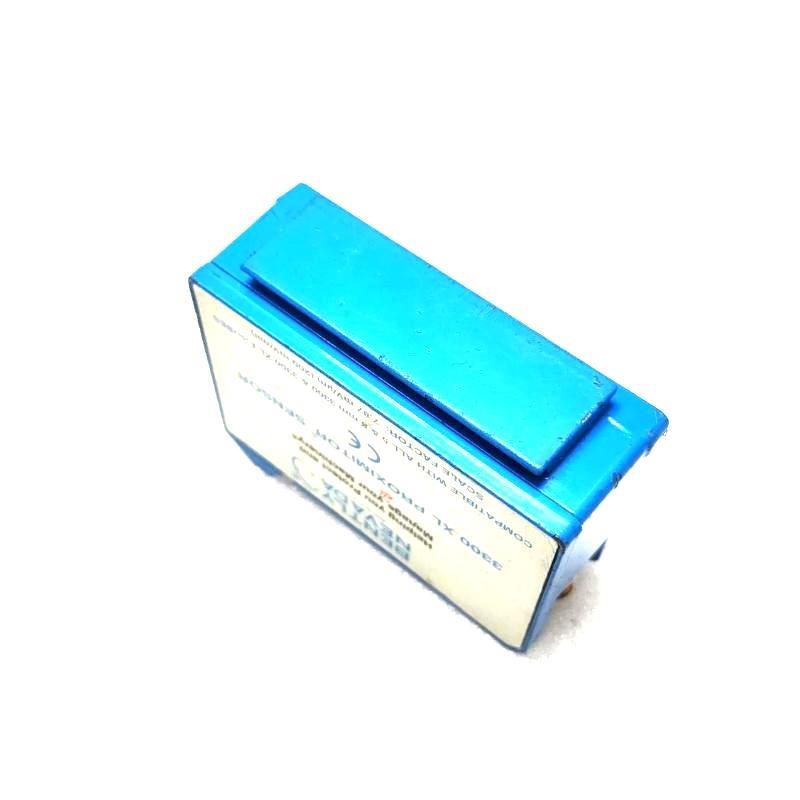

Bently Nevada 330180-X1-05 145004-67 3300 XL Proximitor Sensor 30-Day Returns！

Bently Nevada 330180-X1-05 145004-67 3300 XL Proximitor Sensor 30-Day Returns！

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 84 left

56%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

Bently Nevada 330180-X1-05 145004-67 3300 XL Proximitor Sensor 30-Day Returns！

Brand：Bently Nevada

Item No.：330180-X1-05 145004-67

Product Type：3300 XL Proximitor Sensor

Product Origin：USA

Dimensions：81.3 x 35.1 x 63.5 mm

Weight：0.246 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Supply through formal channels, complete and available information, supporting service guarantee

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

Is the 330180-X1-05 sensor compatible with non-XL probes?
Yes, 3300 XL components are electrically and physically compatible with 3300 non-XL 5 mm and 8 mm components.

What is the maximum field wiring length supported?
Up to 305 meters (1000 feet), but high-frequency signal roll-off must be considered.

Does the sensor meet API 670 requirements?
Yes, it fully complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.

Is it suitable for high-temperature environments?
Yes. Standard probes support up to +177°C; ETR versions support up to +218°C for the tip and +260°C for the cable.

What shaft diameter is recommended to minimize cross-talk?
Minimum is 50.8 mm; recommended is 76.2 mm or greater to maintain cross-talk below 50 mV.

What is the power supply range for the Proximitor Sensor?
-17.5 Vdc to -26 Vdc for non-intrinsically safe use, -23 Vdc to -26 Vdc for use with barriers.

Is field calibration or matching required?
No. All 3300 XL components are factory-calibrated and fully interchangeable.

Are shielded conduits necessary for installation?
No. The improved RFI/EMI immunity meets CE requirements without the need for shielded conduit or metal housings.
