Product Introduction

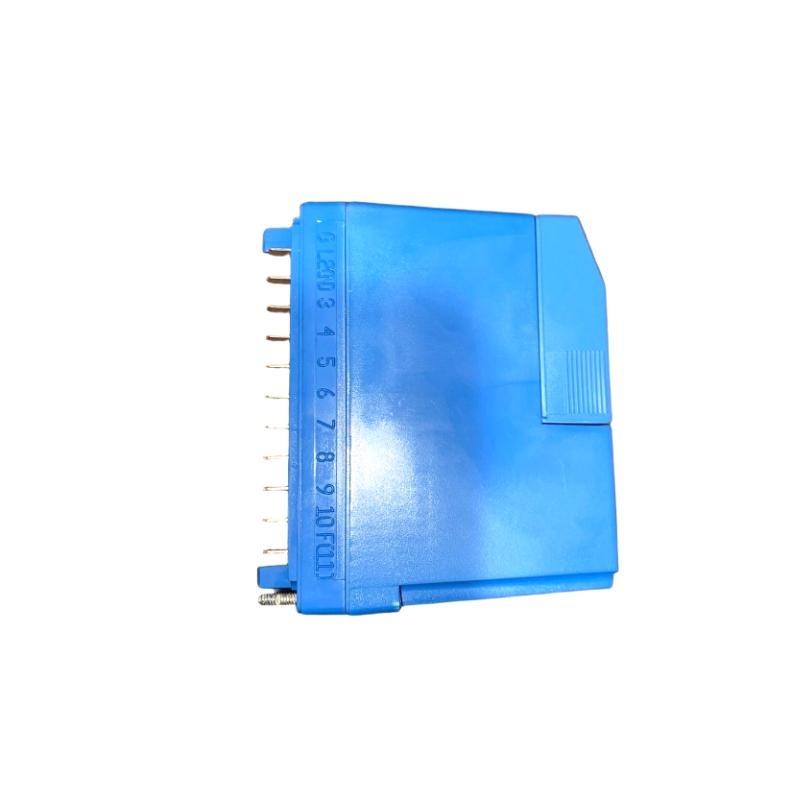

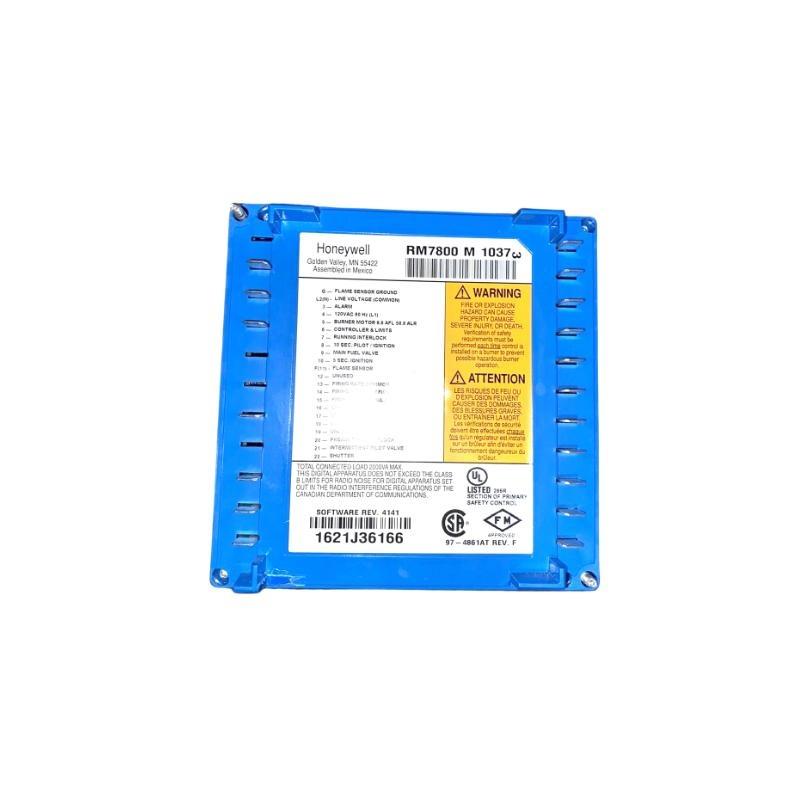

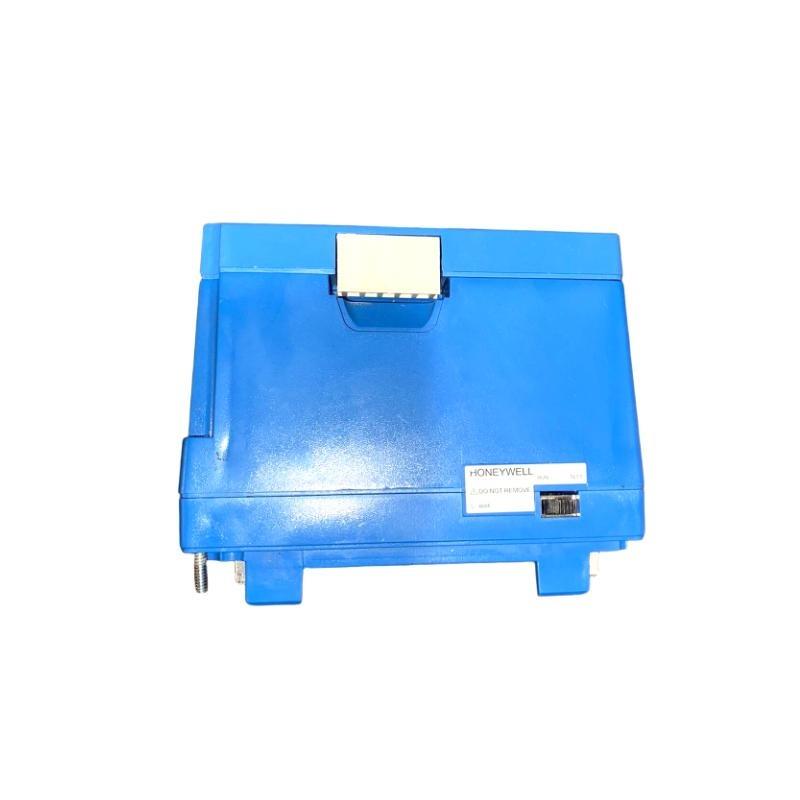

Honeywell RM7800M1037 7800 SERIES Burner Control Trusted supplier

Brand：Honeywell

Item No.：RM7800M1037

Product Type：Burner Control

Product Origin：USA

Dimensions：127 x 127 x 133 mm

Weight：0.83 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What type of applications is the RM7800M1037 designed for?
It is designed for single-burner, automatically fired systems using gas, oil, or combination fuels.

Does the RM7800M1037 support Modbus communication?
Yes, it supports Modbus communication via an optional S7810M1003 module.

What safety features are built into the RM7800M1037?
It includes dynamic self-checks, tamper-resistant logic, interlock verification, and flame signal monitoring.

What is the purpose of the Keyboard Display Module?
The KDM provides sequence status, fault diagnostics, and reset capabilities locally or remotely.

Can the RM7800M1037 store operating history and fault records?
Yes, it has non-volatile memory that logs up to six fault events, operating hours, and cycle counts.

What is the post purge timing capability of the RM7800M1037?
The post purge time is adjustable up to 60 minutes and comes preset at 15 seconds.

Is remote reset functionality available?
Yes, remote reset is supported via an optional S7820A1007 Remote Reset Module.

What is the recommended flame detection method for this model?
It supports rectification, ultraviolet (self-check and non-self-check), and infrared detection using compatible amplifiers and sensors.
