Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

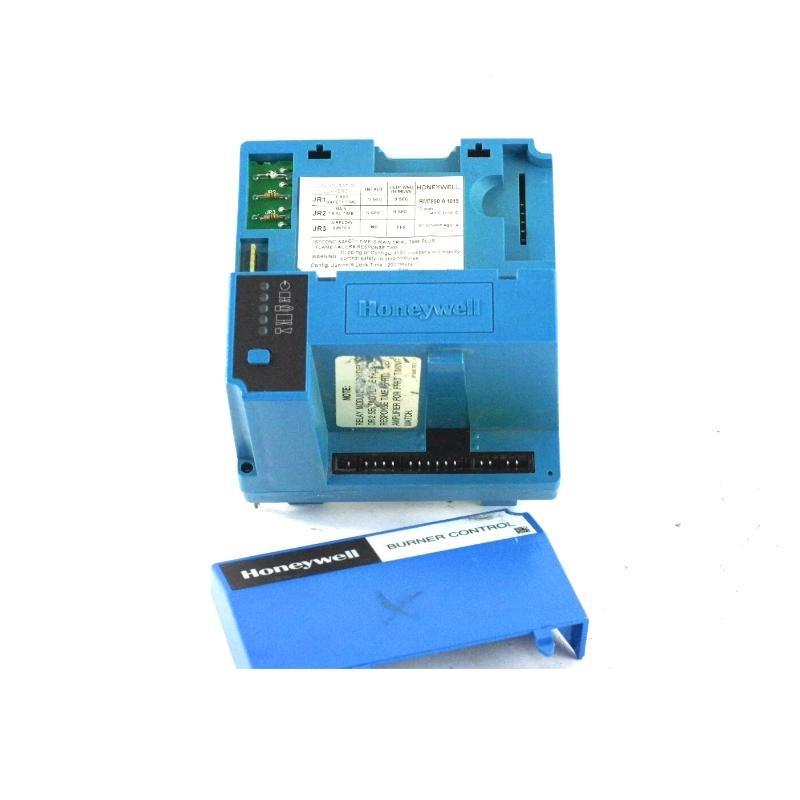

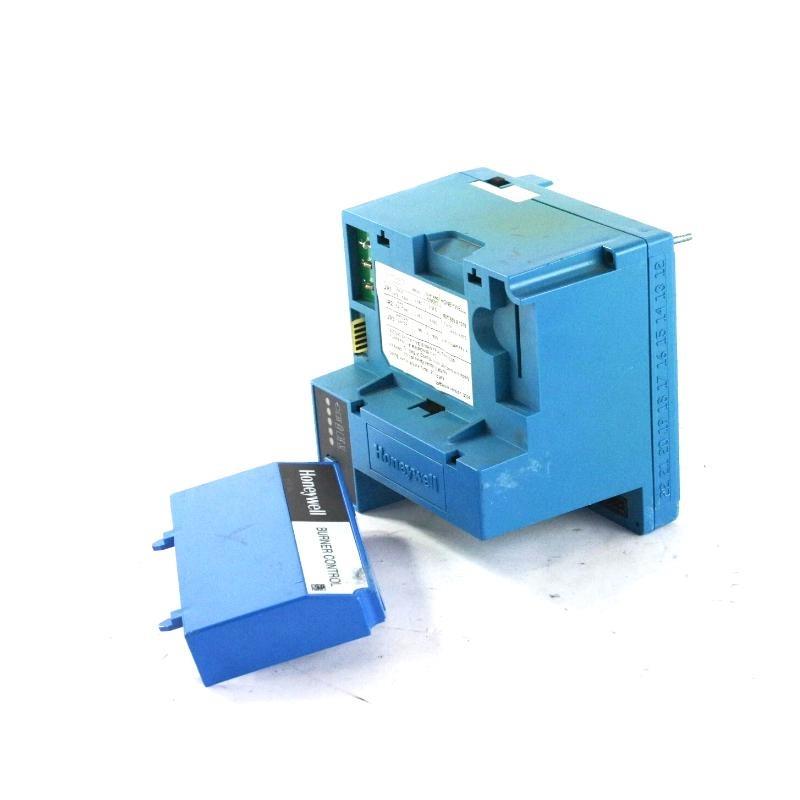

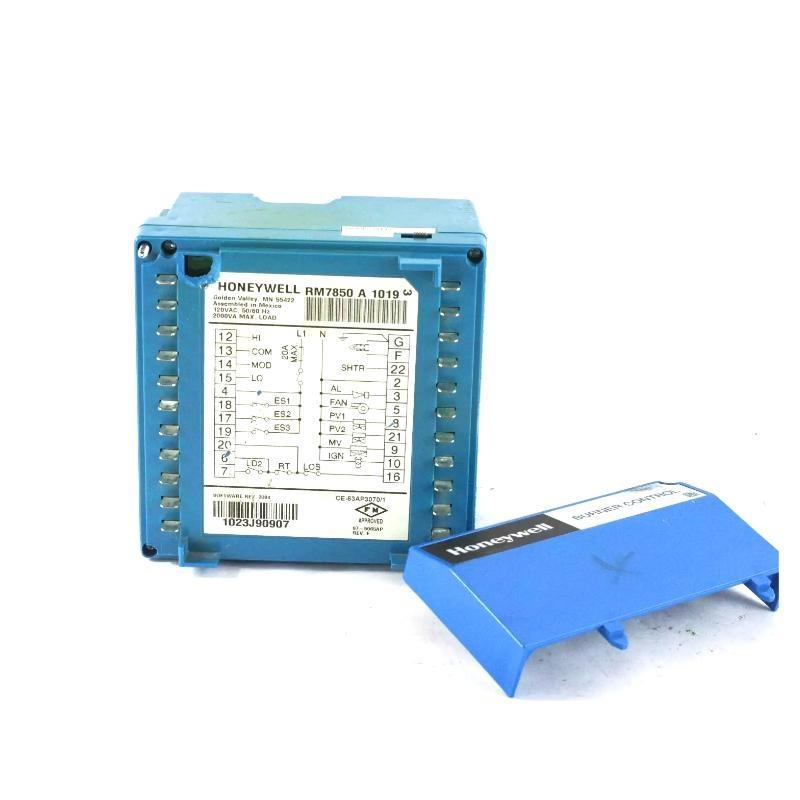

Honeywell RM7850A1019 7800 SERIES Burner Control 12-Month Warranty

Brand：Honeywell

Item No.：RM7850A1019

Product Type：Burner Control

Product Origin：USA

Dimensions：127 x 127 x 133 mm

Weight：0.73 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What type of fuel burners can the RM7850A1019 control?
The RM7850A1019 is designed for use with gas, oil, or combination fuel burners in fully modulating applications.

What safety features does the RM7850A1019 provide?
It includes dynamic self-check logic, interlock monitoring, tamper-resistant timing, and both high and low fire purge switch checks.

How many ignition attempts can the RM7850A1019 perform?
It can be configured for either 1 or 5 ignition attempts depending on the model and system requirements.

Can the RM7850A1019 retain data after power loss?
Yes, it uses non-volatile memory to retain sequence status and fault history after power loss.

Is a display module necessary for operation?
The Keyboard Display Module (KDM) is optional but provides enhanced diagnostics, flame signal strength, and status information.

Can the module be reset remotely?
Yes, remote reset is supported if the system installation meets the required safety standards.

What is the operating temperature range?
The RM7850A1019 operates in environments from -40°C to +60°C.

What mounting base is used with this module?
It mounts on a Q7800A wiring subbase, designed for panel-mounted applications.
