Honeywell 2104B2131 Searchline Excel Medium Range Receiver ATEX Source Trusted supplier

Honeywell 2104B2131 Searchline Excel Medium Range Receiver ATEX Source Trusted supplier

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 76 left

51%

Add to cart

Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

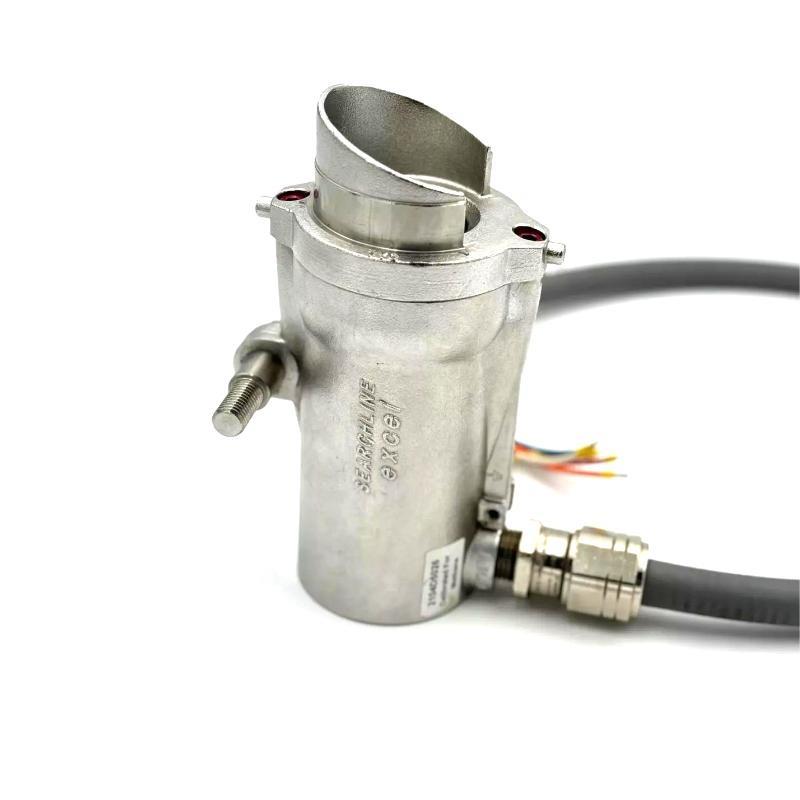

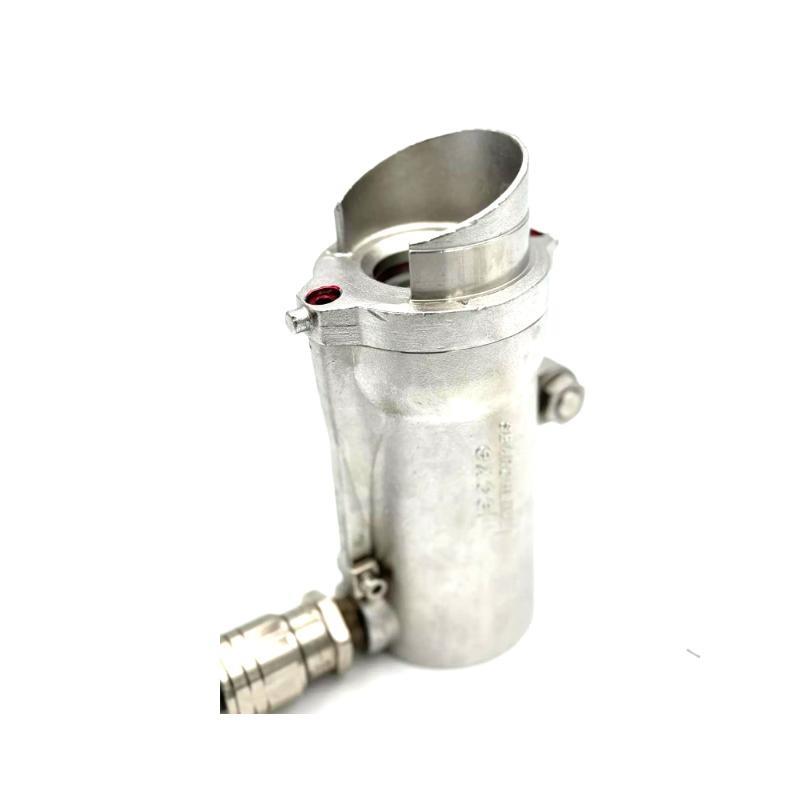

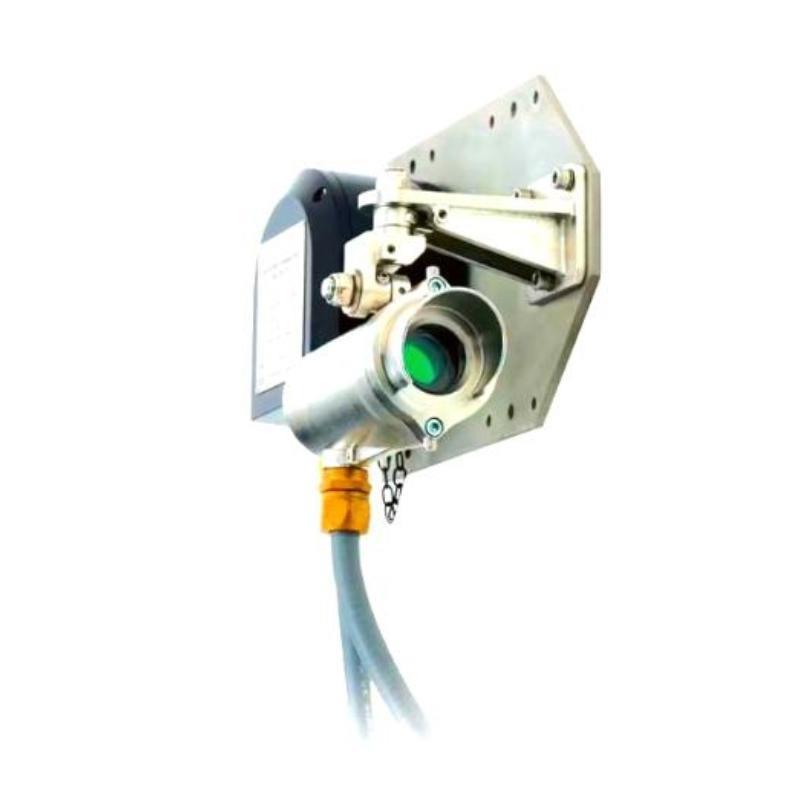

Honeywell 2104B2131 Searchline Excel Medium Range Receiver ATEX Source Trusted supplier

Brand：Honeywell

Item No.：2104B2131

Product Type：Medium Range Receiver ATEX Source

Product Origin：USA

Dimensions： 353 × 417 × 300 mm

Weight： 7 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information available, supporting service guarantee

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the detection range of the 2104B2131 Searchline Excel Receiver?
The medium-range receiver detects hydrocarbon gases over a path length of 40 to 120 meters.

What type of signal output does the receiver provide?
It provides a 4–20 mA analog output and RS485 communication for system integration.

Can the unit operate in extremely cold environments?
Yes, it is equipped with intelligent heated optics and operates reliably down to –40 °C.

What is the primary material used in the housing of the device?
The housing is made of corrosion-resistant 316 stainless steel, suitable for harsh environments.

Is the device certified for use in hazardous locations?
Yes, it has ATEX, IECEx, UL, and CSA/FM certifications for hazardous area applications.

How is alignment between transmitter and receiver achieved?
Alignment is performed using telescopic sighting and fine adjustment screws, aided by the SHC1 interrogator.

What is the output signal range in terms of gas concentration?
The output is scaled from 0 to 5 LEL·m, representing the concentration of flammable hydrocarbons along the beam.

Is the infrared beam emitted by the transmitter visible or harmful?
The IR beam is invisible and classified as eye-safe.
