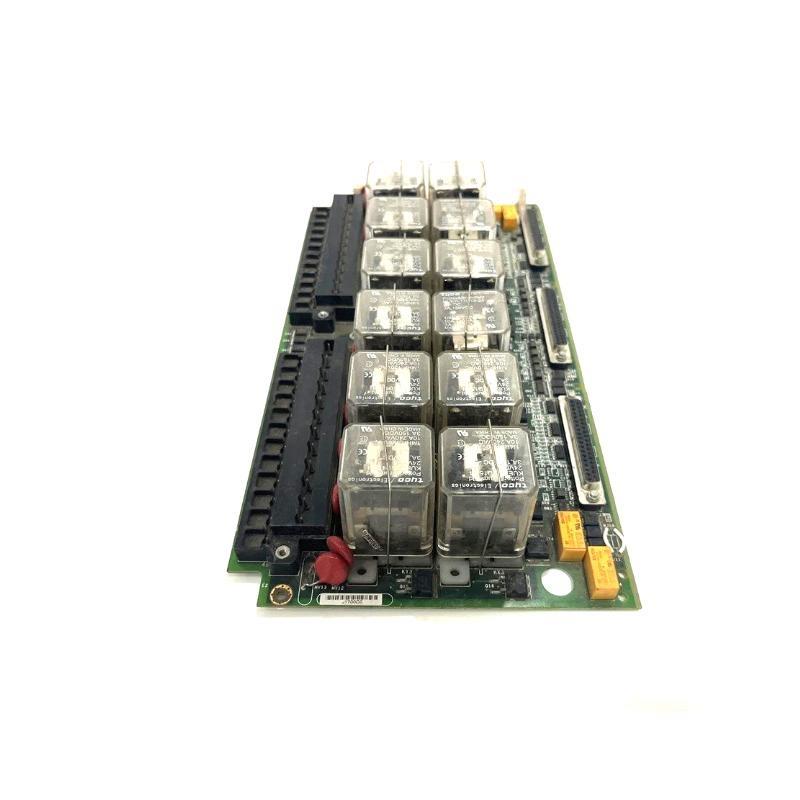

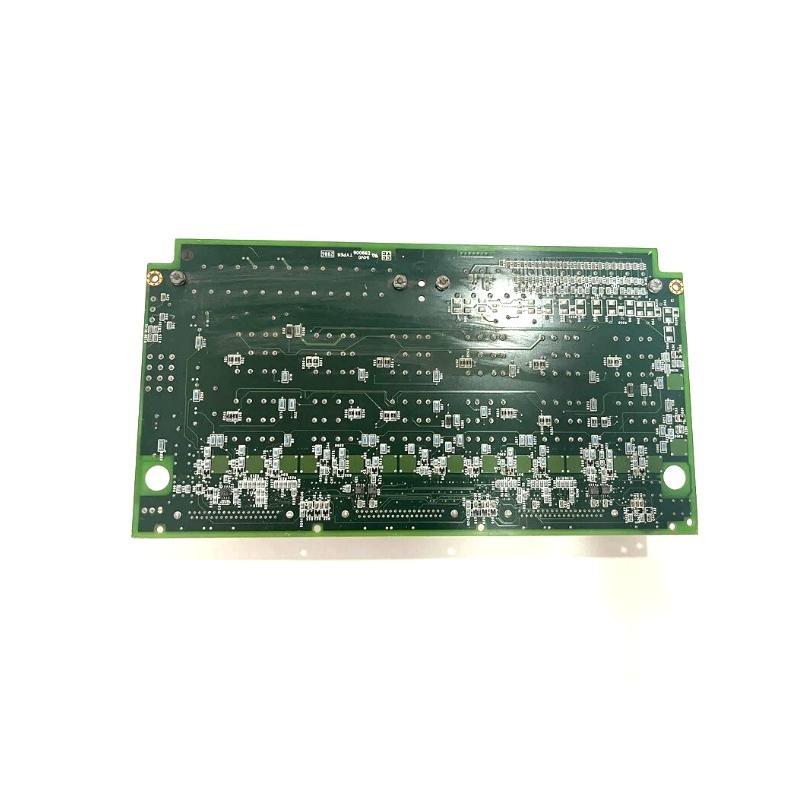

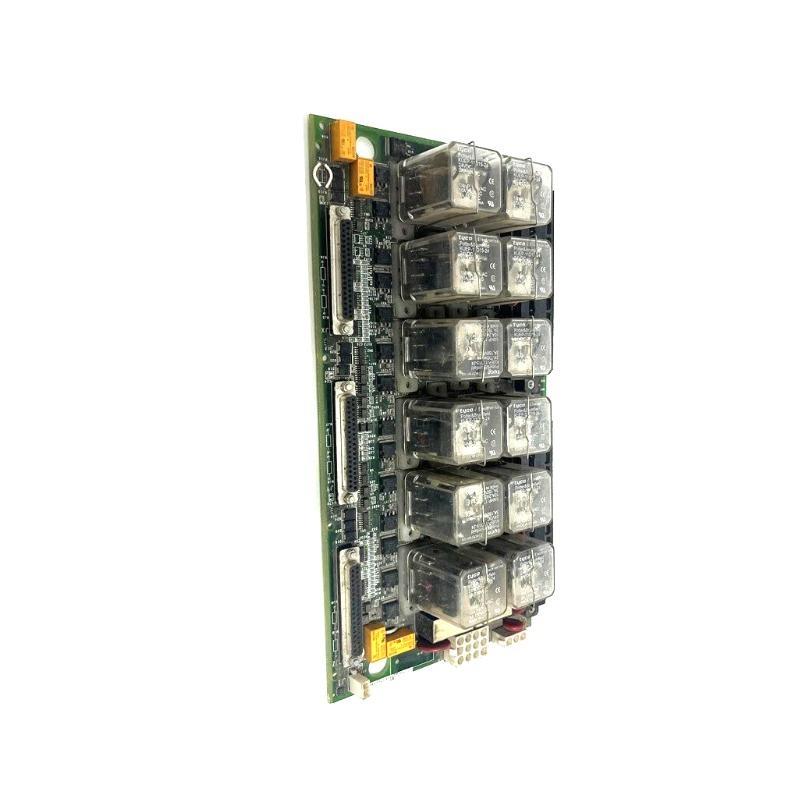

Name: GE IS200TREGH1BDB Mark VI Series Turbine Emergency Trip Terminal Board Unbelievable Prices!
Brand: GE Fanuc PLC
SKU: 5153
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IS200TREGH1BDB Mark VI Series Turbine Emergency Trip Terminal Board Unbelievable Prices!

Brand：GE Fanuc

Item No.：IS200TREGH1BDB

Product Type：Turbine Emergency Trip Terminal Board

Product Origin：USA

Dimensions：178 x 330.2 x 43 mm

Weight：0.907 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for cooperative testing, and fast response to after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary function of the IS200TREGH1BDB module?
The IS200TREGH1BDB provides terminal connections and DC power distribution for up to three emergency trip solenoids.

Which system is this module compatible with?
This module is part of the GE Mark VI control system, used in turbine control and safety shutdown applications.

How does the TREG board work with the TRPG board?
The TREG board supplies positive DC power, while the TRPG board supplies the negative side to complete the solenoid power circuit.

How many trip solenoids can be supported by this module?
The module supports a maximum of three trip solenoids connected between the TREG and TRPG terminal boards.

How does the controller test trip solenoid functionality?
The controller performs online tests using PTR relays or protection module-controlled ETR relays, verifying operation via contact inputs.

How does the relay voting mechanism operate?
Nine of the twelve relays are grouped into three sets of three, forming a triple-redundant voting logic to ensure reliable solenoid activation.

Does the module support offline overspeed tests?
Yes, the system can simulate overspeed conditions via software to validate trip responses under emergency scenarios.

What are the dimensions and weight of the module?
The module measures 178 x 330.2 x 43 mm and weighs 0.907 kg.
