Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

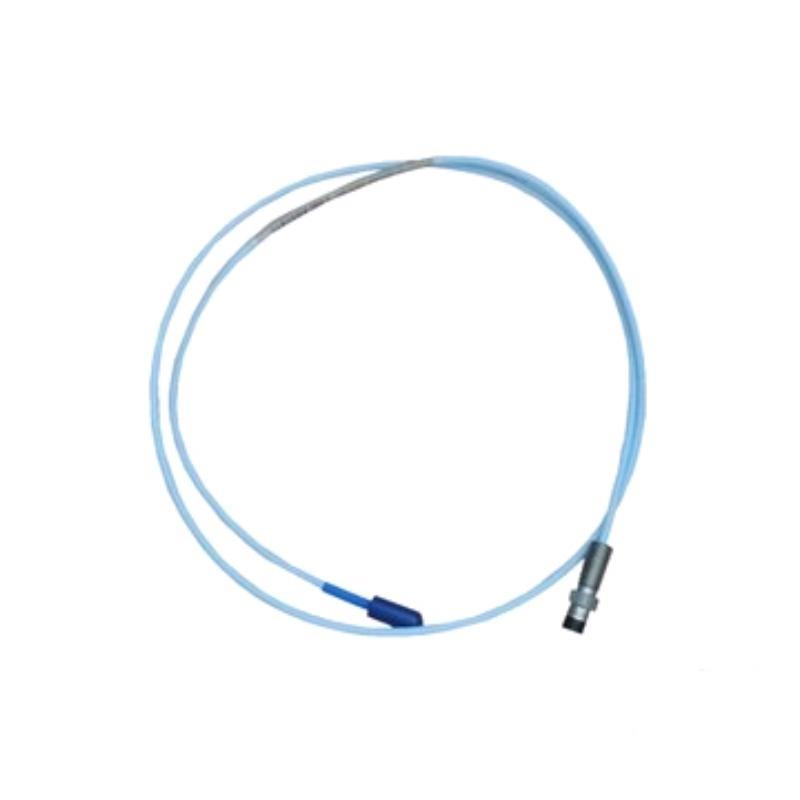

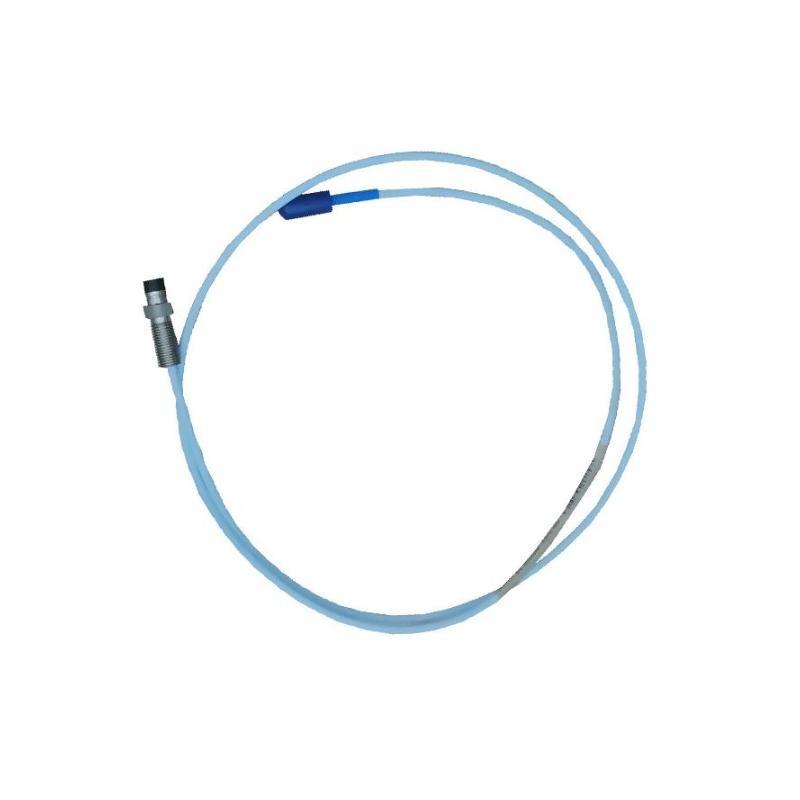

Bently Nevada 330171-12-41-10-02-05 3300 Series 5 mm Eddy-Current Proximity Probe New In Stock

Brand：Bently Nevada

Item No.：330171-12-41-10-02-05

Product Type：3300 Series 5 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 5 mm; probe body length 41 mm; unthreaded length 12 mm; cable length 1.0 m

Weight：0.38 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information available, supporting service guarantee

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main application of the 330171-12-41-10-02-05 proximity probe?
It is used to measure shaft vibration, axial position, and displacement in rotating machinery using eddy-current sensing technology.

What does the “330171” series represent?
It indicates a 3300 Series 5 mm eddy-current proximity probe designed for industrial condition monitoring systems.

What does the “12-41-10-02-05” configuration mean?
It specifies a 12 mm unthreaded length, a 41 mm probe body length, a 1.0 m integral cable, a ClickLoc connector, and hazardous area approvals.

Which monitoring systems are compatible with this probe?
The probe is compatible with Bently Nevada 3300 XL Proximitor Sensors and associated monitoring modules.

Is this probe suitable for harsh or regulated industrial environments?
Yes, the stainless-steel housing and multiple agency approvals make it suitable for harsh locations and hazardous area installations.

What type of output does this probe provide?
It provides an analog voltage output proportional to the measured shaft displacement or vibration.

What is the operating temperature range of this probe?
The probe operates reliably from –35 °C to +177 °C.

What are the physical dimensions and weight of the probe?
The probe has a 5 mm tip diameter, a 41 mm body length, a 12 mm unthreaded section, a 1.0 m cable, and weighs approximately 0.38 kg.
