Product Introduction

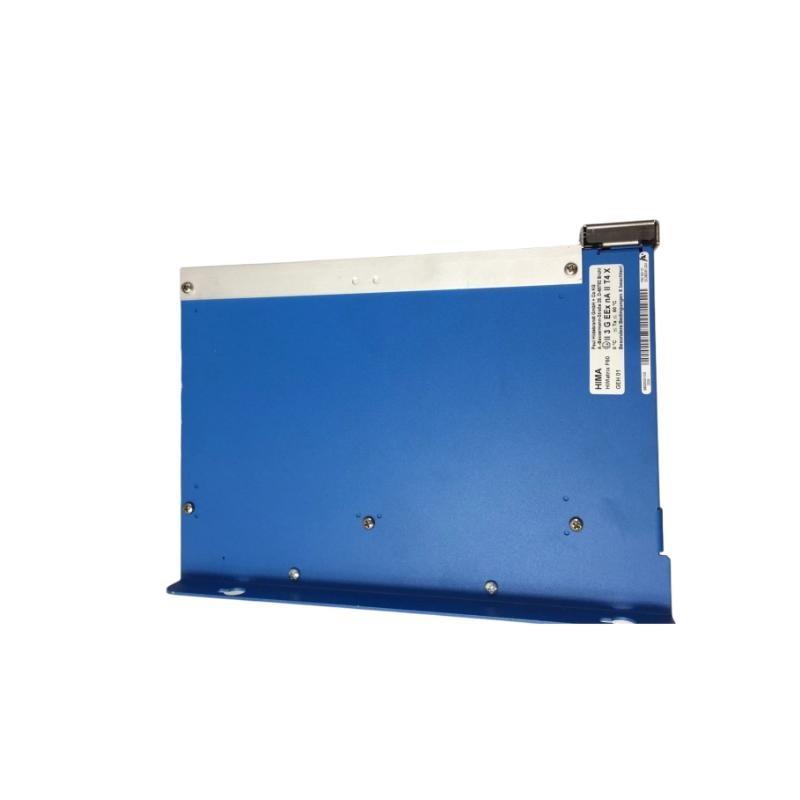

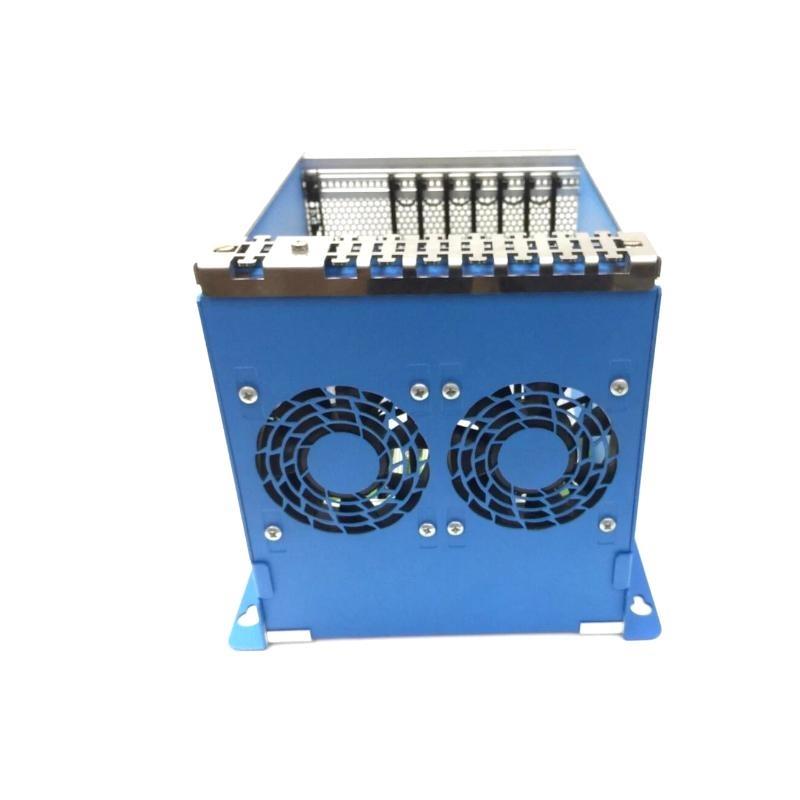

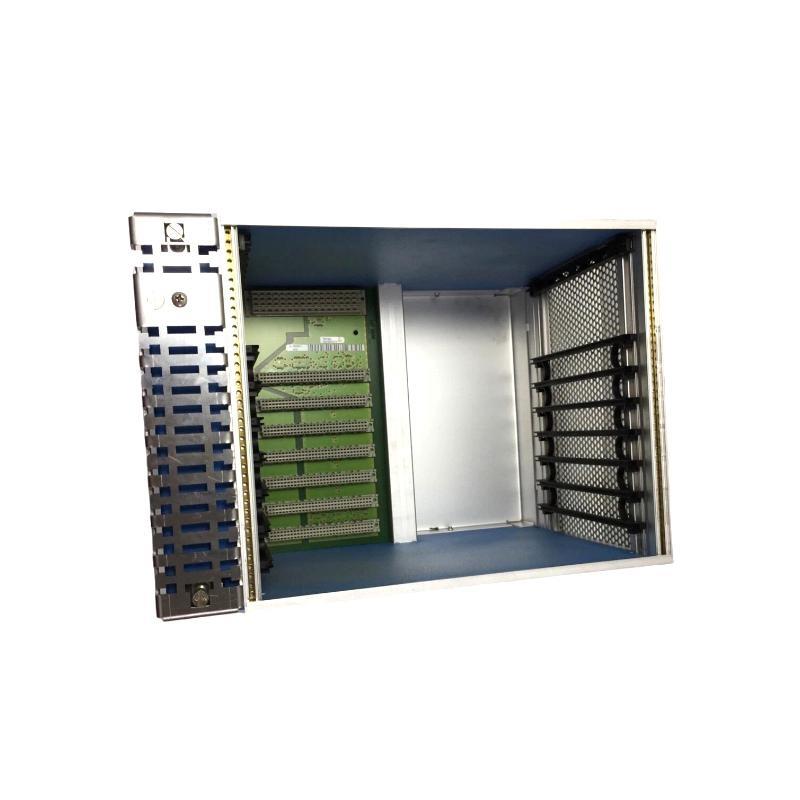

HIMA HIMatrix F60 GEH 01 Safety-Related Controller Subrack Fast Shipping!

Brand：HIMA

Item No.：F60 GEH 01

Product Type：Subrack

Product Origin：Germany

Dimensions：259 x 310 x 228 mm

Weight：0.5 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information can be checked, and supporting service guarantee

The inventory covers multiple brands and series, and supports fast delivery. Welcome to call for negotiation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main purpose of the GEH 01 subrack?
The GEH 01 subrack is designed for installing HIMatrix F60 modular safety controller systems and serves as a structural component of the system.

Does the GEH 01 itself perform any safety function?
No, the GEH 01 itself does not perform any safety function. It is a platform for mounting safety-related modules.

How many modules can be installed in the GEH 01?
The GEH 01 supports up to 8 modules: 1 for the power supply, 1 for the central processor, and 6 I/O modules.

In what environmental conditions can the GEH 01 operate?
It operates in temperatures from 0 to +60°C, with humidity less than 95% (non-condensing), and protection class IP20, suitable for industrial control environments.

What are the power supply requirements for the GEH 01?
The GEH 01 requires a 24 VDC power supply, preferably of SELV or PELV type.

Is the GEH 01 suitable for installation in hazardous area Zone 2?
Yes, the GEH 01 can be installed in Zone 2, provided that specific installation conditions are met and the enclosure meets at least IP54 protection.

What is the recommended maintenance interval for the fans?
For temperatures below 40°C, fans should be replaced every 5 years. For higher temperatures, every 3 years is recommended.

What is the material and weight of the GEH 01?
The subrack is made of anodized aluminum and weighs approximately 1.5 kg.
