Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

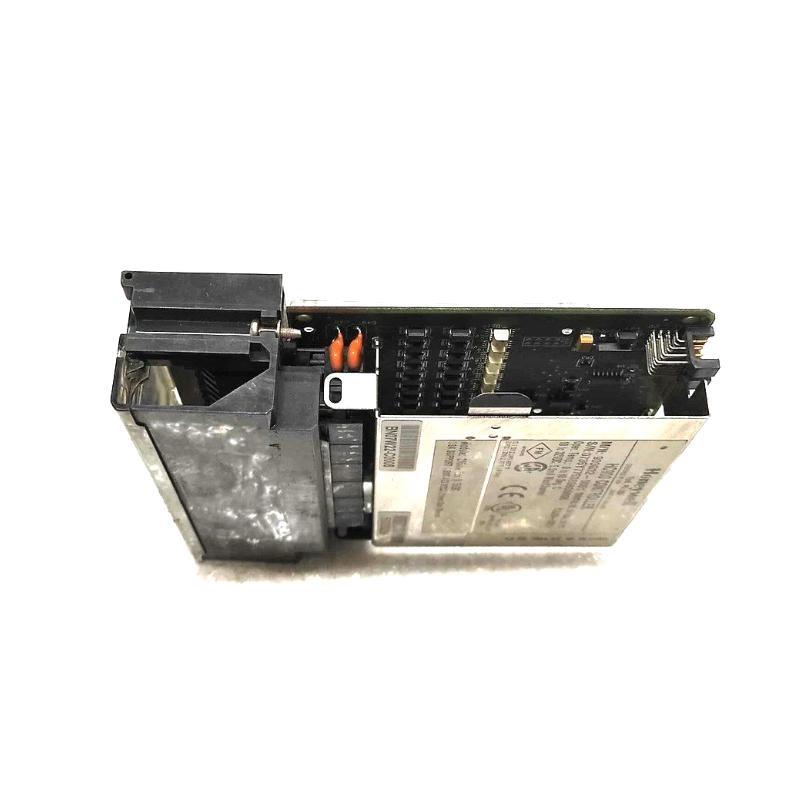

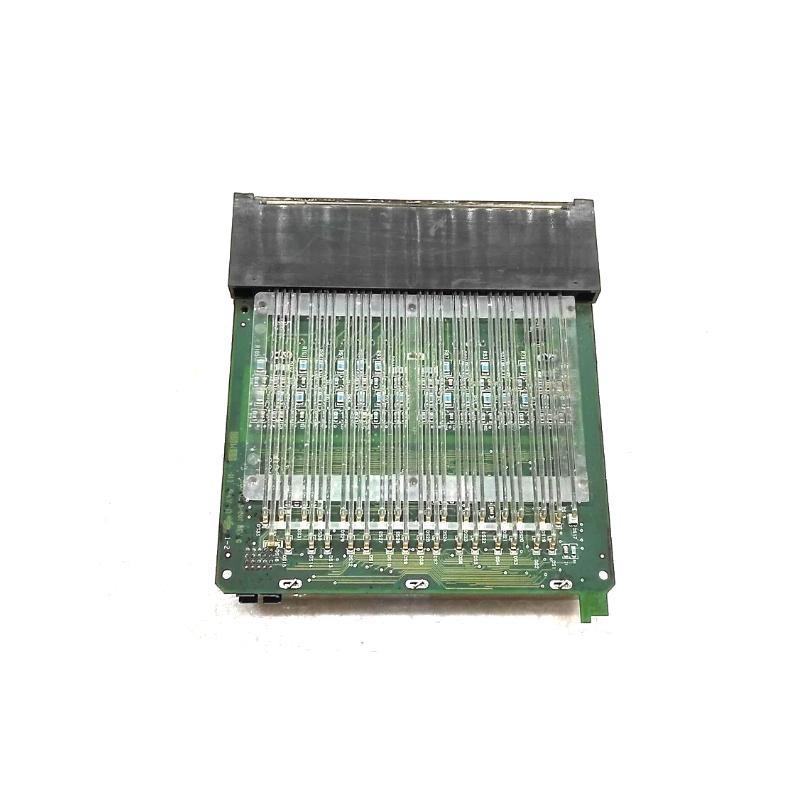

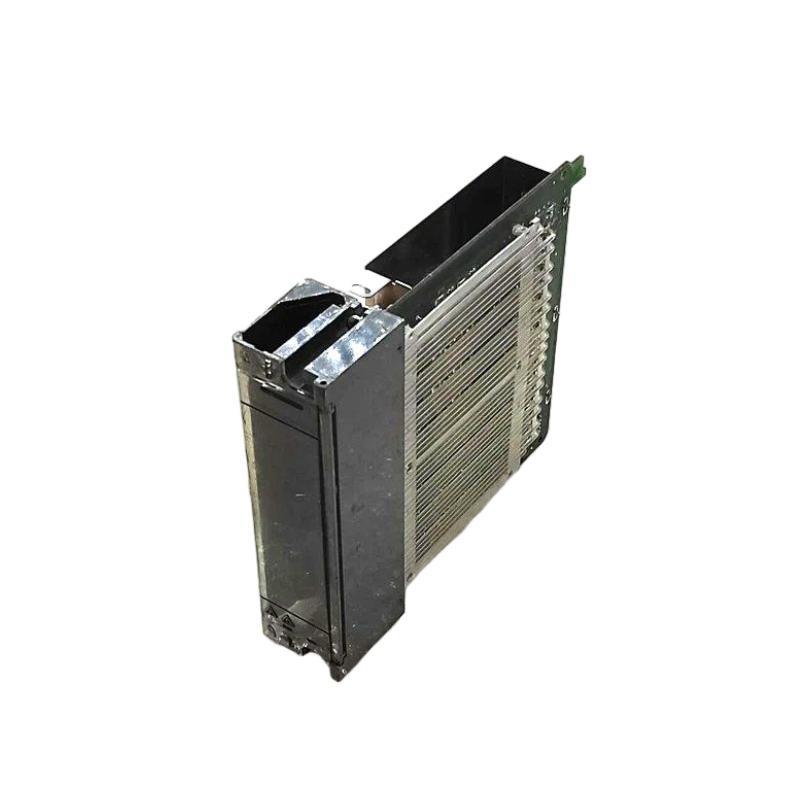

Honeywell 900G32-0301 ControlEdge 900 Digital Input Module 30-Day Returns！

Brand：Honeywell

Item No.：900G32-0301

Product Type：Digital Input Module

Product Origin：USA

Dimensions：137 x 35.6 x 151.7 mm

Weight：0.175 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

How many digital input channels does the module support?
The module supports 32 sinking-type digital input channels, divided into two groups of 16.

What is the input voltage range?
The input voltage range is 10 VDC to 32 VDC, with a peak voltage of 32 VDC.

How is the input channel isolation configured?
The inputs are divided into two isolated groups of 16, isolated from each other and from the logic side up to 30 VDC.

What are the ON and OFF voltage thresholds?
ON voltage is ≥9.5VDC; OFF voltage is ≤3.5VDC.

What is the response time?
The maximum OFF-to-ON response time is 5 ms, and the maximum ON-to-OFF response time is also 5 ms.

What is the module’s power consumption?
Power consumption is up to 215 mA at 5V, with no current drawn on the 24V side.

What are the dimensions and weight of the module?
Dimensions are 137 × 35.6 × 151.7 mm, and the weight is 0.175 kg.

What are the input impedance and current characteristics?
Input impedance is nominally 6.9 kΩ, with an input current of about 1.7 mA at 12VDC and 3.5 mA at 24VDC.
