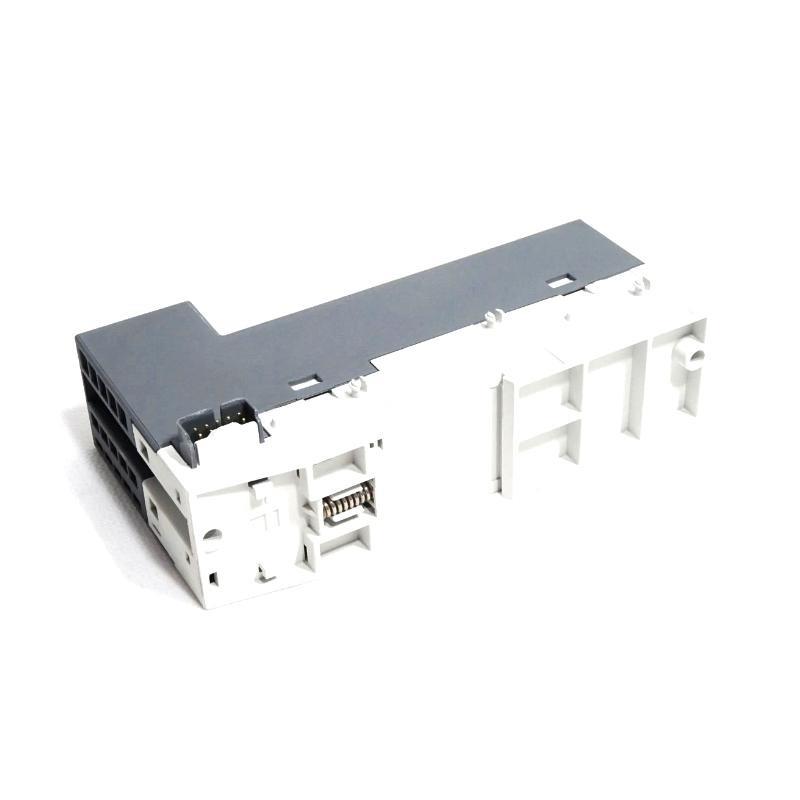

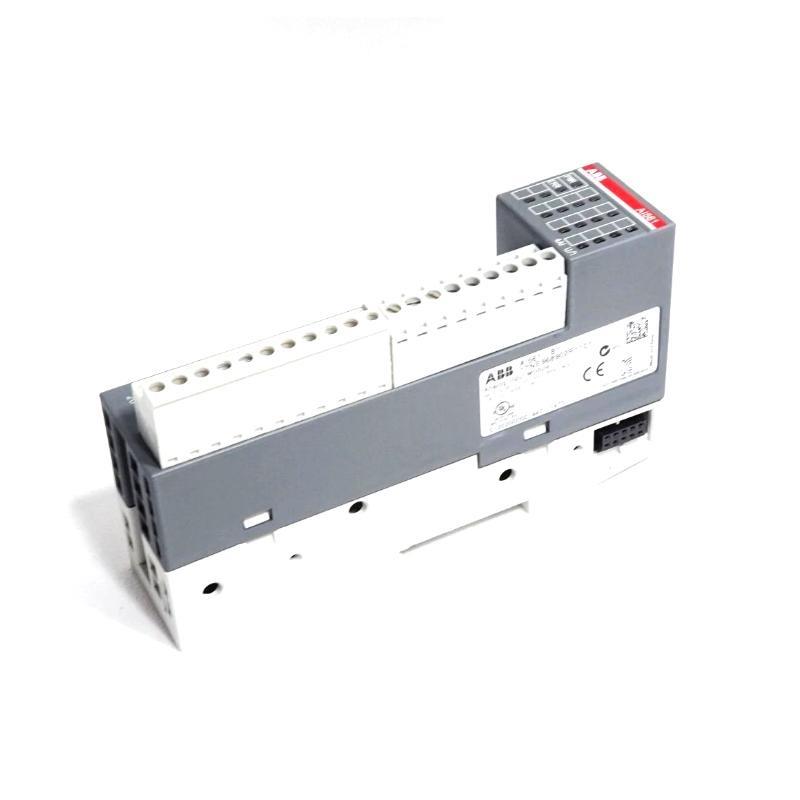

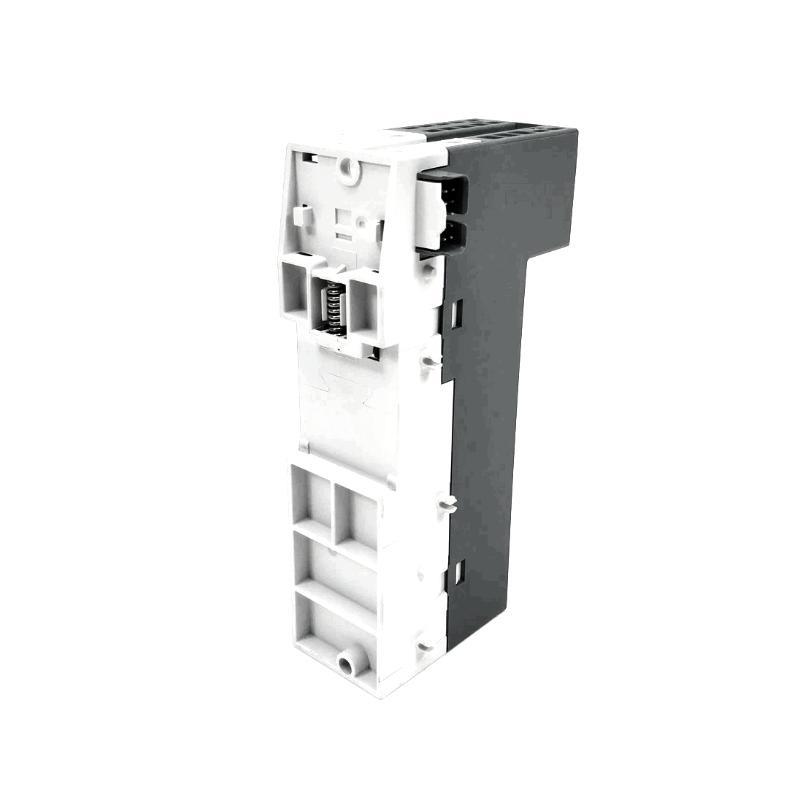

ABB AI561 1TNE968902R1101 PLC-AC500 Analog Input Module Unbelievable Prices!

FAQ

How many analog input channels does the ABB AI561 module support?
The module supports 4 individually configurable analog input channels.

Does the AI561 module provide input isolation?
No, the AI561 module does not provide galvanic isolation between inputs and the I/O bus.

What input signal types are supported by the module?
The module supports voltage and current inputs, including unipolar and bipolar voltage, and 0–20 mA and 4–20 mA current.

What is the resolution of the AI561 module?
The analog input resolution is 12 bits (13 bits for bipolar inputs on E0 or later versions).

What is the operating temperature range of the module?
0°C to +60°C for horizontal mounting, and 0°C to +40°C for vertical mounting with reduced load.

What are the installation requirements for the module?
It can be mounted horizontally or vertically, ensuring natural convection cooling is not obstructed.

Does the module feature overvoltage protection?
Yes, the voltage input channels are protected up to 30 V DC.

What are the power supply and consumption specifications of the module?
The module operates on 24 V DC, with typical current consumption of 0.1 A (0.02 A on E0 or later versions), and maximum power dissipation of approximately 2.7 W.
