Product Introduction

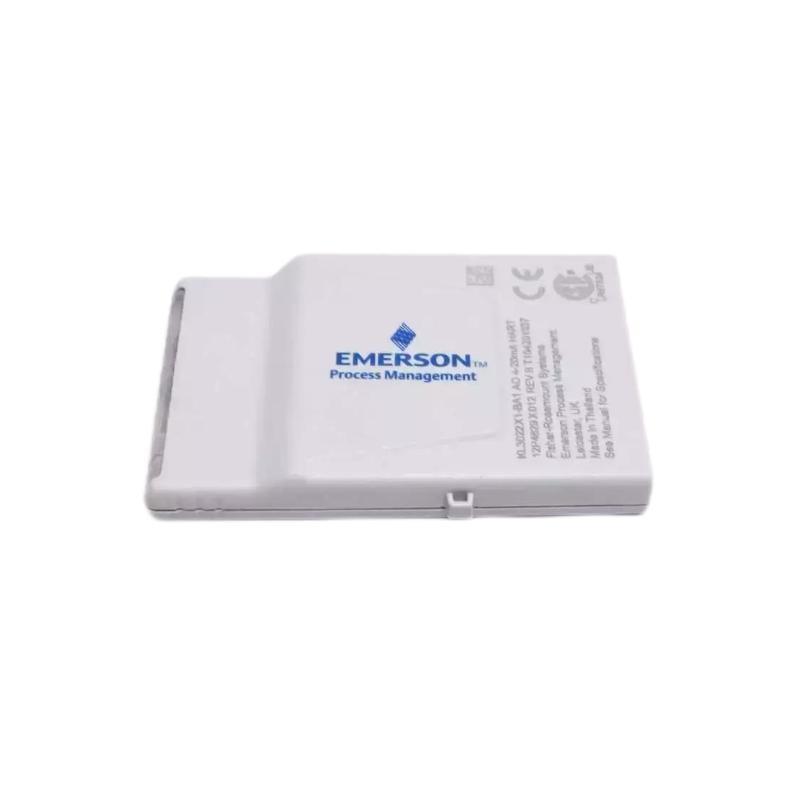

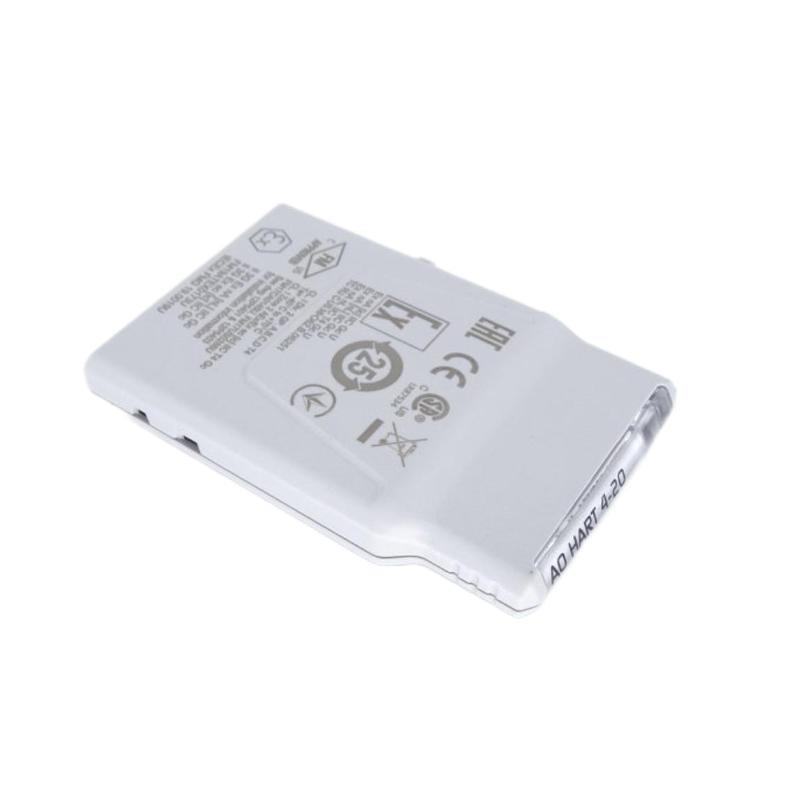

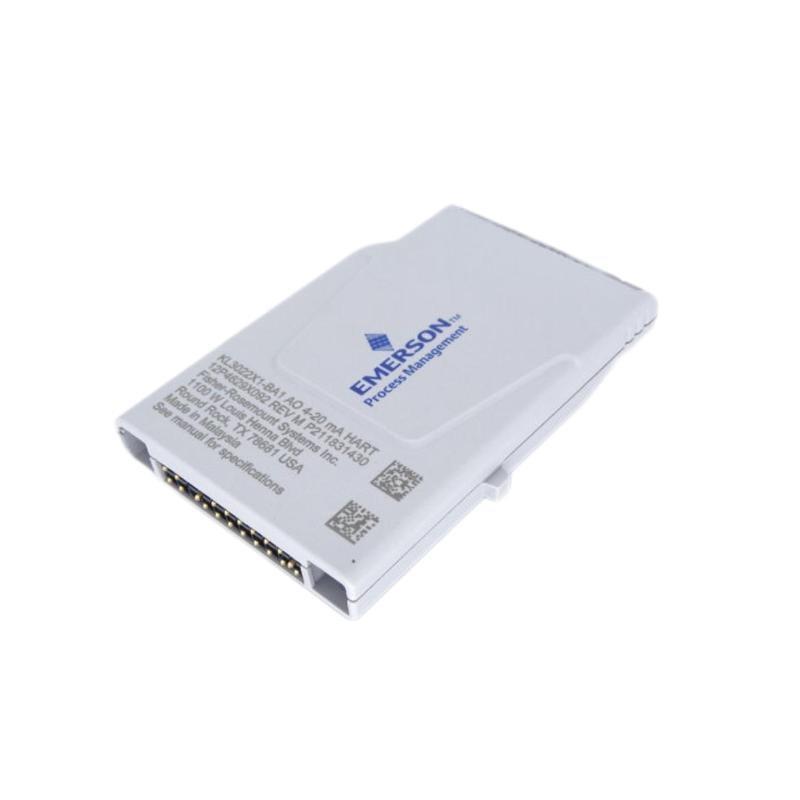

Emerson KL3022X1-BA1 DeltaV Charm Analog Output Module Original

Brand：Emerson

Item No.：KL3022X1-BA1

Product Type：DeltaV Charm Analog Output Module

Product Origin：USA

Dimensions：110 x 100 x 30 mm

Weight：0.05 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel source, support test instructions, worry-free after-sales

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What type of analog output does the KL3022X1-BA1 support?
It supports 4–20 mA output with HART communication protocol.

Can the module be hot-swapped?
No, the module must not be inserted or removed while powered unless the area is confirmed to be non-hazardous.

What are the environmental limits for operation?
The module operates from -40 °C to +70 °C and supports Class G3 airborne contaminants.

Is calibration required during installation?
No calibration is required; the module is maintenance-free.

What certifications does this module carry?
It is certified for ATEX, IECEx, FM, and UKEX for use in Zone 2 hazardous areas.

How is compatibility with the terminal block ensured?
A keying system automatically aligns the CHARM with its terminal block upon initial installation.

What are the power requirements of the module?
It requires +6.3 VDC at 32 mA for the CHARM bus and +24 VDC at 30 mA for the field circuit.

What shock and vibration standards does the module meet?
It withstands 10 g shock (11 ms half-sine) and vibration of 1 mm peak-to-peak (2–13.2 Hz), 0.7g (13.2–150 Hz).
