Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

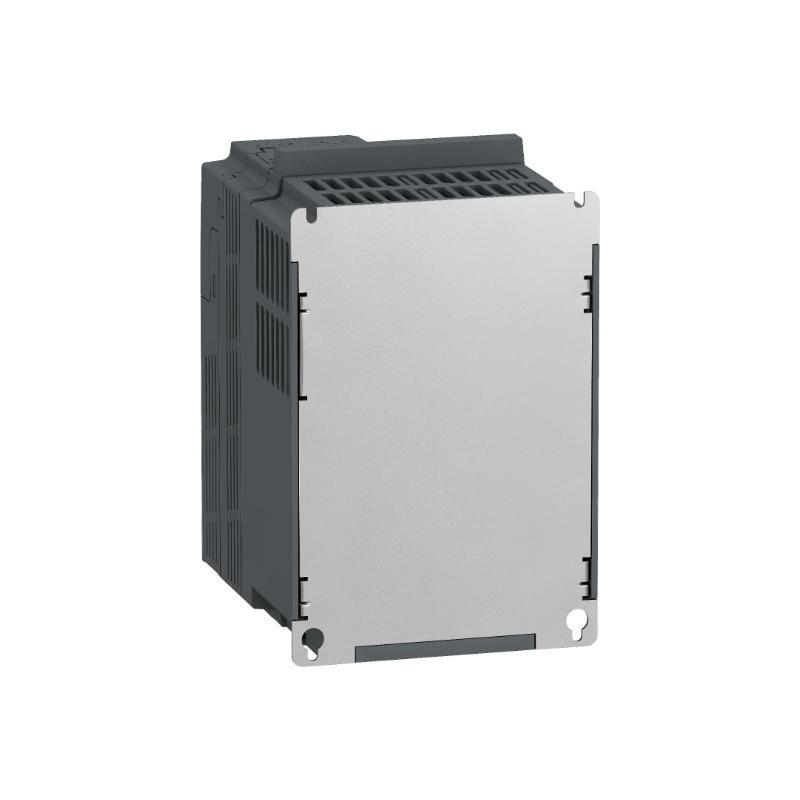

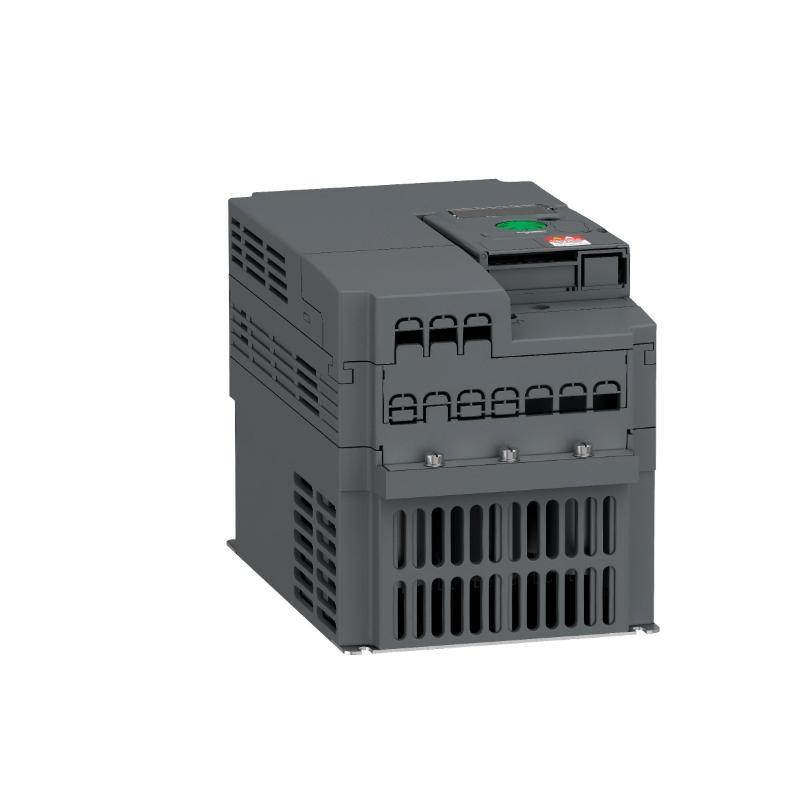

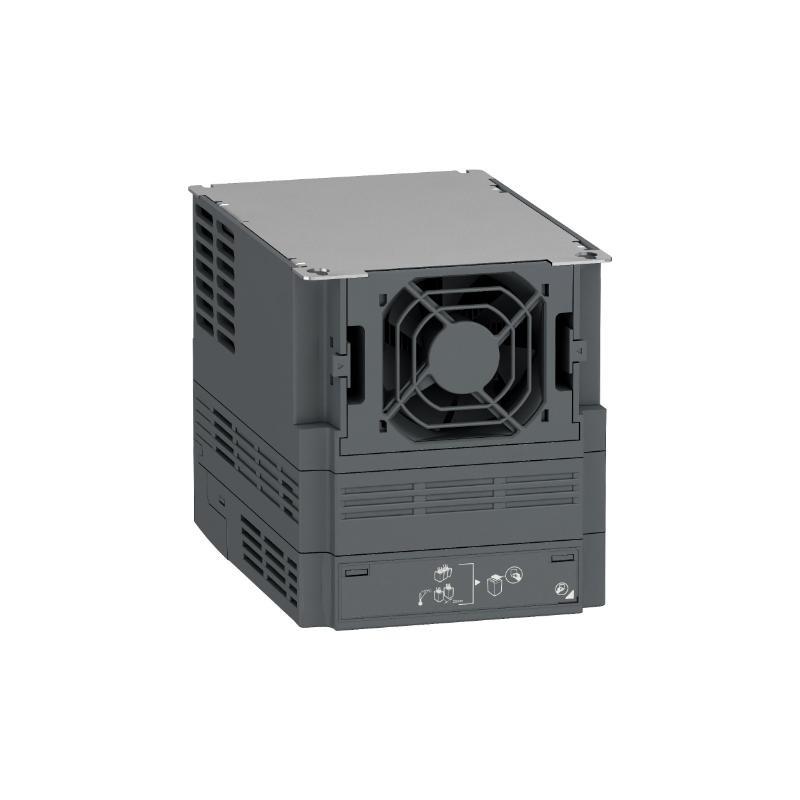

Schneider ATV310HU75N4E Variable Speed Drive Unbelievable Prices!

Brand：Schneider

Item No.：ATV310HU75N4E

Product Type：Variable Speed Drive

Product Origin：France

Dimensions：150 x 171 x 232 mm

Weight：3.7 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and has smooth after-sales connection

Large stock, diverse series, suitable for different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the maximum power output of the ATV310HU75N4E in heavy duty mode?
The maximum output power in heavy duty mode is 7.5 kW.

What is the rated input voltage range of the ATV310HU75N4E?
The drive operates on a three-phase input voltage of 380–460 V at 50/60 Hz.

Does the ATV310HU75N4E include an EMC filter?
No, it does not have an integrated EMC filter; an external EMC filter is required for IEC/EN 61800-3 C3 compliance.

What is the maximum transient current the drive can handle?
The drive can handle up to 25.5 A for a maximum of 60 seconds.

What is the protection level of the drive enclosure?
The ATV310HU75N4E has an IP20 protection rating.

Can the drive operate at high switching frequencies?
Yes, the switching frequency is adjustable between 2 kHz and 12 kHz, but derating applies above 4 kHz.

What is the recommended operating temperature range?
The drive operates between -10°C and +55°C in heavy duty mode without derating.

What are the dimensions and weight of the ATV310HU75N4E?
The dimensions are 150 × 171 × 232 mm, and it weighs 3.7 kg.
