Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

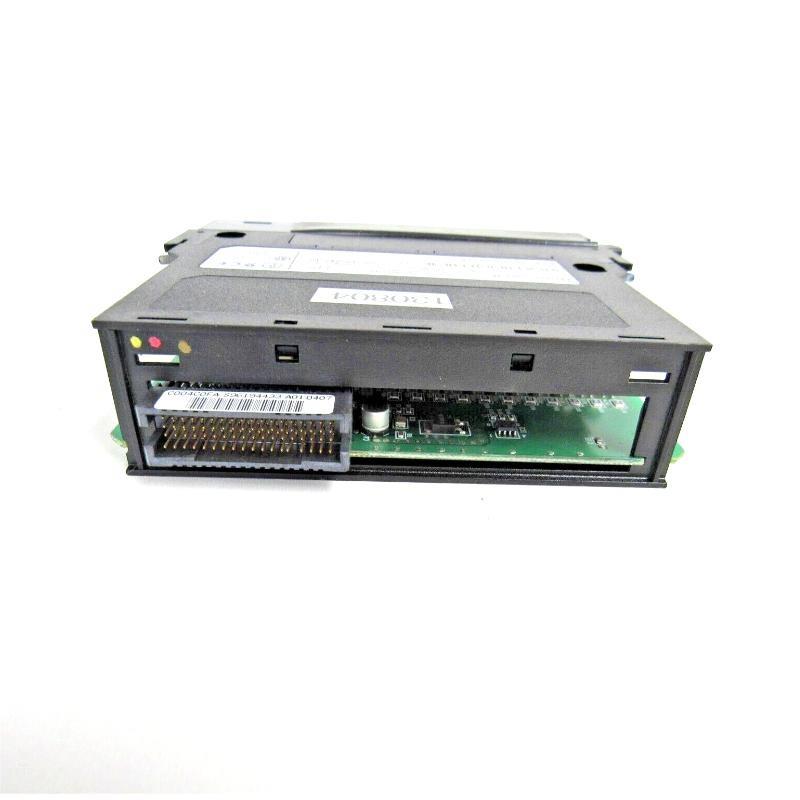

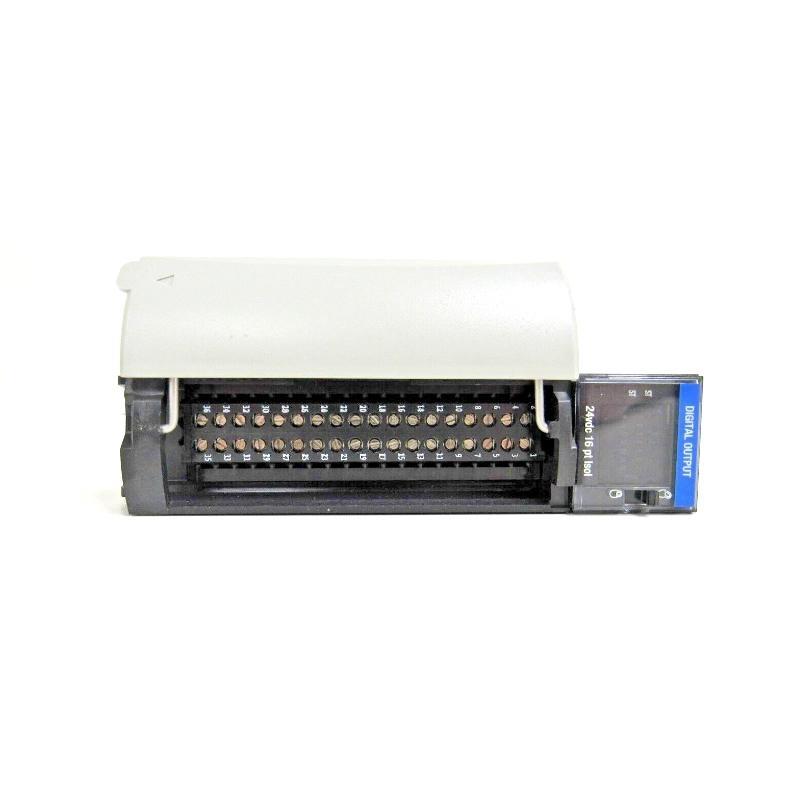

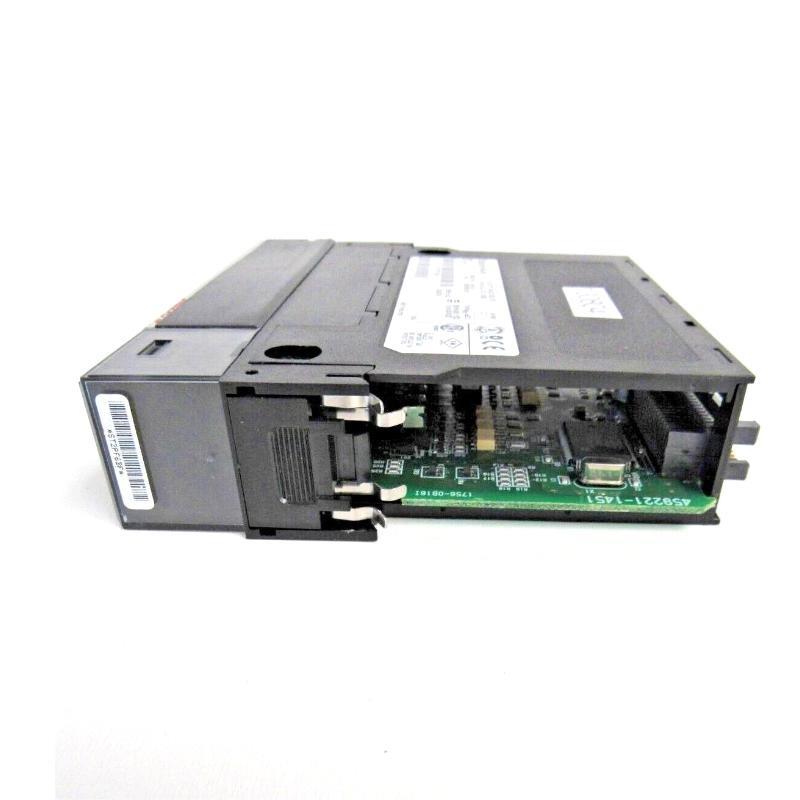

Honeywell TC-ODJ161 96979078 A01 Experion LS Digital Output Module 12-Month Warranty

Brand：Honeywell

Item No.：TC-ODJ161 96979078 A01

Product Type：Digital Output Module

Product Origin：USA

Dimensions：38 × 57 × 78 mm

Weight：0.33kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Large stock, diverse series, and adaptable to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of loads are supported by the module?
The TC-ODJ161 module is designed for standard 24 VDC loads such as solenoids, indicators, and contactor coils.

Are the output channels electrically isolated?
Yes, each output channel is electrically isolated, offering 2546 VDC isolation both channel-to-channel and user-to-system.

What is the maximum output current per channel?
Each channel can handle up to 0.5 A, with a total maximum of 8 A for the entire module.

Does the TC-ODJ161 support RIUP (Removal and Insertion Under Power)?
Yes, RIUP is allowed in non-hazardous locations. In hazardous (Class I, Div 2) environments, RIUP is not permitted.

Does the module include diagnostic functions?
No, TC-ODJ161 does not have diagnostics. For such features, consider models like ODX161.

How much surge current can the outputs tolerate?
Each output channel can tolerate up to 2 A for 10 milliseconds.

What terminal block is used with this module?
It uses a 36-pin TC-TBCH removable terminal block, supporting standard industrial wiring.

Does the module require special cooling or mounting?
No special cooling is needed. Install in a standard industrial enclosure with adequate ventilation.
