Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

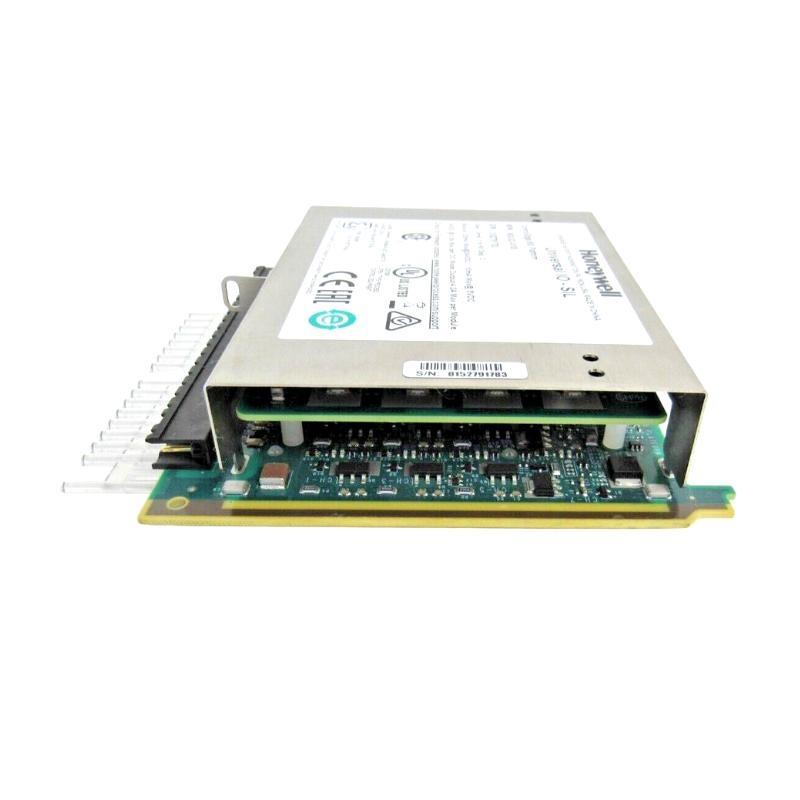

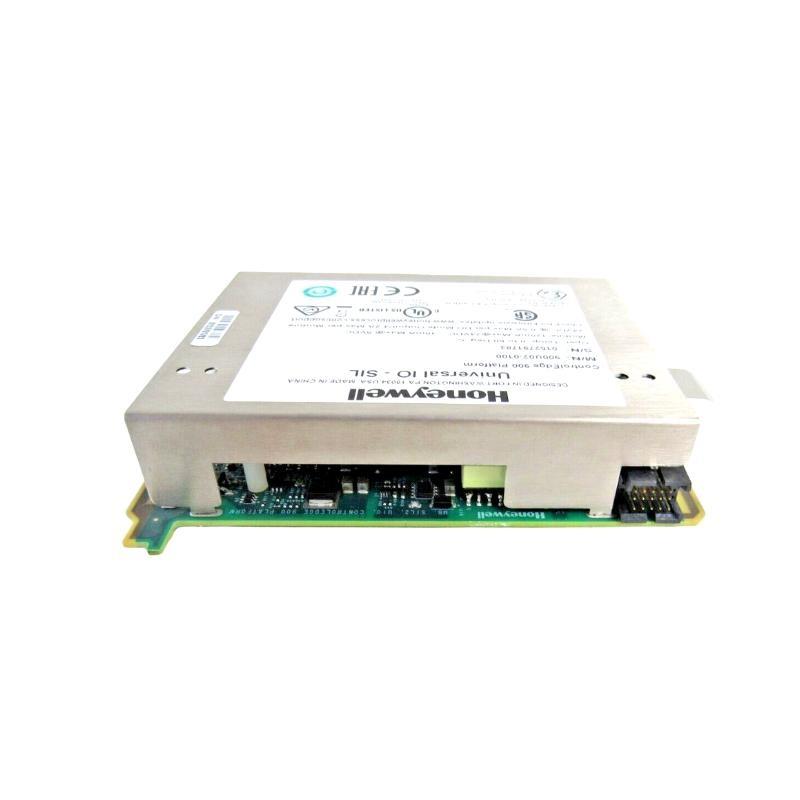

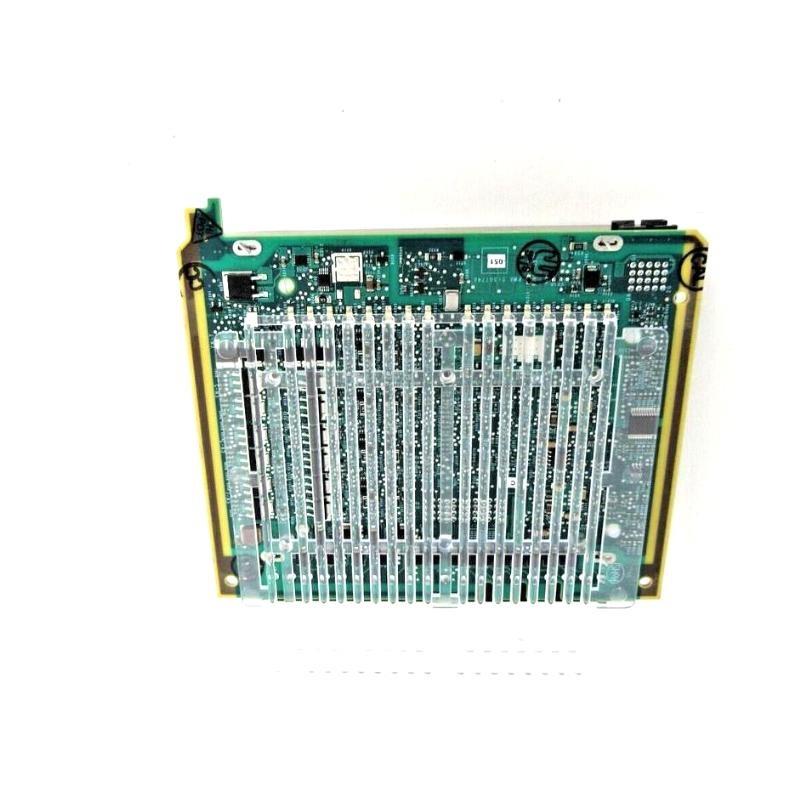

Honeywell 900U02-0100 ControlEdge HC900 Safety Universal Input /Output Module Fast Shipping!

Brand：Honeywell

Item No.：900U02-0100

Product Type：Safety Universal Input /Output Module

Product Origin：USA

Dimensions：137 × 33.1 × 151.7 mm

Weight：0.26 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular channels, complete test instructions, and responsive services

Regular models are in stock for a long time, the inventory is stable, welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of inputs and outputs are supported by the 900U02-0100 module?
It supports voltage, current, thermocouple, RTD, resistance, and slidewire analog inputs, and both analog and digital outputs.

Does the 900U02-0100 support failsafe operations?
Yes, it supports configurable failsafe values or states when communication with the controller is lost.

Can the module be hot-swapped?
Yes, it supports hot insertion and removal under power, but the field terminal block power must be disconnected first.

Are the input channels galvanically isolated?
Yes, the module provides both point-to-point and point-to-chassis galvanic isolation for noise immunity.

What are the typical application areas for this module?
It is suitable for process automation, safety instrumented systems (SIS), and other high-reliability industrial environments.

Does the module support individual channel field calibration?
Yes, each channel can be individually field-calibrated to improve accuracy.

How is the module mounted?
The module is mounted using a standard 35mm DIN rail.

Is the module compliant with international standards?
Yes, it is certified to CE, UL, FM, CSA, and ATEX standards.
