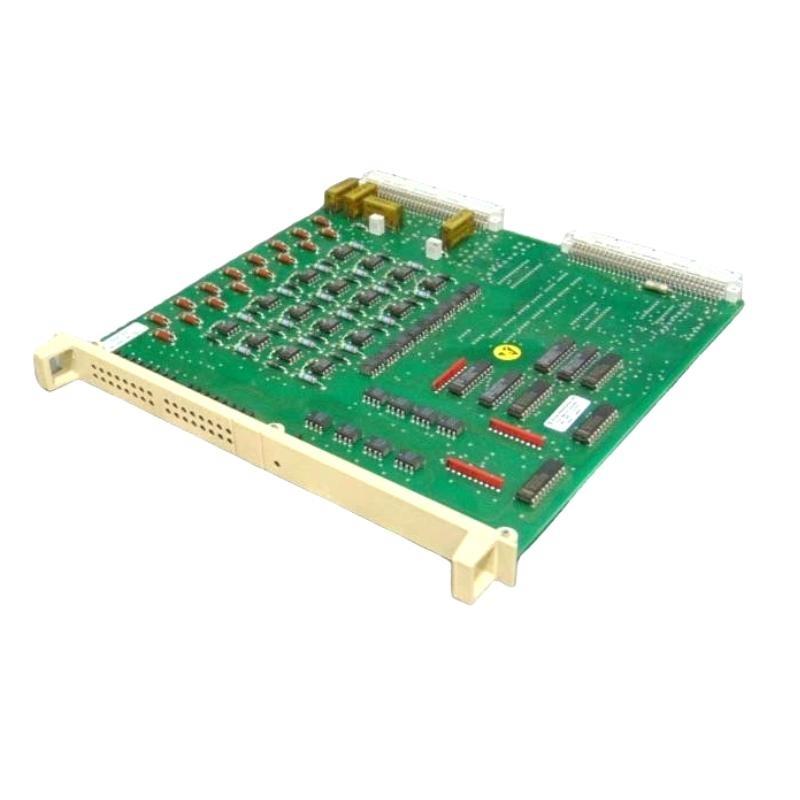

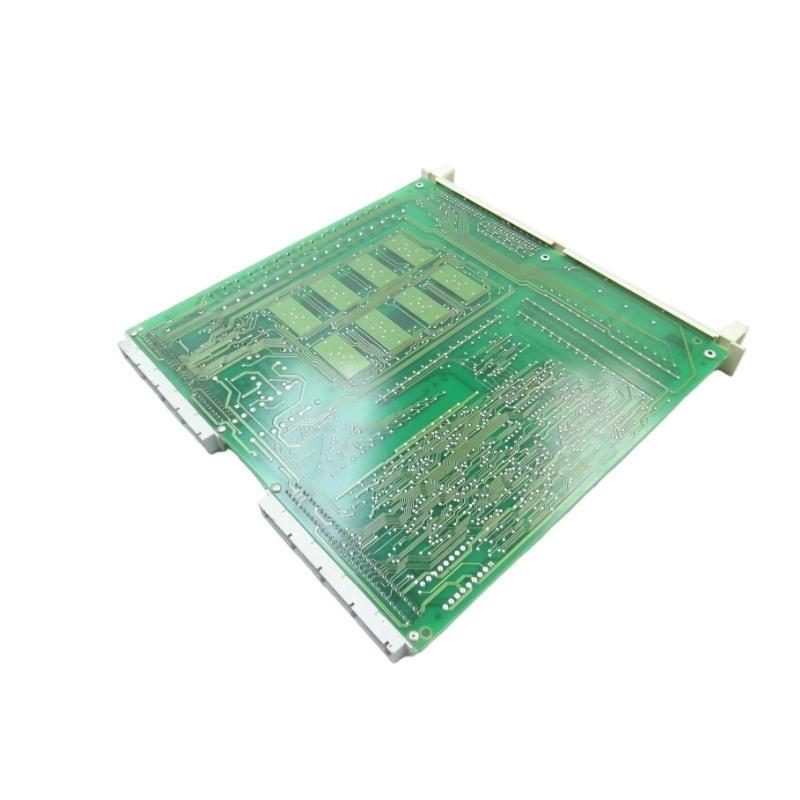

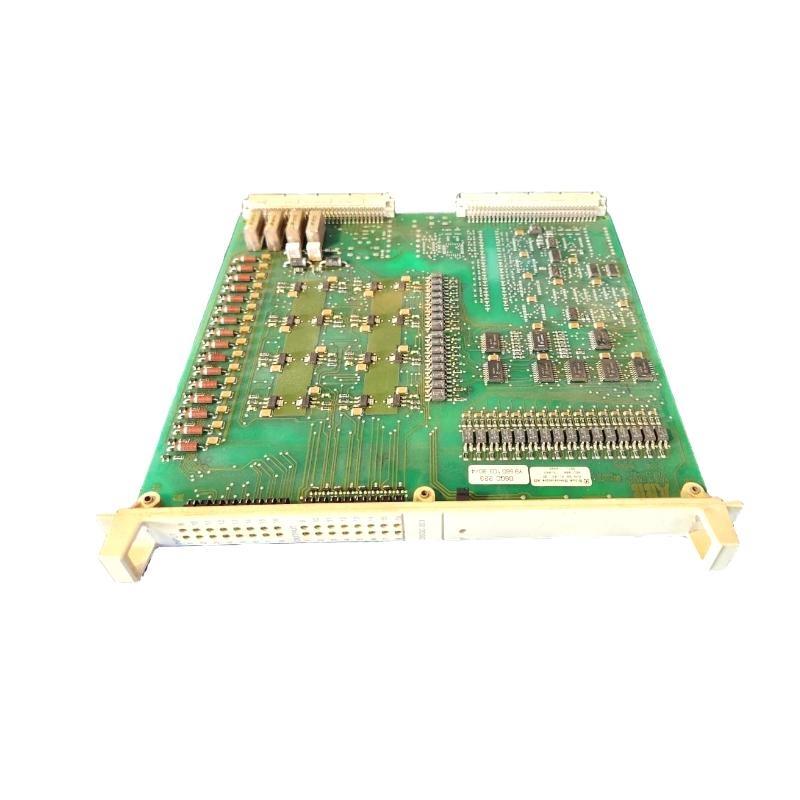

ABB DSQC 223 YB560103-BD Digital I/O Board Original

FAQ

What is the main function of the DSQC 223 module?
The DSQC 223 module provides 16 digital inputs and 16 digital outputs for signal communication with external devices.

What type of isolation does the DSQC 223 support?
All input and output channels are opto-isolated to ensure robust signal integrity and safety.

How can I confirm the board is properly initialized?
The red “F” LED on the module should be off to indicate successful initialization.

What are common causes if no I/O channels work?
Possible issues include missing 24V power, parameter misconfiguration, or a faulty board.

Can the module’s I/O status be monitored through the teach pendant?
Yes, the operator can monitor each I/O point status from the teach pendant I/O menu.

Are any special settings required after replacing the module?
No special settings are required; the module will be auto-recognized, but check power and parameters.

What does the LED brightness indicate on DSQC 223?
The LED brightness reflects voltage level—higher voltage yields brighter light; LEDs may dimly glow near threshold levels.

What applications is the DSQC 223 suitable for?
It is ideal for industrial robotics, automated lines, and digital communication with PLCs, sensors, and actuators.
