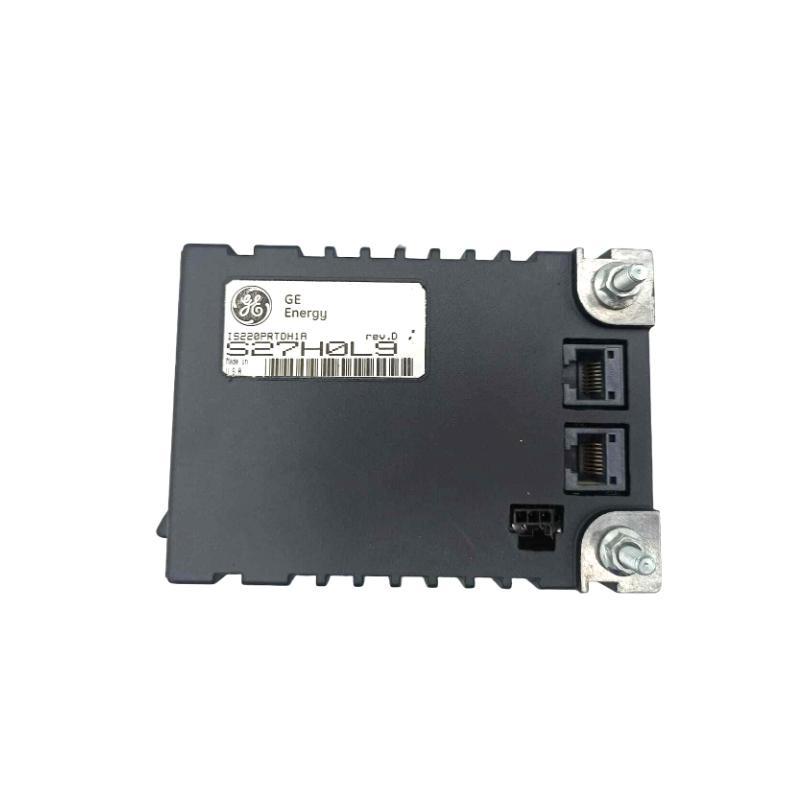

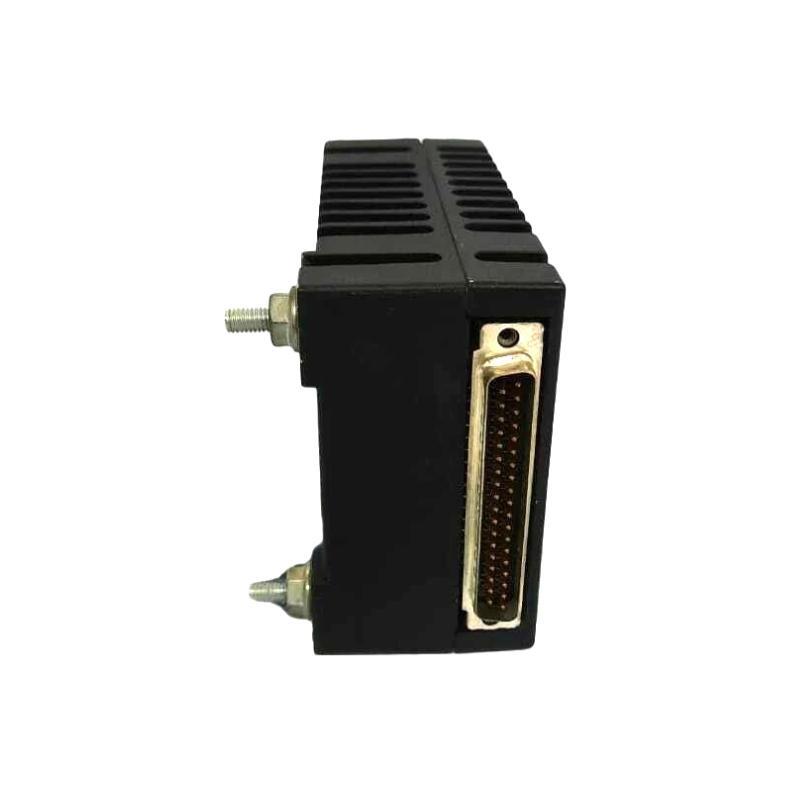

Name: GE IS220PRTDH1A Mark VIe Series Resistance Temperature Device Input Module New In Stock
Brand: GE Fanuc PLC
SKU: 5995
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IS220PRTDH1A Mark VIe Series Resistance Temperature Device Input Module New In Stock

Brand：GE Fanuc

Item No.：IS220PRTDH1A

Product Type：Resistance Temperature Device Input Module

Product Origin：USA

Dimensions：128 × 82 × 60 mm

Weight：0.38 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of the product is clear and reliable, supports third-party testing, and has complete after-sales support

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

How many RTD inputs does the IS220PRTDH1A support?
The module supports up to 8 RTD input channels.

Which RTD terminal boards are compatible with IS220PRTDH1A?
It is compatible with TRTDH1D, TRTDH2D, and SRTD terminal boards. It is not compatible with the DRTD board.

How is power connected to the module?
Power is connected via a 3-pin connector on the side of the module. A built-in soft-start function eliminates the need to disconnect power during connection.

What type of network communication does it support?
It supports dual RJ45 Ethernet ports with 10/100 Mbps speed and auto-negotiation. It also supports DHCP for address assignment.

What diagnostic features are available in IS220PRTDH1A?
It includes power-up self-test, internal power monitoring, hardware ID matching, hardware and system limit checking for RTD inputs, and diagnostic LEDs.

Does the module support redundant communication?
Yes, both Ethernet ports are active simultaneously. If one fails, the other maintains communication without interruption.

How can I identify module faults?
Faults are indicated by status LEDs and diagnostic signals like L3DIAG PRTD within the ToolboxST application.

How is the IS220PRTDH1A installed?

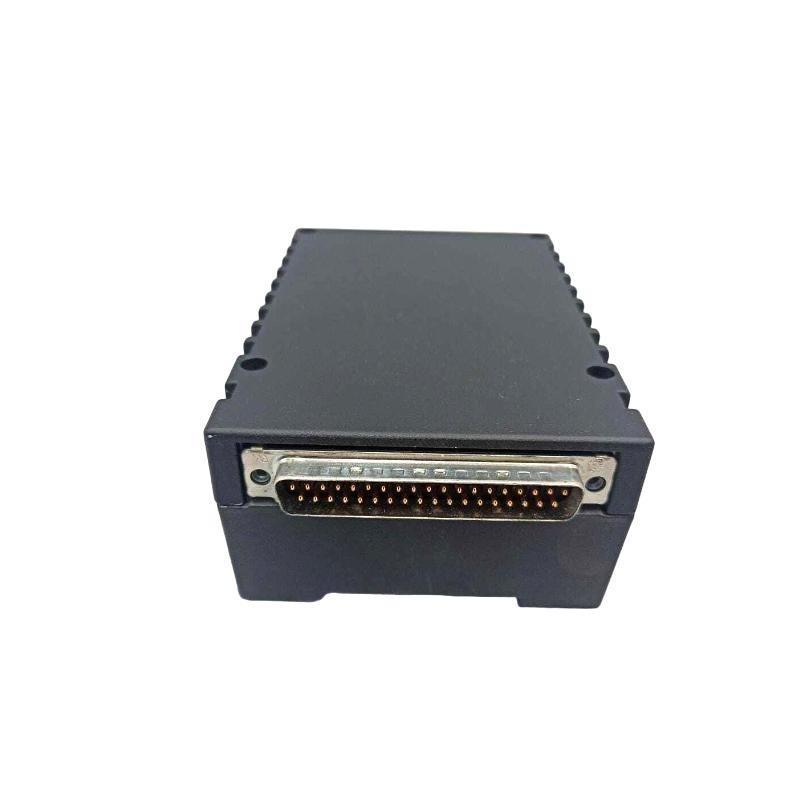

Connect it directly to the terminal board using the DC-37 connector and secure it with screws using the threaded inserts near the Ethernet ports to avoid mechanical stress.
