ABB TU890 3BSC690075R1 S800 I/O System Terminal Block Trusted supplier

ABB TU890 3BSC690075R1 S800 I/O System Terminal Block Trusted supplier

Name: ABB TU890 3BSC690075R1 S800 I/O System Terminal Block Trusted supplier
Brand: ABB PLC
SKU: 5996
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 122 left

81%

Add to cart

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

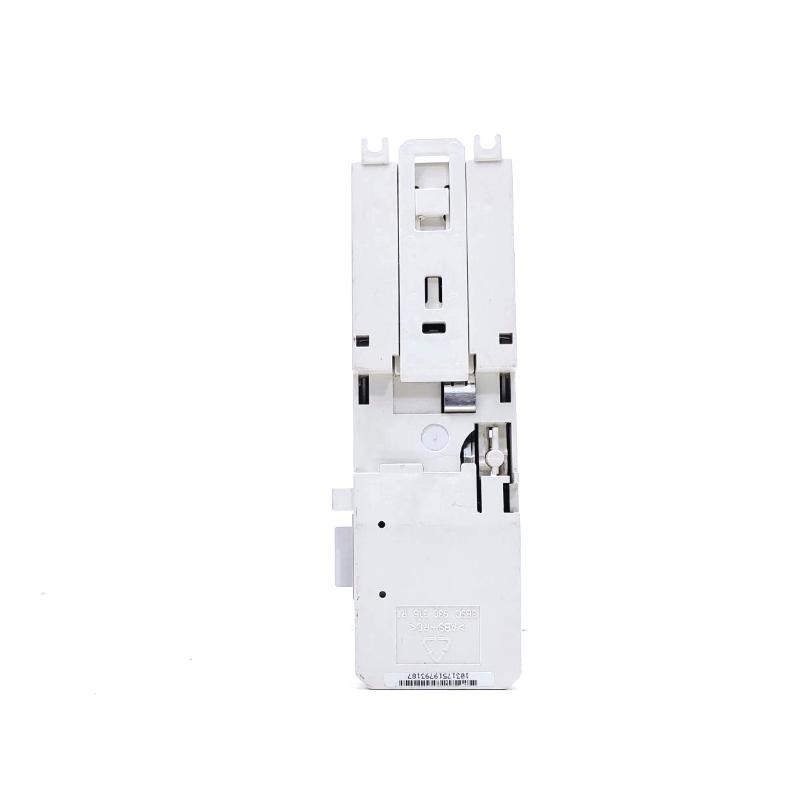

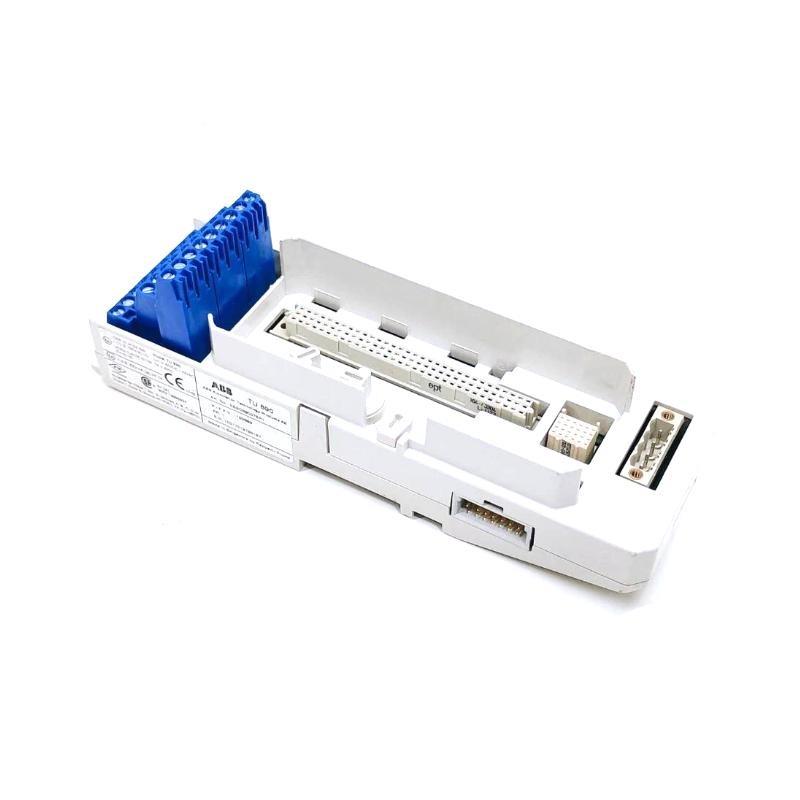

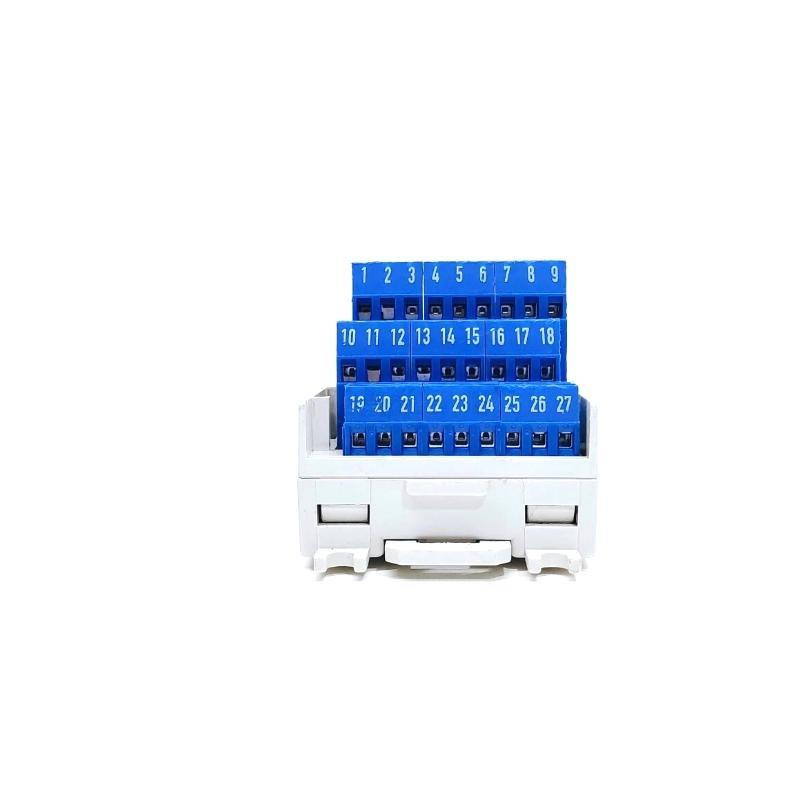

ABB TU890 3BSC690075R1 S800 I/O System Terminal Block Trusted supplier

Brand：ABB

Item No.：TU890 3BSC690075R1

Product Type：Terminal Block

Product Origin：Sweden (SE)

Dimensions：64 x 194 x 58.5 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

Which I/O modules are compatible with the TU890?
It is compatible with AI890, AI893, AI895, AO890, AO895, DI890, and DO890.

What is the maximum current supported per channel?
The maximum rated current per I/O channel is 2 A.

What certifications does TU890 comply with?
It complies with ATEX/IECEx Zone 2, cFMus Class I Div 2, and marine certifications such as ABS, BV, DNV-GL, and LR.

Does TU890 support redundant I/O?
No, it only supports single I/O channel configurations.

How is the TU890 mounted?
It is mounted horizontally on a DIN rail with a latching device.

What are the dimensions and weight of the TU890?
The dimensions are 64 x 194 x 58.5 mm and it weighs 0.3 kg.

Does the TU890 offer electrical safety protection?
Yes, it complies with EN 61010-1 and EN 61010-2-201, IP20 protection, and overvoltage categories.

Are there specific wire size requirements?
Yes, it supports solid wires (0.2–4 mm²), stranded wires (0.2–2.5 mm²), and power supply wires (0.25–2.5 mm²).
