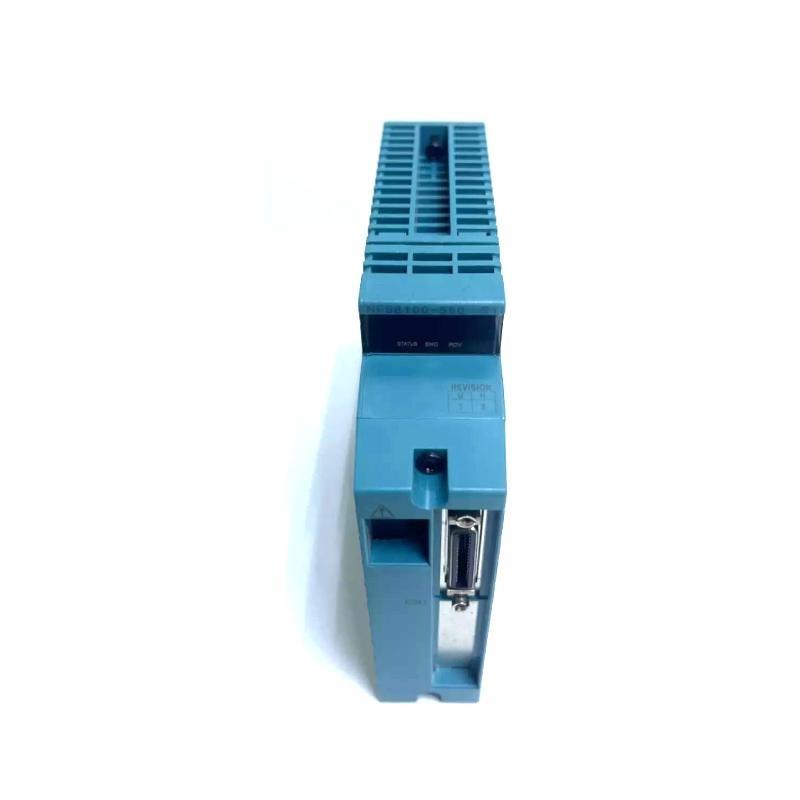

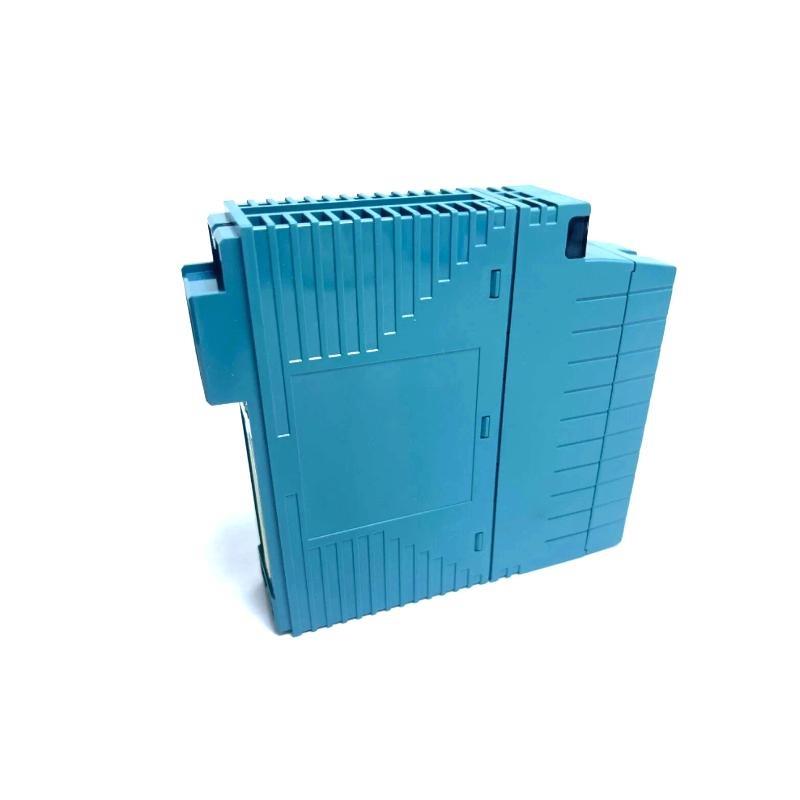

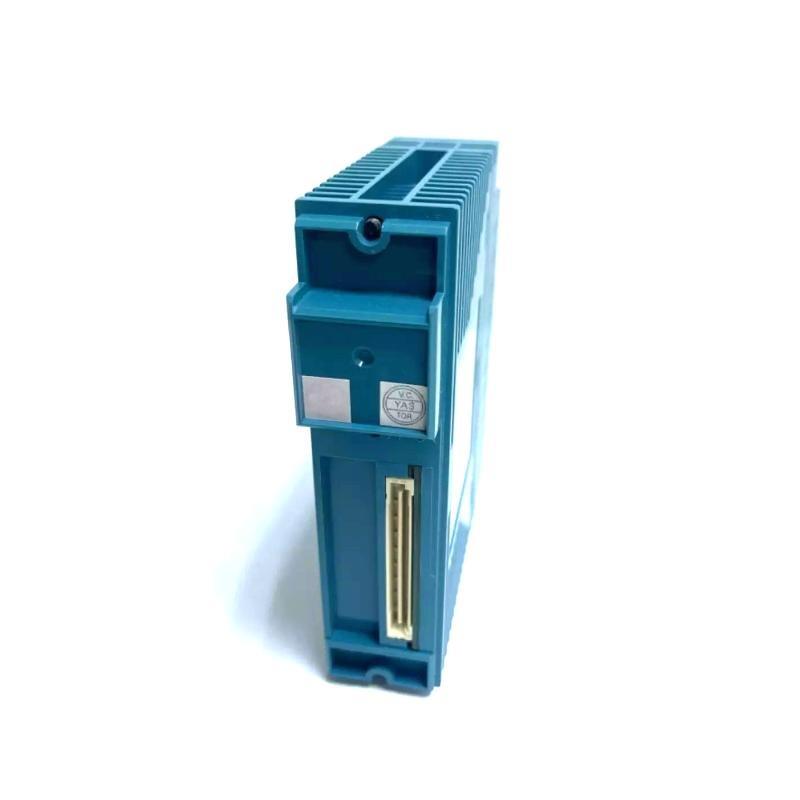

Name: Yokogawa NFSB100-S50 SB Bus Repeat Module for FCN 30-Day Returns！
Brand: Yokogawa Electric
SKU: 6003
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa NFSB100-S50 SB Bus Repeat Module for FCN 30-Day Returns！

Brand：Yokogawa

Item No.：NFSB100-S50

Product Type：SB Bus Repeat Module for FCN

Product Origin：Japan

Dimensions：130 x 142.5 x 32.8mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the function of the Yokogawa NFSB100 module?
The NFSB100 serves as a repeater module to extend the SB bus, allowing connection of control units to I/O extension units.

How many SB bus repeat modules are required for duplex communication?
For duplex SB bus communication, two NFSB100 modules must be installed in each unit—both the control unit and the extension unit.

What is the maximum transmission distance of the NFSB100?
The NFSB100 supports up to 8 meters per line for SB bus communication.

Can the NFSB100 be hot-swapped during operation?
Yes, it is designed for hot-swapping when used in a system that supports this feature.

What power supply voltage does the NFSB100 require?
It requires 5 V DC ±5% with a maximum current draw of 500 mA.

Which slots should the NFSB100 be installed in?
It should be installed in Slot No.10 for single SB bus, or Slot Nos.9 and 10 for duplex SB bus configurations.

What is the difference between NFSBT01 and NFSBT02 accessories?
NFSBT01 is a standard SB bus T-joint, while NFSBT02 includes a built-in terminator, required at both ends of the bus.

What status indicators are present on the NFSB100?
The module includes three LED indicators—STATUS (hardware OK), SND (transmission active), and RCV (reception active), all in green.
