Product Introduction

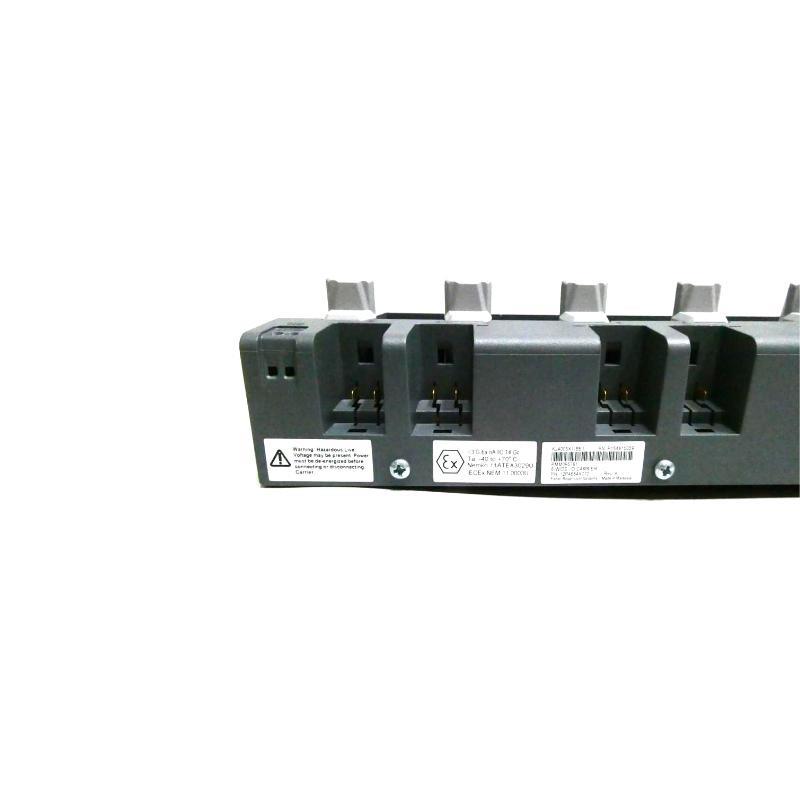

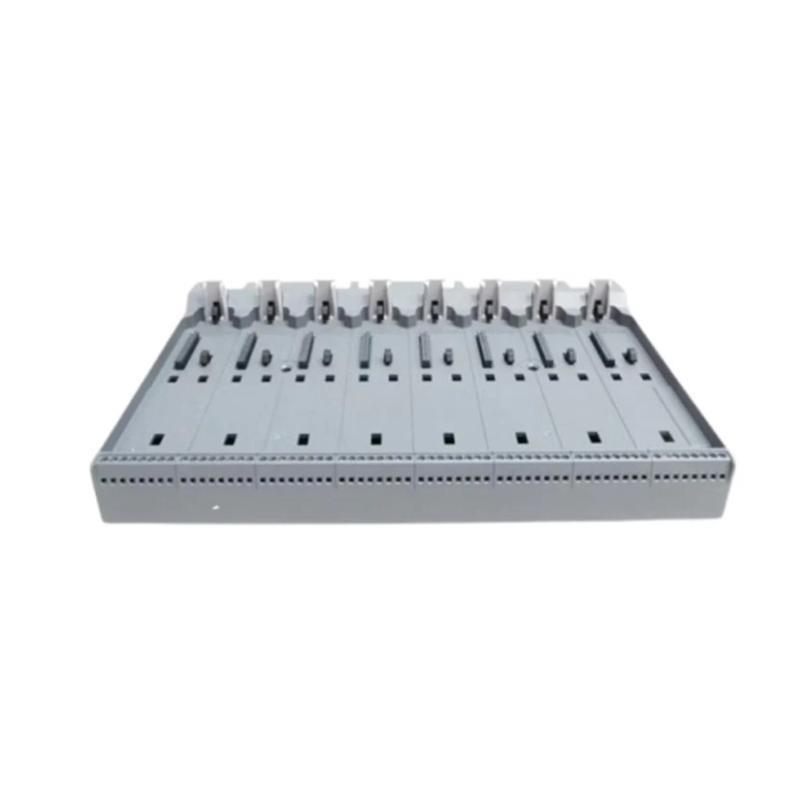

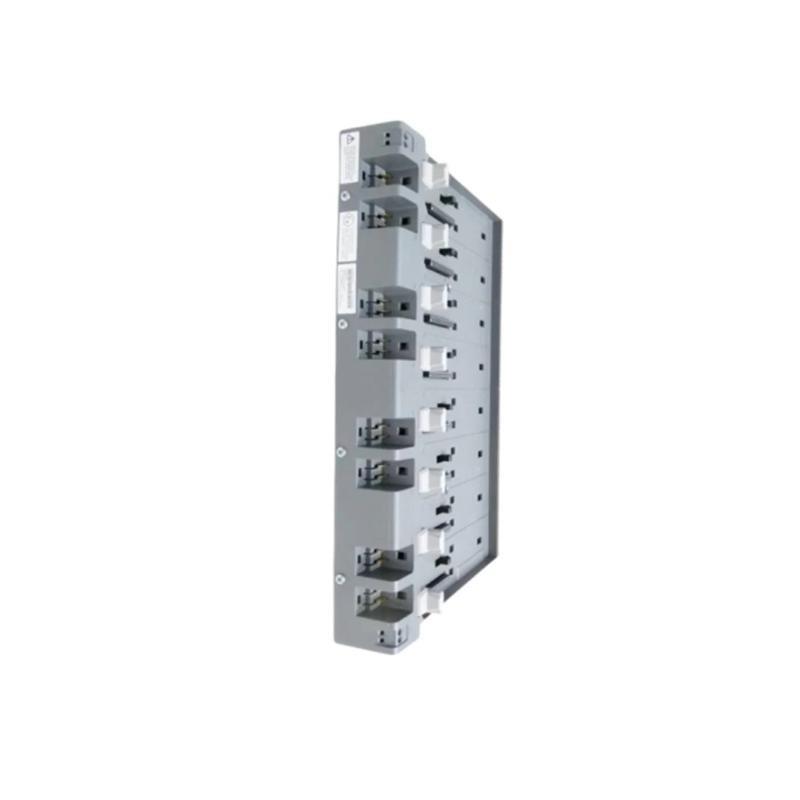

Emerson KJ4005X1-BE1 S-Series System Carrier Unbelievable Prices!

Brand：Emerson

Item No.：KJ4005X1-BE1

Product Type：S-Series System Carrier

Product Origin：USA

Dimensions：130 x 100 x 30 mm

Weight：0.25 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for cooperation testing, and fast response to after-sales service

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the power supply specification for the KJ4005X1-BE1 system carrier?
The power supply is a dual DC/DC configuration with local bus power of 12 VDC at 15A and field power of 30 VDC at 3 A per card.

What is the operating temperature range for this product?
The operating temperature range for the KJ4005X1-BE1 is from -40°C to +70°C.

Can the KJ4005X1-BE1 be exposed to airborne contaminants?
Yes, the product is rated for ISA-S71.04 –1985 Airborne Contaminants Class G3.

What is the weight of the KJ4005X1-BE1 system carrier?
The weight of the KJ4005X1-BE1 is 0.25 kg.

What are the vibration tolerances for this system carrier?
The system can withstand vibration of 1mm Peak to Peak from 2 to 13.2Hz and 0.7g from 13.2 to 150Hz.

Is calibration required for this unit?
No, calibration is not required for the KJ4005X1-BE1 system carrier.

What is the maximum length for I/O carriers and local bus extenders?
The total length of I/O carriers and local bus extenders cannot exceed 6.5 meters.

Can the KJ4005X1-BE1 be installed in hazardous atmospheres?
Yes, the product is certified for use in hazardous atmospheres with various safety approvals, including Ex ec IIC Gc.
