GE IS220PAICH2A Mark VIe Series Analog I/O Module Fast Shipping!

FAQ

What types of analog inputs does the IS220PAICH2A module support?
It supports 10 analog inputs—eight can be configured as 5 V, 10 V, or 4–20 mA, and two can be configured as 1 mA or 4–20 mA inputs.

How does the module communicate with the controller?

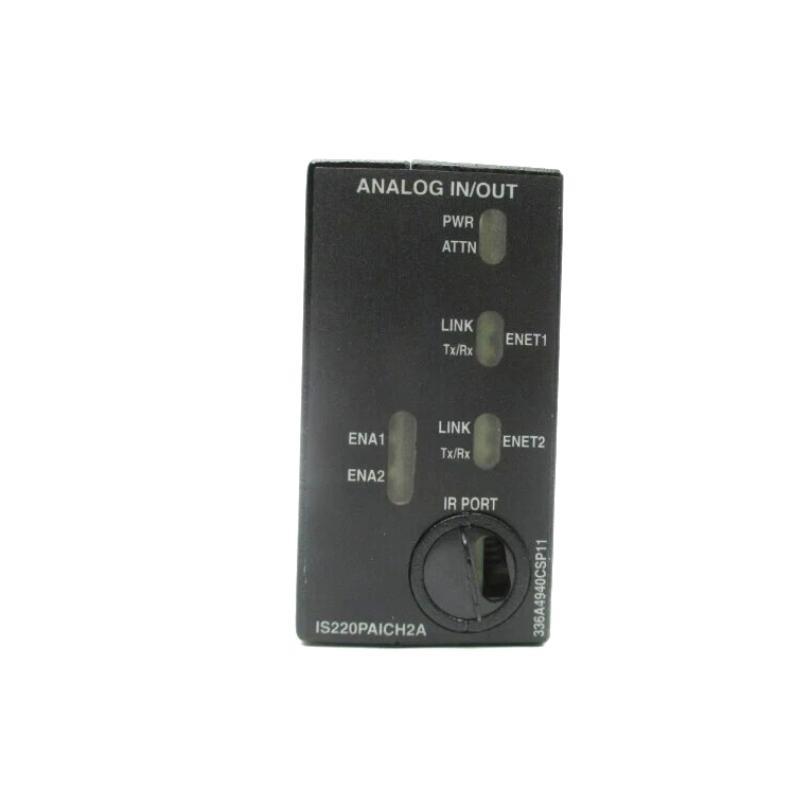

It communicates via dual RJ-45 Ethernet ports, supporting redundant network configurations.

Does the module support 200 mA analog output?
Yes, analog output 1 supports up to 200 mA with the onboard daughterboard hardware.

Is it necessary to power down the system before installation?
No, the module features soft-start capability that safely manages current inrush during connection.

How is the module installed onto the terminal board?

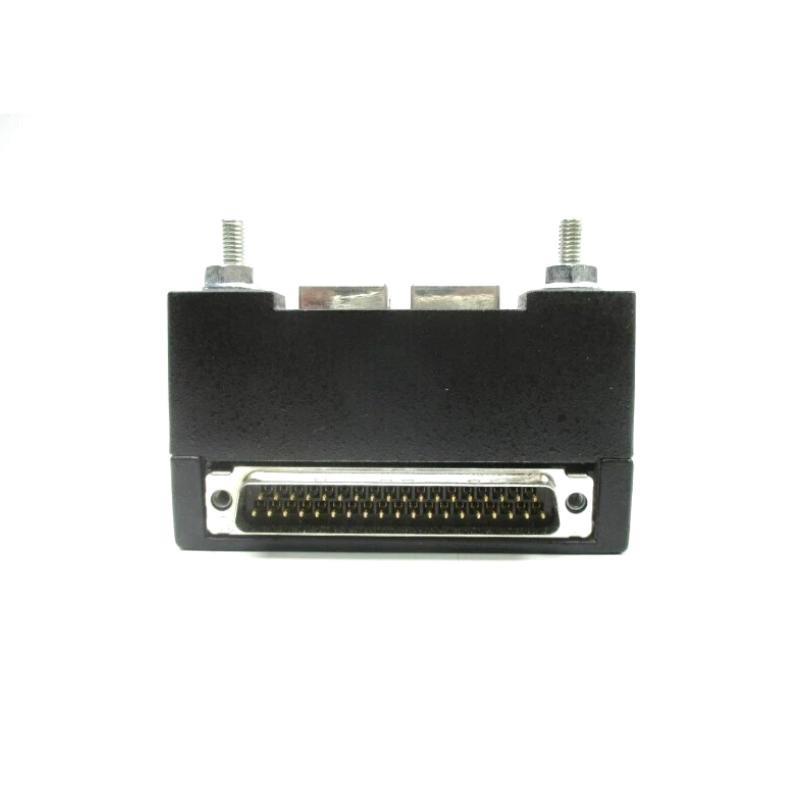

The module plugs directly into the DC-37 connector on the terminal board and is secured using threaded studs.

How is the IS220PAICH2A configured?
Configuration is done using the GE ToolboxST software tool.

Is the module compatible with triple modular redundancy (TMR) systems?
Yes, when used with a TMR-capable terminal board, it can operate in simplex or TMR modes.

What is the difference between PAICH2 and PAICH2A?
PAICH2A adds hardware support for 0–200 mA output on analog output 1, making it an enhanced version of PAICH2.
