Product Details

Emerson brands include Fisher, Rosemount, DeltaV, Epro，Ovation.

Product Introduction

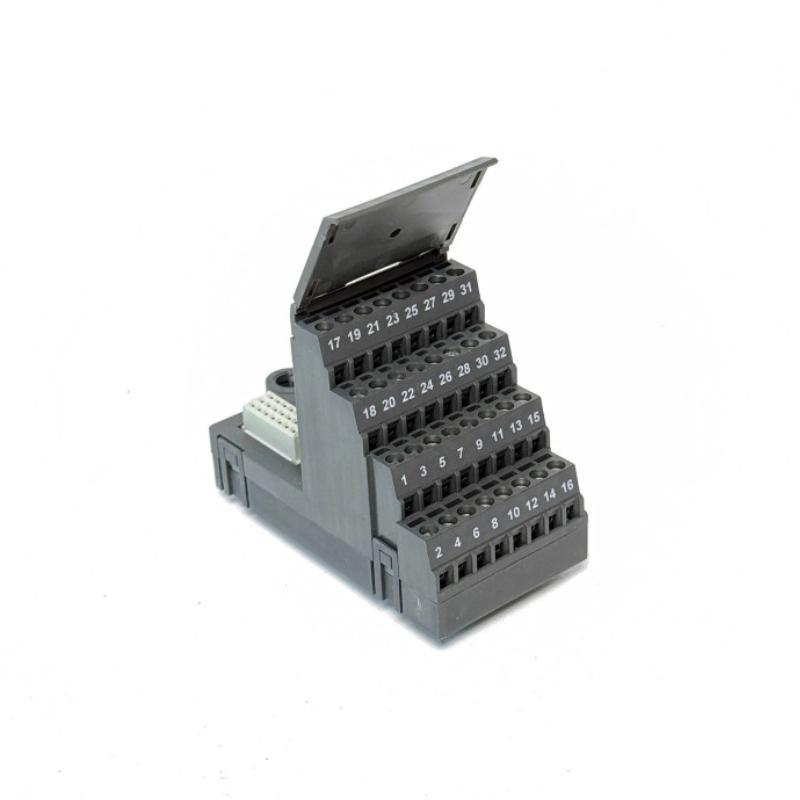

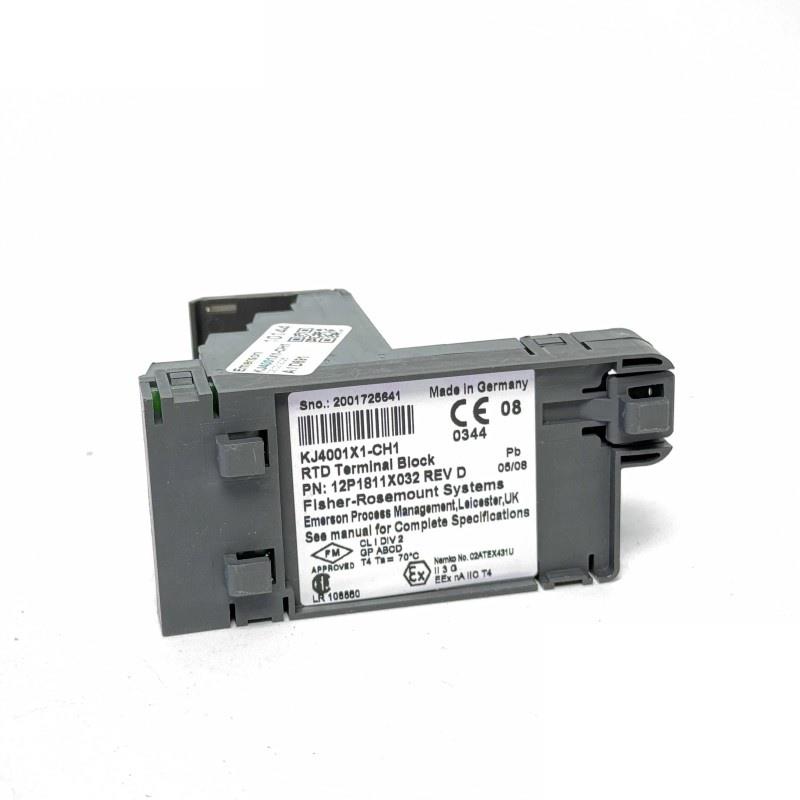

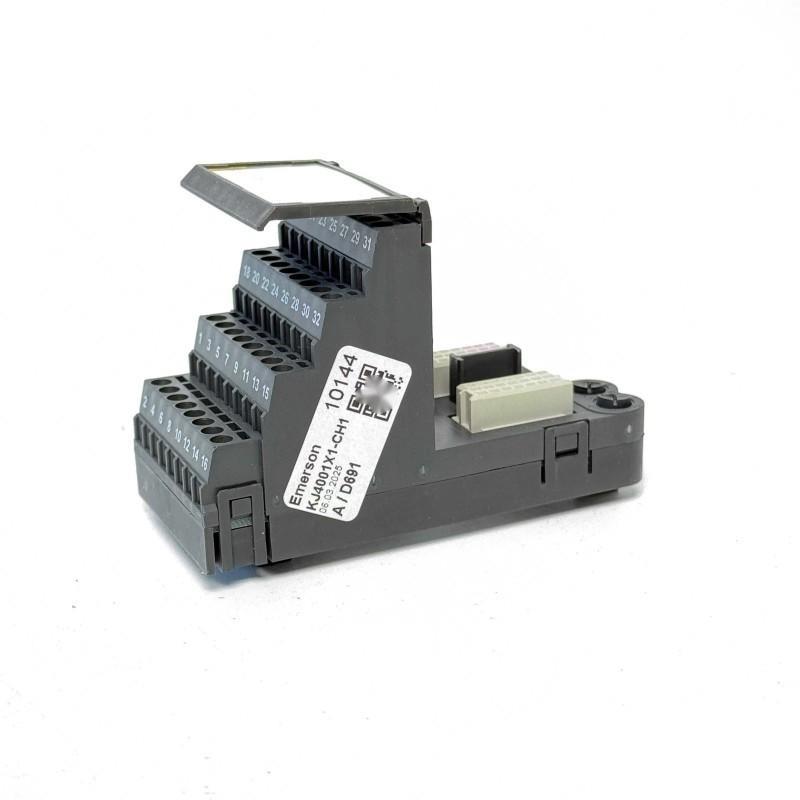

Emerson KJ4001X1-CH1 RTD Terminal Unbelievable Prices!

Brand：Emerson

Item No.：KJ4001X1-CH1

Product Type：RTD Terminal Block

Product Origin：USA

Dimensions：90 x 41 x 65 mm

Weight：0.1 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel source, support test instructions, worry-free after-sales

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the power requirement for the KJ4001X1-CH1 RTD Terminal Block?
The terminal block requires 5 VDC at 100 mA.

Can the KJ4001X1-CH1 be installed or removed while the system is energized?
No, it must not be installed or removed with power applied to the system.

What is the operating temperature range of the device?
It can operate in environments ranging from -40 °C to +70 °C.

Is any calibration required for this terminal block?
No, the unit does not require calibration.

What environmental conditions is the product rated for?
It is rated for Class G3 airborne contaminants and 5%–95% non-condensing humidity.

What are the shock and vibration tolerances?
It can withstand 10 g shock for 11 ms and vibrations of 1 mm peak-to-peak from 2–13.2 Hz, or 0.7 g from 13.2–150 Hz.

Are there any user-serviceable parts inside the module?
No, the unit does not contain any user-serviceable components.

What certifications does the KJ4001X1-CH1 carry?
It is certified under ATEX, IECEx, FM, UKEX, and meets Class I Div. 2 / Zone 2 standards.
