Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

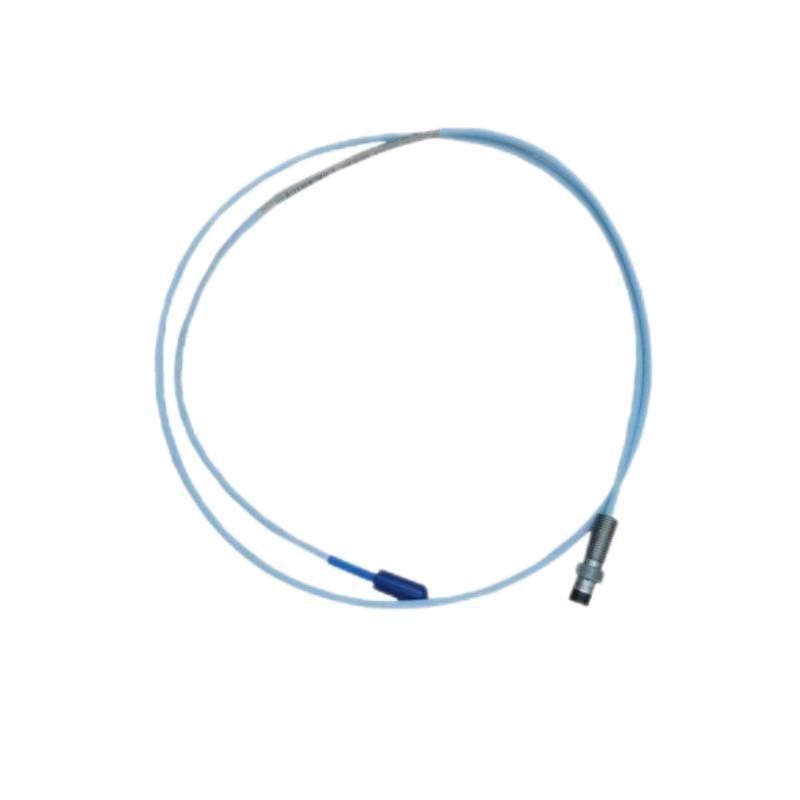

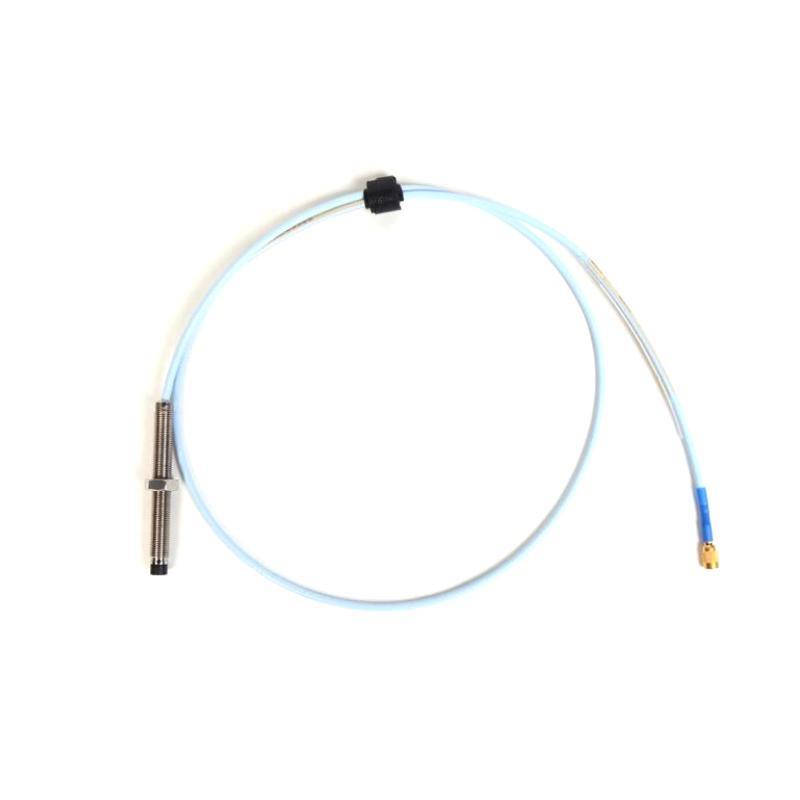

Bently Nevada 330171-00-30-10-02-05 3300 Series 5 mm Eddy-Current Proximity Probe Fast Shipping!

Brand：Bently Nevada

Item No.：330171-00-30-10-02-05

Product Type：3300 Series 5 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 5 mm; probe body length 30 mm; cable length 1.0 m

Weight：Approximately 0.35 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary function of the 330171-00-30-10-02-05 proximity probe?
It is designed to measure shaft vibration, axial position, and displacement in rotating machinery using eddy-current technology.

What does the “330171” series designation indicate?
It identifies a 3300 Series 5 mm proximity probe intended for industrial machinery condition monitoring.

What does the “30-10-02-05” configuration represent?
It specifies a 30 mm probe body length, a 1.0 m integral cable, a ClickLoc connector, and multiple agency or hazardous area approvals.

Which monitoring systems are compatible with this probe?
The probe is compatible with Bently Nevada 3300 XL Proximitor Sensors and associated monitoring modules.

Can this probe be used in harsh or regulated industrial environments?
Yes, the stainless-steel housing and approval ratings make it suitable for harsh, high-vibration, and hazardous area installations.

What type of output signal does the probe provide?
It provides an analog voltage output proportional to the measured shaft displacement or vibration.

What is the operating temperature range of this proximity probe?
The probe operates reliably within a temperature range of –35 °C to +177 °C.

What are the physical dimensions and weight of this probe?
The probe has a 5 mm tip diameter, a 30 mm body length, a 1.0 m cable, and a total weight of approximately 0.35 kg.
