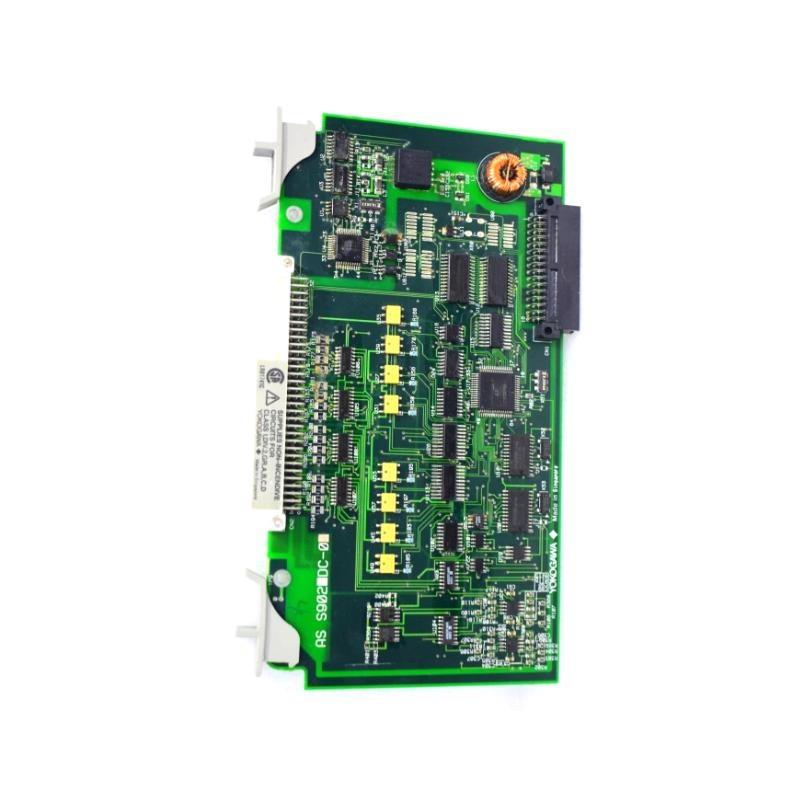

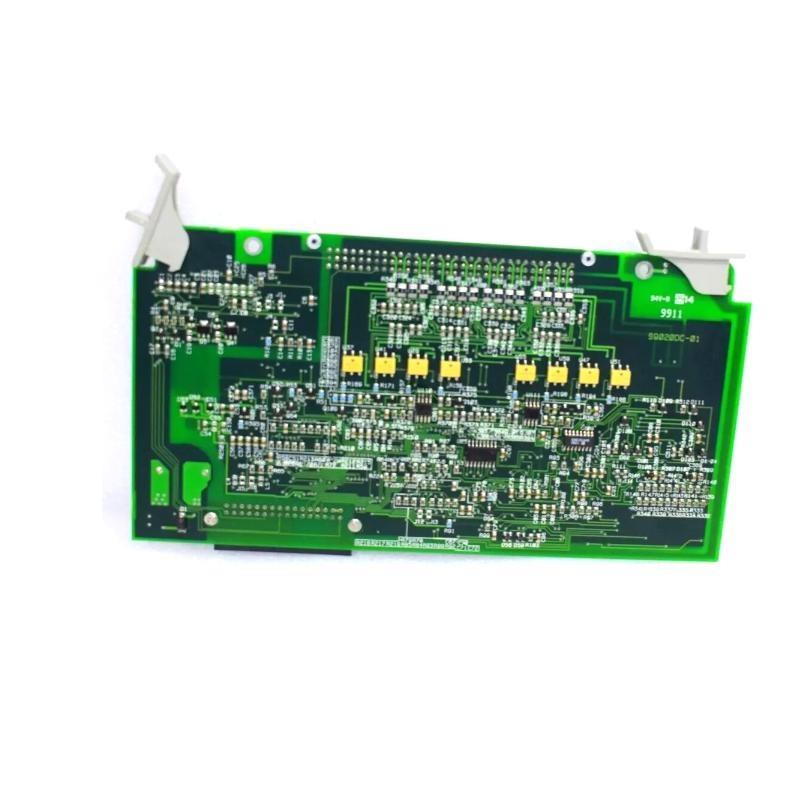

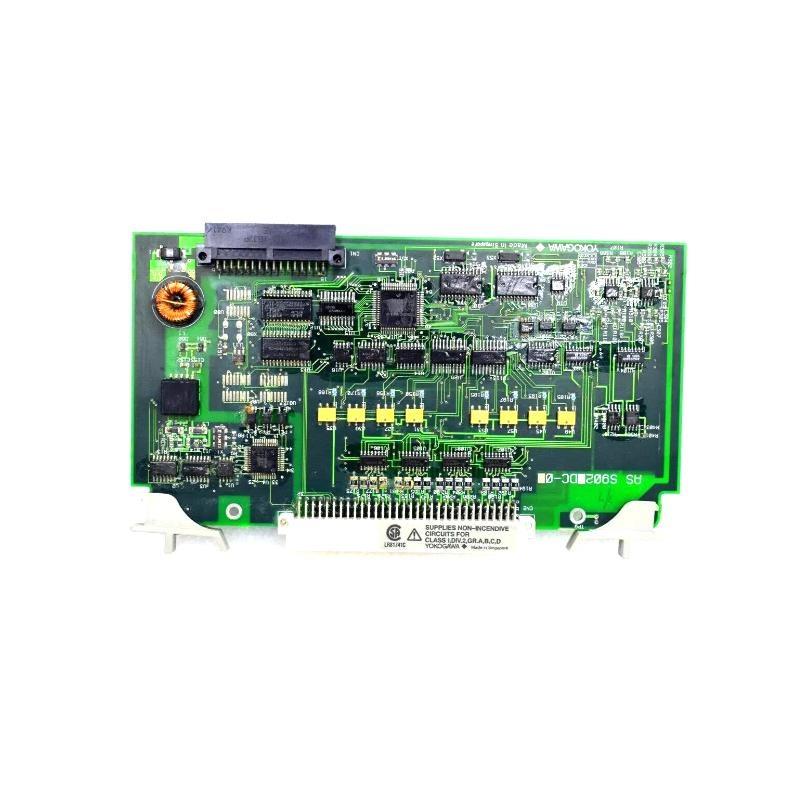

Yokogawa AMM32J S1C Digital Input Module 30-Day Returns！

FAQ

What type of input does the AMM32J S1C module support?
The module supports RTS (Resistance Temperature Detector) input types compliant with IEC751-1995.

What is the input accuracy for RTS signals?
The accuracy for RTS inputs is ±0.15 Ω, and the impact of ambient temperature variation is ±0.3 Ω per 10 °C.

Does the module have disconnection detection?
Yes, the AMM32J S1C includes a disconnection detection function with a maximum detection time of 20 seconds and 0.1 µA detection current.

Are the input signals isolated from the system?
Yes, input signals are electrically isolated from the system with a withstand voltage of 1500 V AC/min.

Are signal settings configurable via software?
Yes, signal types and their input ranges can be configured through software.

What is the power consumption of the module?
The module consumes up to 500 mA at 5.0 V DC.

How is the module installed and wired?
It is installed in an I/O module nest and connected using M4 terminal screws.

What are the typical applications of this module?
It is used in precision temperature monitoring and data acquisition in process automation systems.
