Product Introduction

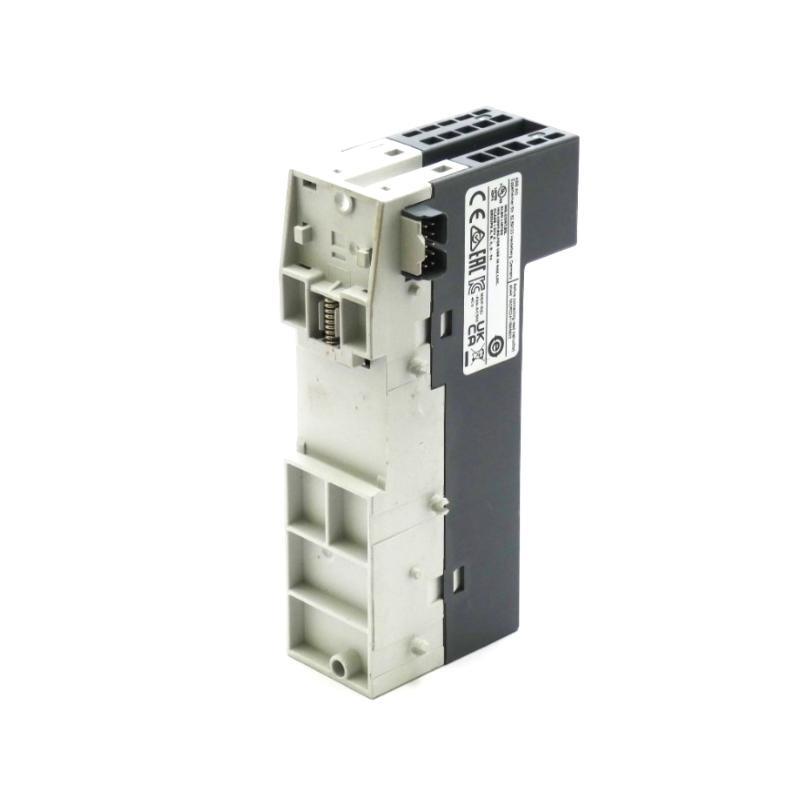

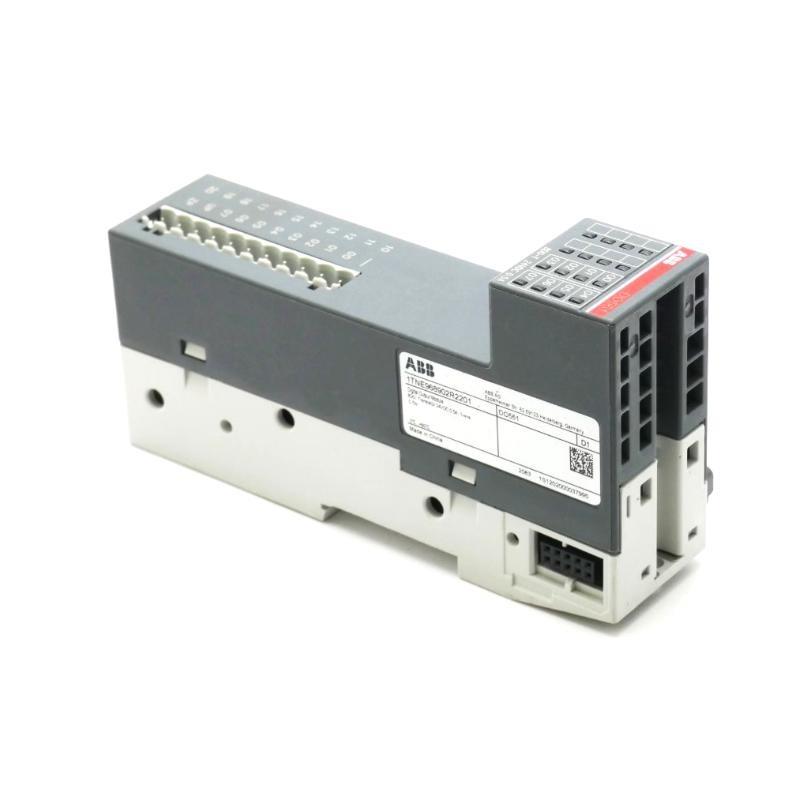

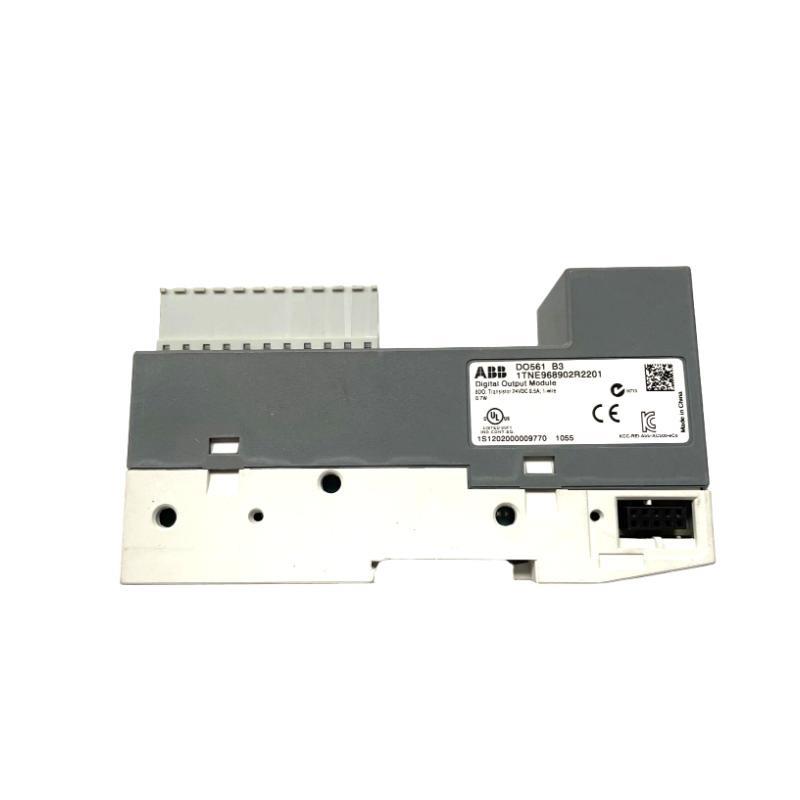

ABB DO561 1TNE968902R2201 S500 Digital Output Module 12-Month Warranty

Brand：ABB

Item No.：DO561 1TNE968902R2201

Product Type：S500 Digital Output Module

Product Origin：Sweden (SE)

Dimensions：75 x 135 x 34 mm

Weight：0.118 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance instructions support, stable and reliable service

Regular models are in stock for a long time, the inventory is stable, welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What types of loads can the DO561 module support?
It supports inductive loads (up to 0.5 Hz) and lamp loads (up to 11 Hz, max 5 W).

What is the rated output current per channel?
The maximum rated output current per channel is 0.5 A.

Does the module include overload or short-circuit protection?
No, external 3 A fast-blow fuses are required for each channel.

Is the module galvanically isolated?
Yes, there is galvanic isolation between the output group and the rest of the module.

What mounting orientations are supported?
Both horizontal and vertical mounting are supported. In vertical orientation, output loads must be reduced by 50% per group.

Does each channel have status indication?
Yes, each channel is equipped with a yellow LED to indicate output status.

What is the maximum surge voltage the module can withstand?
The module can withstand up to 35 V DC for 0.5 seconds.

What are the module’s physical dimensions and weight?
The module measures 75 x 135 x 34 mm and weighs approximately 0.118 kg.
