Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

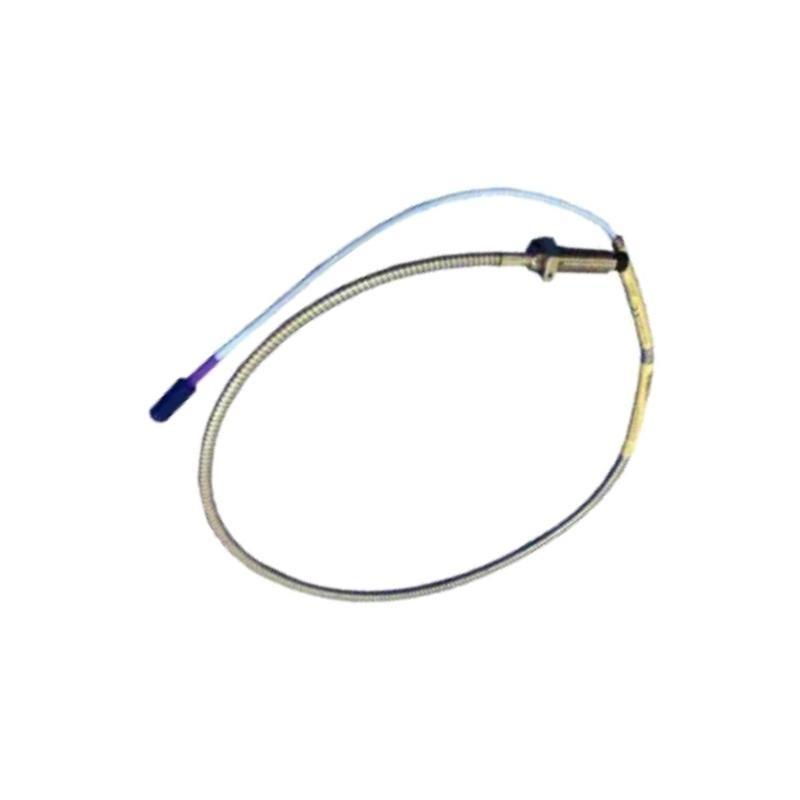

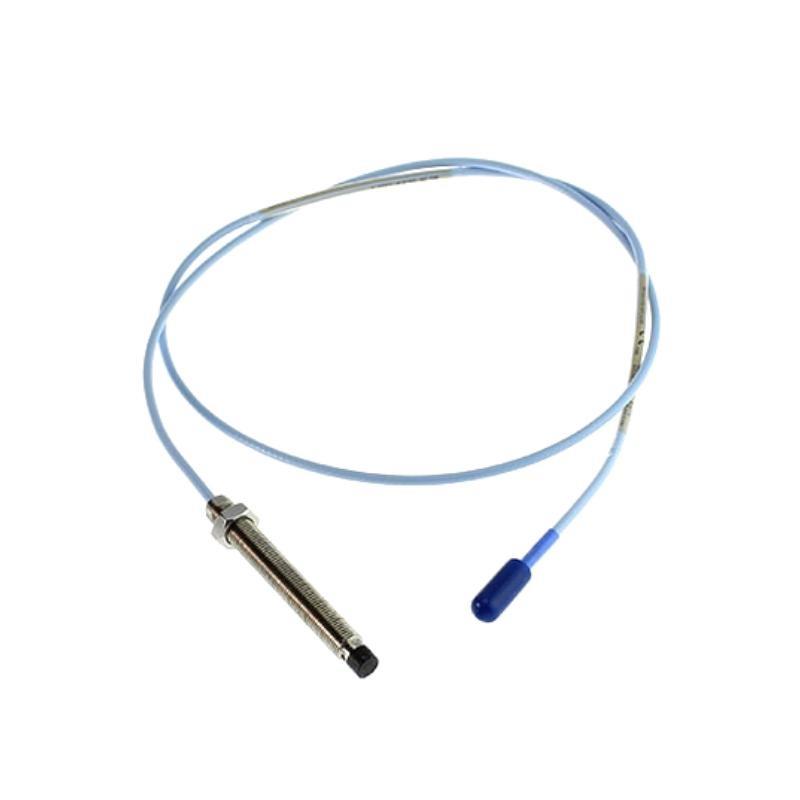

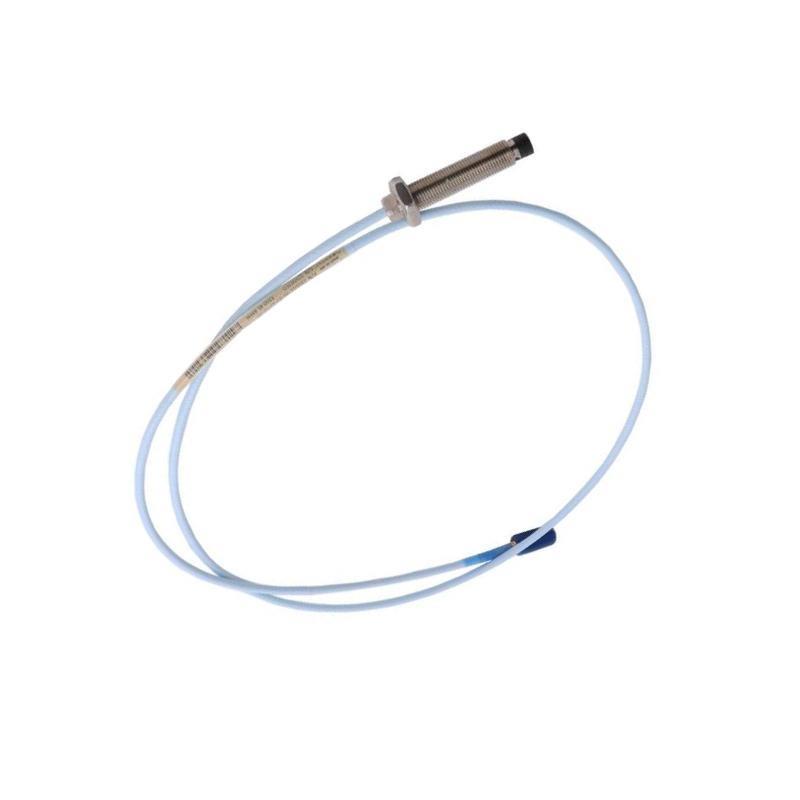

Bently Nevada 330171-00-40-10-02-00 3300 Series 5 mm Eddy-Current Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330171-00-40-10-02-00

Product Type：3300 Series 5 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 5 mm; probe body length 40 mm; cable length 1.0 m

Weight：0.37 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main purpose of the 330171-00-40-10-02-00 proximity probe?
It is used to measure shaft vibration, displacement, and axial position in rotating machinery using eddy-current sensing technology.

What does the “330171” model series represent?
It identifies a 3300 Series 5 mm proximity probe designed for industrial machinery condition monitoring.

What does the “40-10-02-00” configuration indicate?
It specifies a 40 mm probe body length, a 1.0 m integral cable, a ClickLoc connector, and a standard configuration without special approvals.

Which monitoring systems are compatible with this probe?
The probe is designed to operate with Bently Nevada 3300 XL Proximitor Sensors and associated monitoring modules.

Is this probe suitable for harsh industrial environments?
Yes, the stainless-steel construction and robust design make it suitable for oil-contaminated and high-vibration environments.

What type of output signal does the probe provide?
It provides an analog voltage output proportional to the measured displacement or vibration.

What is the operating temperature range of this proximity probe?
The probe operates reliably from –35 °C to +177 °C.

What are the physical dimensions and weight of this probe?
The probe has a 5 mm tip diameter, a 40 mm body length, a 1.0 m cable, and a total weight of approximately 0.37 kg.
