Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

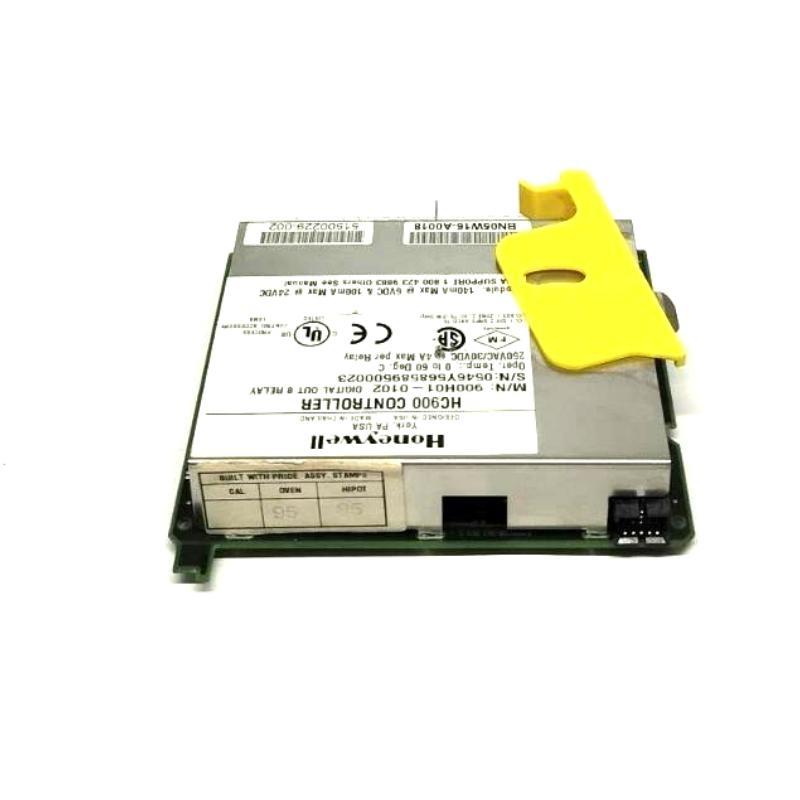

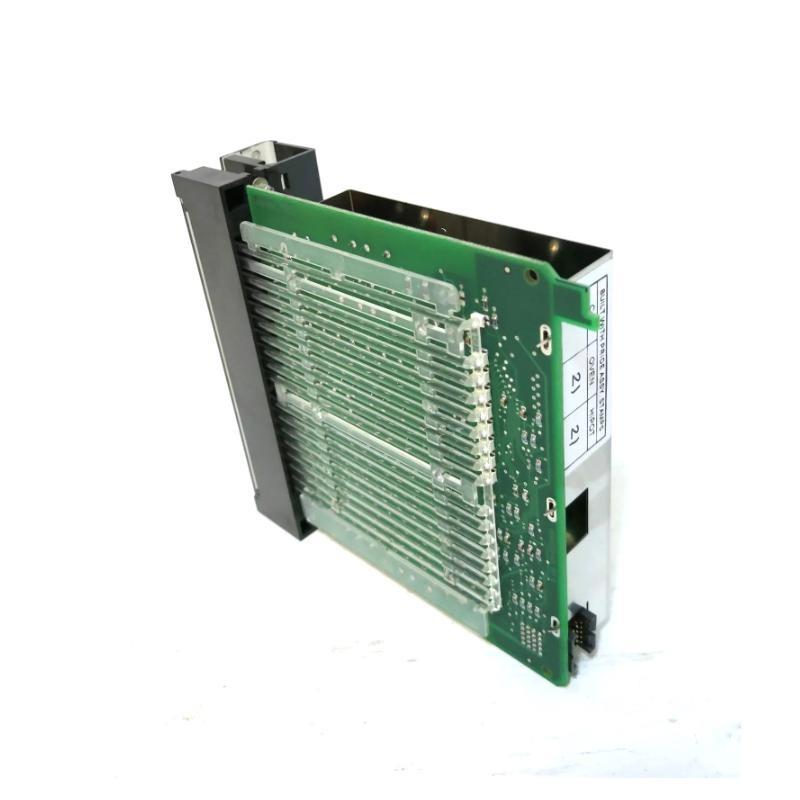

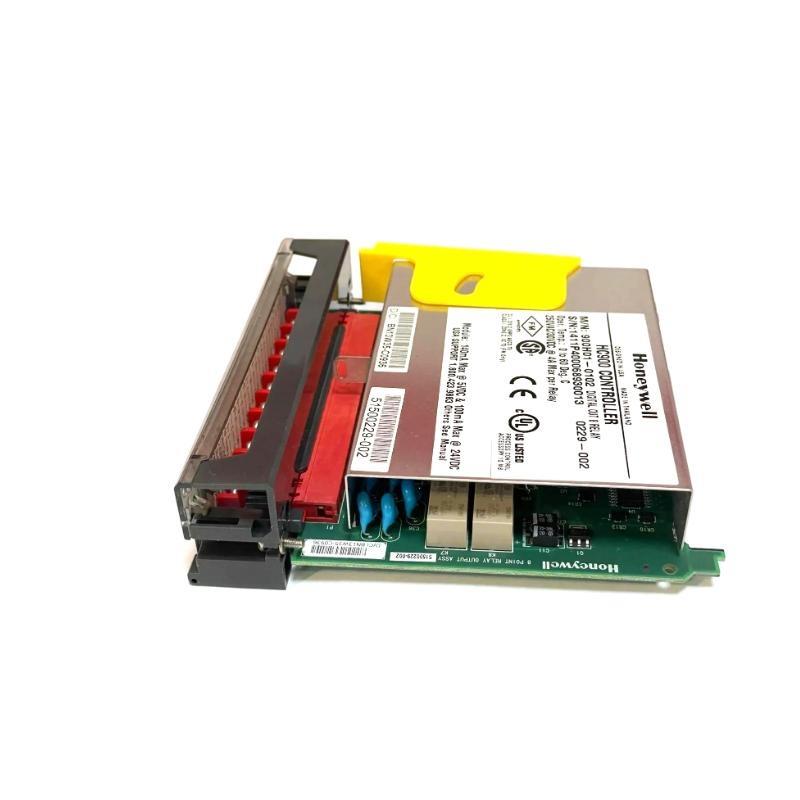

Honeywell 900H01-0102 Relay Output Module Original

Brand：Honeywell

Item No.：900H01-0102

Product Type：Relay Output Module

Product Origin：USA

Dimensions：137 x 35.6 x 137.16 mm

Weight：0.425 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, responsive service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

Does the module provide isolation between relays?
Yes, each relay contact is isolated from others and from logic circuitry.

What is the maximum current load per relay output?
4A for resistive loads and 0.5A for incandescent lamps at 240VAC or 30VDC.

Is hot swapping supported?
Yes, the module can be inserted or removed while the controller is powered, but field terminal block power should be disconnected first.

Are fuses included in the module?
No, fuses are not included. External fusing at the field device is recommended.

Are there LED indicators for channel status?
Yes, each output channel has a green LED that indicates when the channel is ON.

What types of loads can this module drive?
It can drive resistive and incandescent lamp loads. For inductive loads, external protection is needed.

What is the switching response time?
OFF to ON is up to 11 ms, and ON to OFF is up to 8 ms.

What is the expected service life of the relay?
Mechanical life is rated at 50 million cycles, and electrical life at 100,000 operations depending on load type.
