Honeywell 900PSM-0001 ControlEdge HC900 Power Status Module Fast Shipping!

Frequently Asked Questions (FAQ)

What is the primary function of the 900PSM-0001 module?
The module is designed to monitor and report the status of power supplies in ControlEdge HC900 systems, particularly in redundant configurations.

Can the module be hot-swapped during system operation?
Yes, the 900PSM-0001 supports hot insertion and removal without shutting down the controller power.

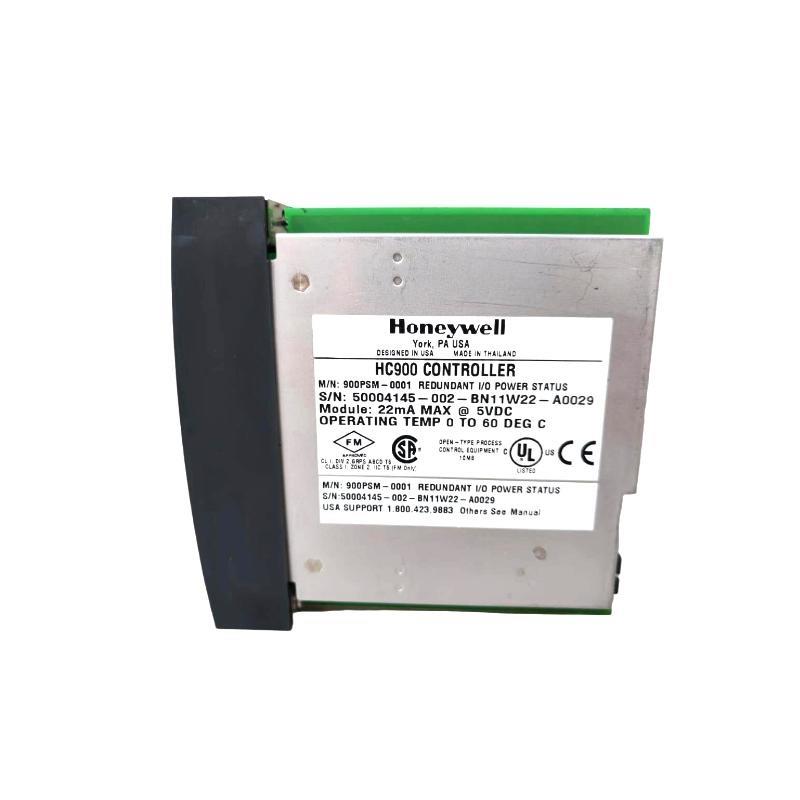

What certifications does the 900PSM-0001 module hold?
It is certified for CE, UL, CSA, FM, and ATEX standards, ensuring safety and compliance in industrial and hazardous locations.

How is the module mounted in a control system?
It is mounted using a standard 35mm DIN rail, making it compatible with typical industrial enclosures.

Does the module feature protective environmental coating?
Yes, it has conformal coating suitable for G3-level harsh environments, except for the PSU module.

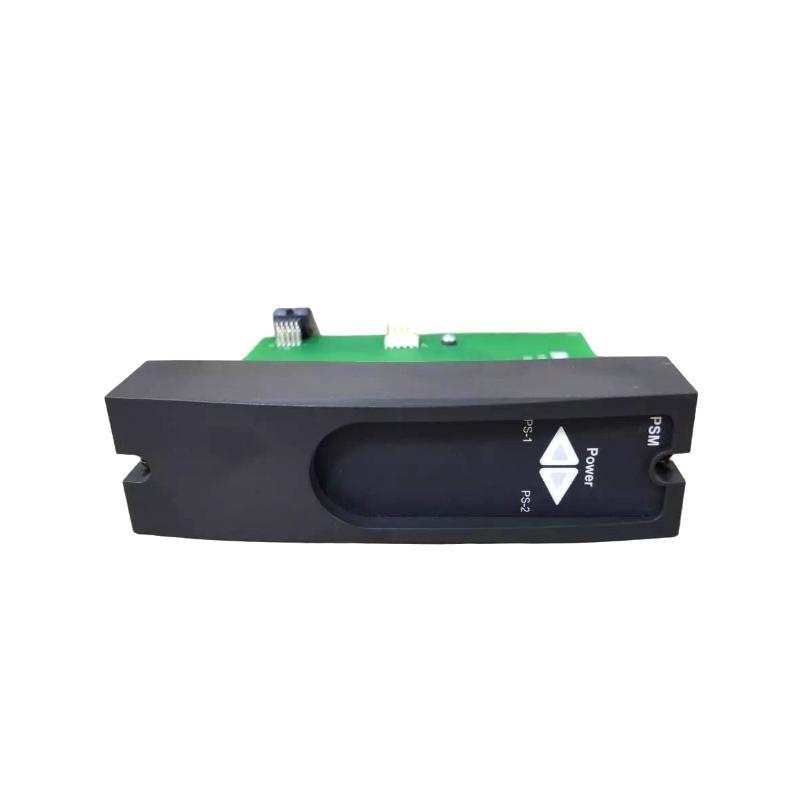

Are LED indicators available for status monitoring?
Yes, the module has tri-color LEDs to indicate operational status: green (OK), red (fault), and amber (override/forced mode).

Does the module operate independently or does it require a specific power range?
The module does not provide power itself but monitors the 5V and 24V supplies delivered by system power modules such as 900P01 or 900P24.

What is the power load impact of the module?
Very minimal; it only consumes approximately 0.1 W, ensuring negligible impact on system power budgets.
