Product Introduction

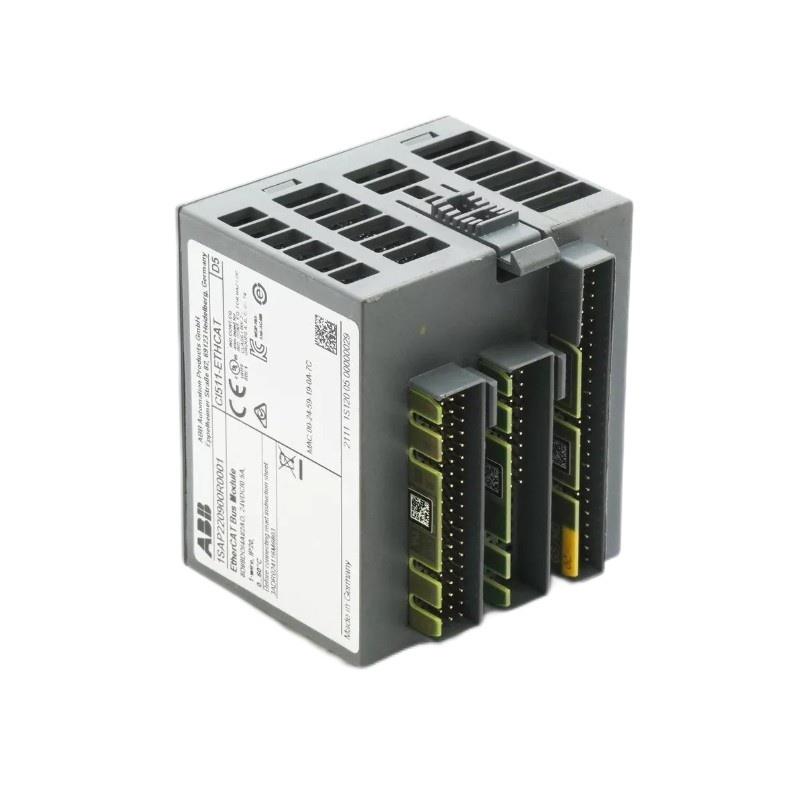

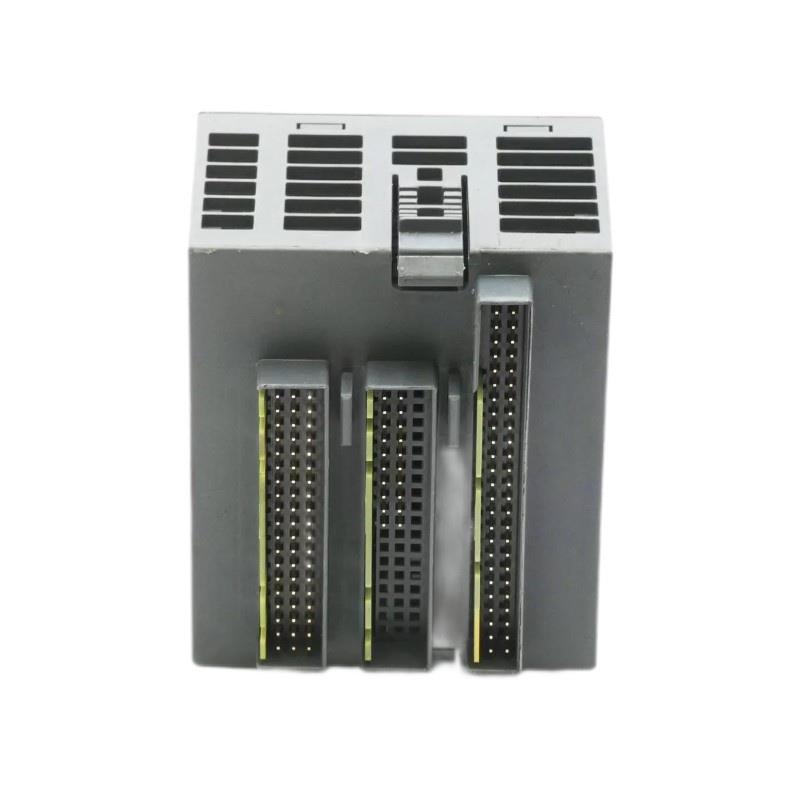

ABB CI511-ETHCAT 1SAP220900R0001 S500 Interface Module New In Stock

Brand：ABB

Item No.：CI511-ETHCAT 1SAP220900R0001

Product Type：S500 Interface Module

Product Origin：Sweden (SE)

Dimensions：62 x 76 x 67.5 mm

Weight：0.138kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

Large stock, diverse series, adapt to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the function of CI511-ETHCAT?
It serves as an EtherCAT interface module with integrated digital and analog I/O for high-speed automation tasks such as electronic cam switching.

How many I/O channels does the CI511-ETHCAT module have?

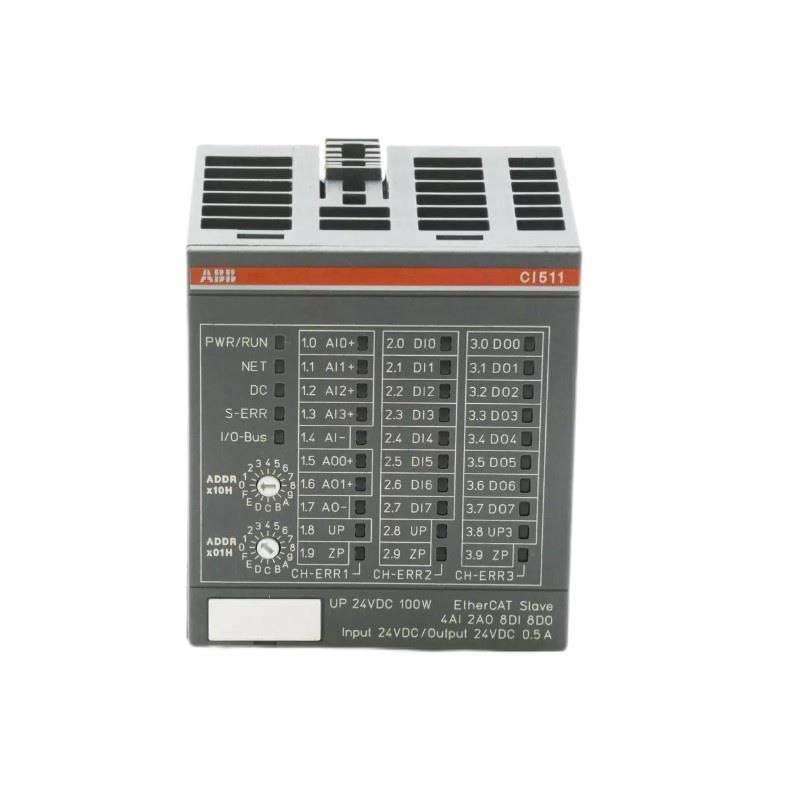

It includes 8 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs.

What communication protocol does this module use?
It uses EtherCAT with two RJ45 ports supporting 10/100 Mbit/s full-duplex communication.

Can CI511-ETHCAT be used in vertical mounting?
Yes, but digital output loads must be reduced by 50% at +40 °C during vertical mounting.

Is the module protected against electrical faults?
Yes, it features protections against short circuits, overvoltage, and reverse polarity.

What is the power supply requirement for this module?
The rated supply is 24 V DC; UP for inputs and UP3 for outputs with a maximum terminal load of 10 A.

Is configuration and diagnostics software-supported?
Yes, the module is configured and diagnosed using ABB’s PS501 Control Builder Plus.

What type of analog signals can the module handle?
It supports ±10V, 0–10V, 0/4–20 mA current signals, and RTD sensors like Pt100, Pt1000, and Ni1000.
