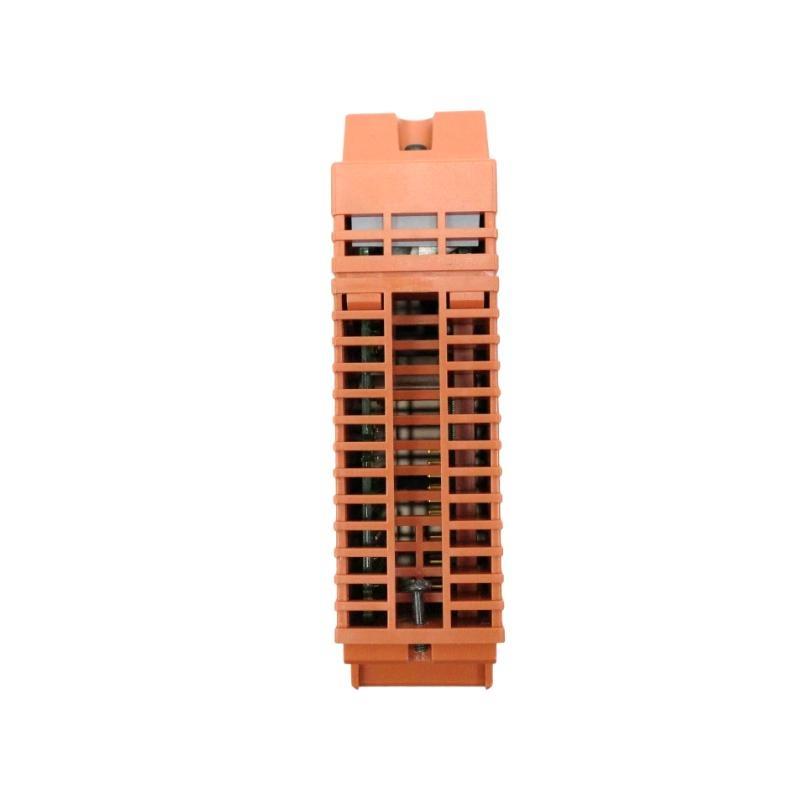

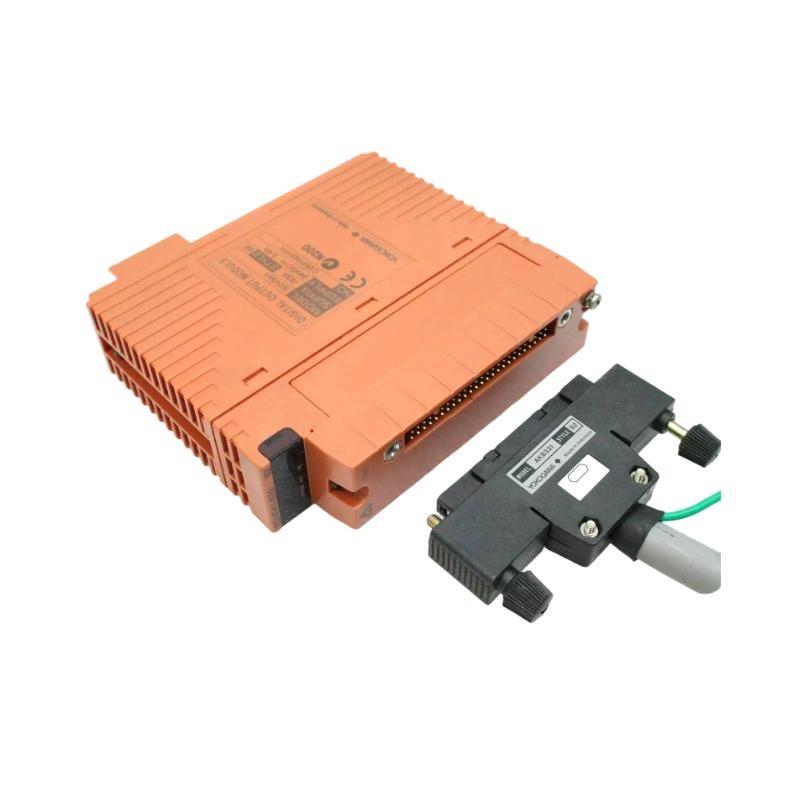

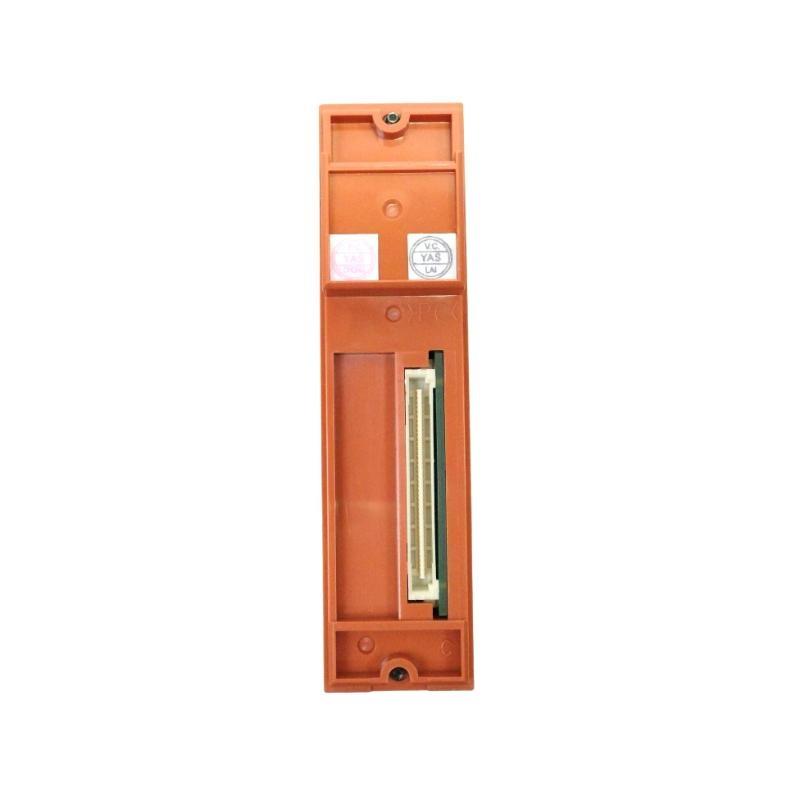

Yokogawa SDV541-S33 Digital Output Module Unbelievable Prices!

Frequently Asked Questions (FAQ)

What is the maximum output current per channel for the SDV541-S33?
Each output channel can deliver up to 0.2 A, with a total maximum output current of 3.2 A.

What is the minimum load current requirement per channel?
The minimum required load current for each channel is 35 mA to maintain proper operation.

Is the SDV541-S33 module electrically isolated?
Yes, the module provides isolation at the channel level to prevent interference and ensure safety.

What are the power supply requirements for this module?
The external power supply must be 24 V DC with a tolerance of +20% / -10% and a current capacity of at least 3.4 A.

What types of field devices can this module control?
It can control devices such as relays, solenoid valves, indicator lamps, and other 24 V DC actuators.

What wiring methods are supported?
The module supports pressure clamp terminal blocks, MIL connectors, and dedicated signal cables (AKB331 or AKB651).

Is there any leakage current when the output is turned off?
Yes, the leakage current when the output is off is up to 1.6 mA.

Can the SDV541-S33 be used in redundant configurations?
Yes, the module supports dual-redundant setups when paired with appropriate terminal blocks and cabling.
