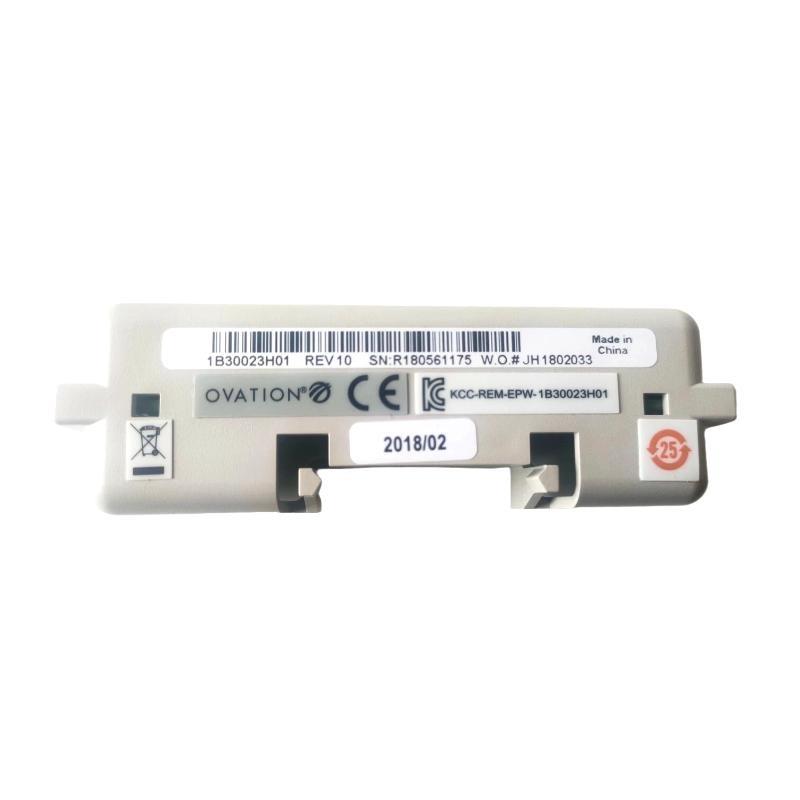

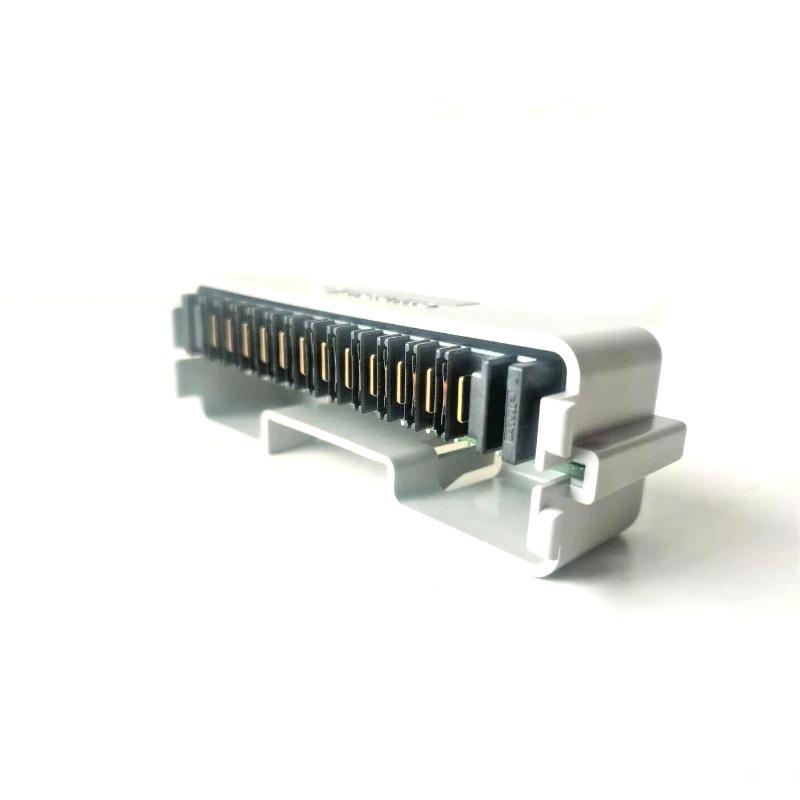

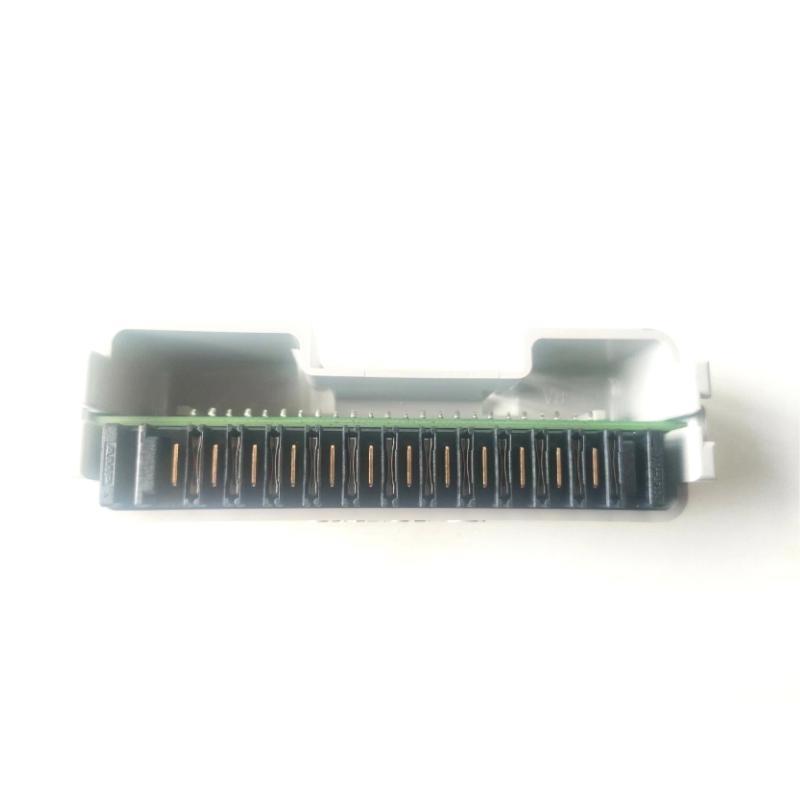

OVATION 1B30023H01 I/O Bus Terminator Module 12-Month Warranty

Frequently Asked Questions (FAQ)

What is the primary function of this module?
It terminates the Ovation I/O bus to prevent signal reflections and maintain stable data communication.

Which Ovation system versions is it compatible with?
It is typically compatible with all Ovation platforms that support I/O bus termination, both legacy and modern.

Should this module be installed in the last I/O slot?
Yes, it is designed to be installed at the end of the bus chain for proper termination.

Is it hot-swappable?
No, the module should be installed or replaced only when the system is powered down.

Does it require any programming or configuration?
No programming is required. It is a passive hardware module for physical termination only.

What happens if this module is not installed?
Absence of a terminator can result in signal reflections, communication faults, or system instability.

What modules are typically used with it?
It is commonly used with standard I/O modules such as 1B30035H01 and various analog/digital modules.

Is this module certified or tested?
Yes, it is a factory-certified Emerson spare part, subject to rigorous quality control.
