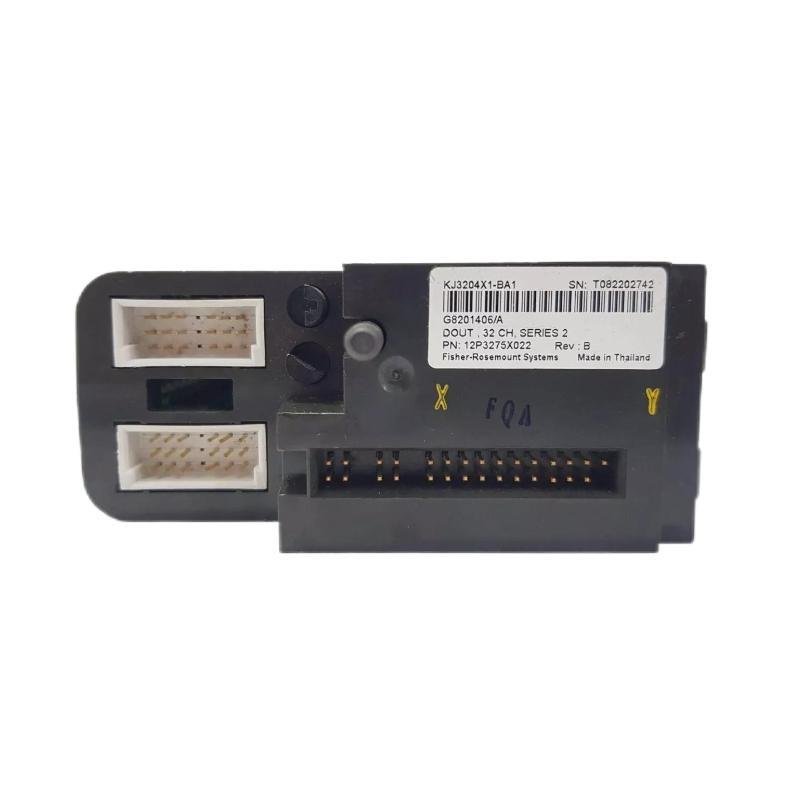

Emerson KJ3204X1-BA1 32-Channel 24 VDC High-Side Digital Output Module 12-Month Warranty

Frequently Asked Questions (FAQ)

How many output channels does the KJ3204X1-BA1 module support?
It supports 32 individual high-side 24VDC digital output channels.

What type of industrial environment is this module suitable for?
It is designed for Zone 2 hazardous environments with vibration, shock, and contaminant resistance.

Is hot-swapping allowed for this module?
No, hot-swapping is not permitted unless the area is non-hazardous and only one module is removed/inserted at a time.

Does this module require calibration?
No, the module does not require calibration during its lifecycle.

Can the module drive inductive loads directly?
As a high-side driver, it suits most digital applications. For inductive loads, external protection may be needed.

What is the total current capacity of the module?
The card supports a total current of up to 3.2 A (24VDC) with a maximum of 100 mA per channel.

Are there any wiring constraints for this module?
Yes, the terminal block must be keyed to B4 to match the module.

Can the module be disassembled for repair?
No, it contains no user-serviceable parts. Faulty units should be replaced entirely.
