Product Introduction

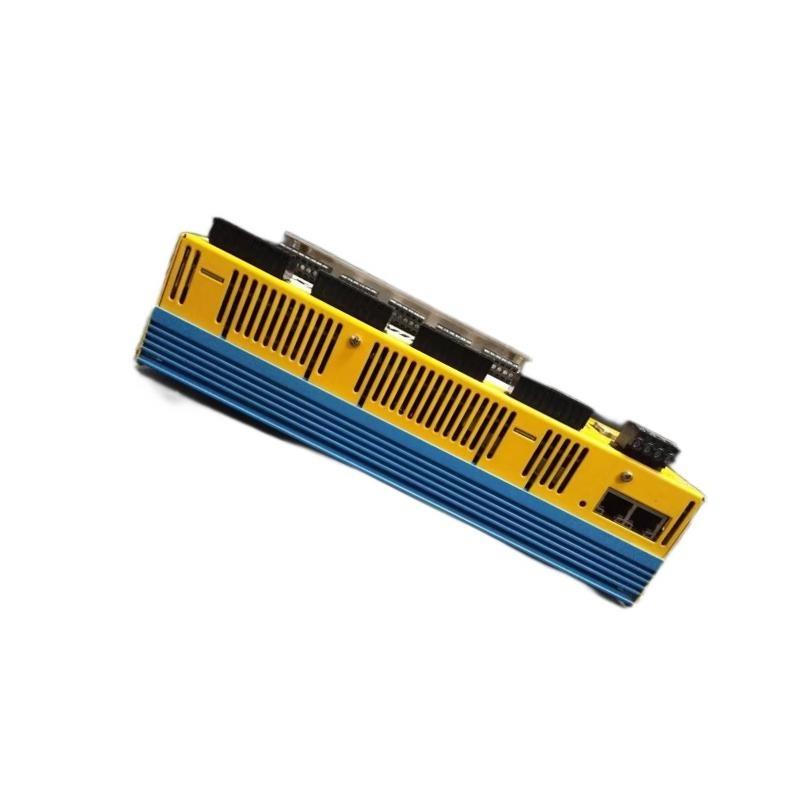

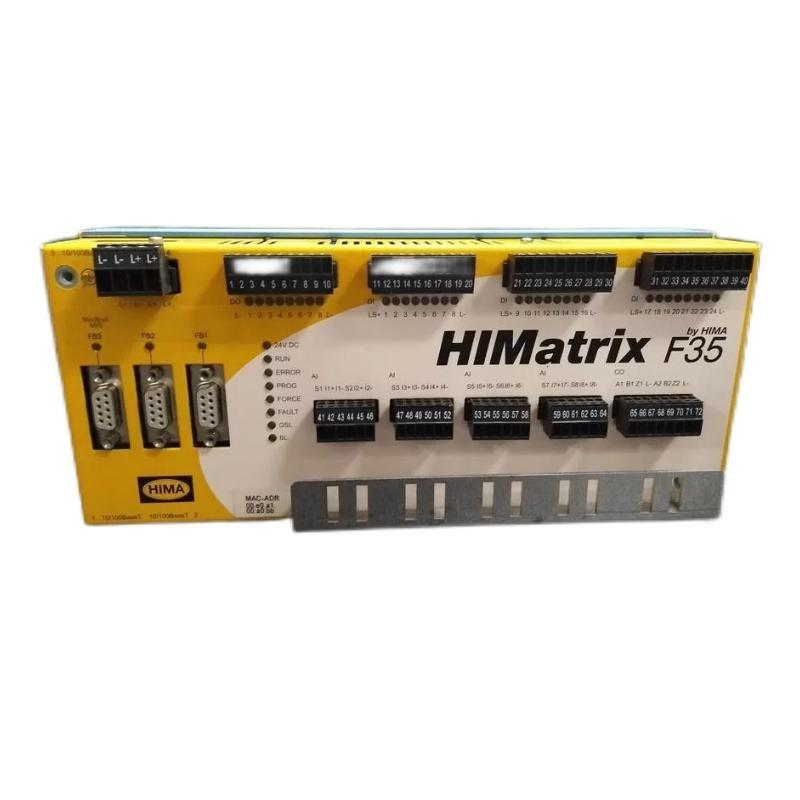

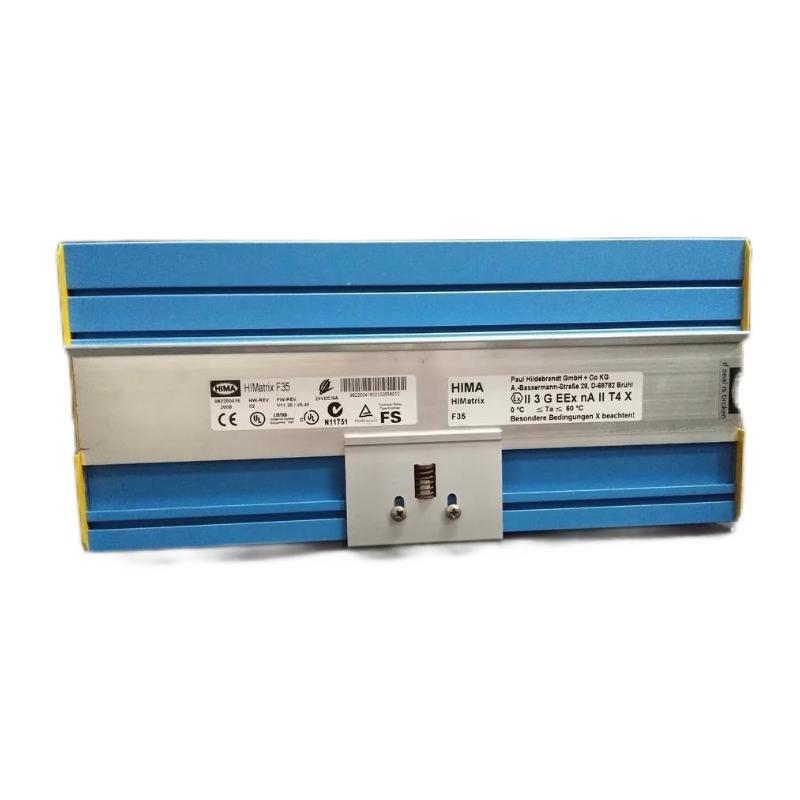

HIMA F35 010 30 HIMatrix Safety-Related Controller 12-Month Warranty

Brand：HIMA

Item No.：F35 010 30

Product Type：HIMatrix Safety-Related Controller

Product Origin：Germany

Dimensions：257 x 114 x 97 mm

Weight：1.2 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The import process is standardized, testing is supported, and after-sales service is guaranteed

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions

What types of input signals are supported by the F35 controller?
It supports 24 digital inputs (0–30 V threshold configurable) and 8 analog inputs (0–10 V or 0–20 mA with external shunt adapter).

What is the maximum current load for the output channels?
Channels 1–3 and 5–7 support up to 0.5 A at 60°C; channels 4 and 8 support up to 1 A (2 A at 50°C).

Is the controller certified for functional safety?
Yes, the F35 is TÜV-certified and meets IEC 61508 SIL3, IEC 62061, and EN ISO 13849-1 PL e standards.

Which communication protocols are supported?
Supported protocols include safeethernet, Modbus TCP, OPC, and EtherNet/IP (EtherNet/IP not supported in SILworX environment).

Does the analog input support line fault detection?
Analog input channels do not monitor for line faults by default but fault conditions can be handled via software logic using status codes.

What are the environmental requirements for installation?
Operating temperature range is 0…+60 °C with IP20 protection; avoid high humidity or corrosive environments.

What are the power supply requirements?
Use a PELV or SELV 24 VDC power source with safe isolation and protect with a 10 A time-lag fuse.

Is the controller suitable for use in hazardous zones?
Yes, it is compliant with ATEX Zone 2 when installed in an enclosure that meets EN 60079-15 requirements and follows all specified conditions.
