Product Details

HIMA provide full solution, including hardware, software, engineering, to ensure safe production processes.

HIMA H41q/H51q Series——MS/HS/HRS(AK6/SIL3)

HIMA Himatrix Series——F20/F30/F31/F35/F60(AK6/SIL3)

Product Introduction

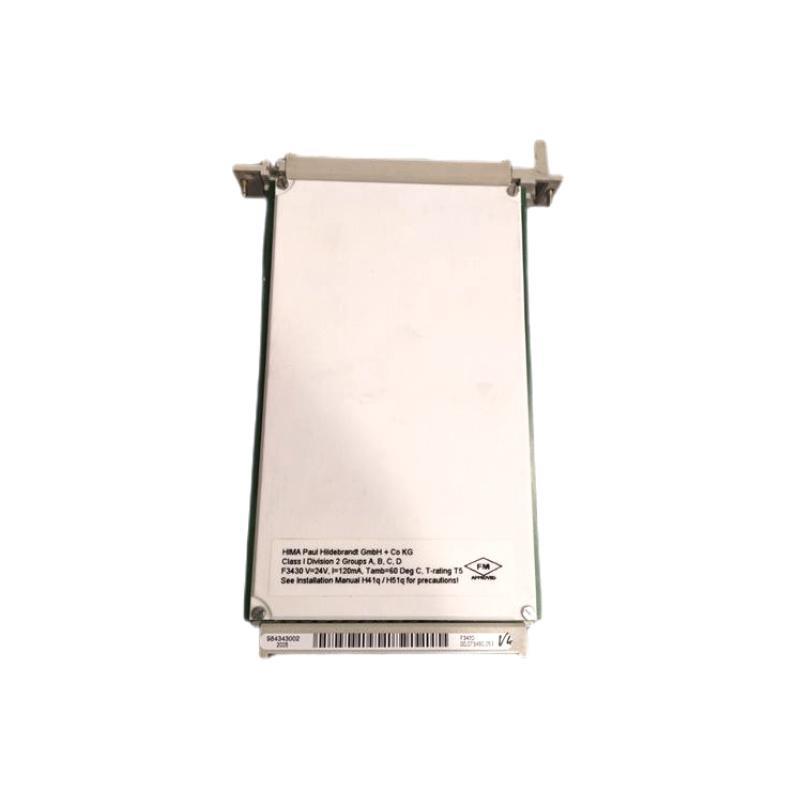

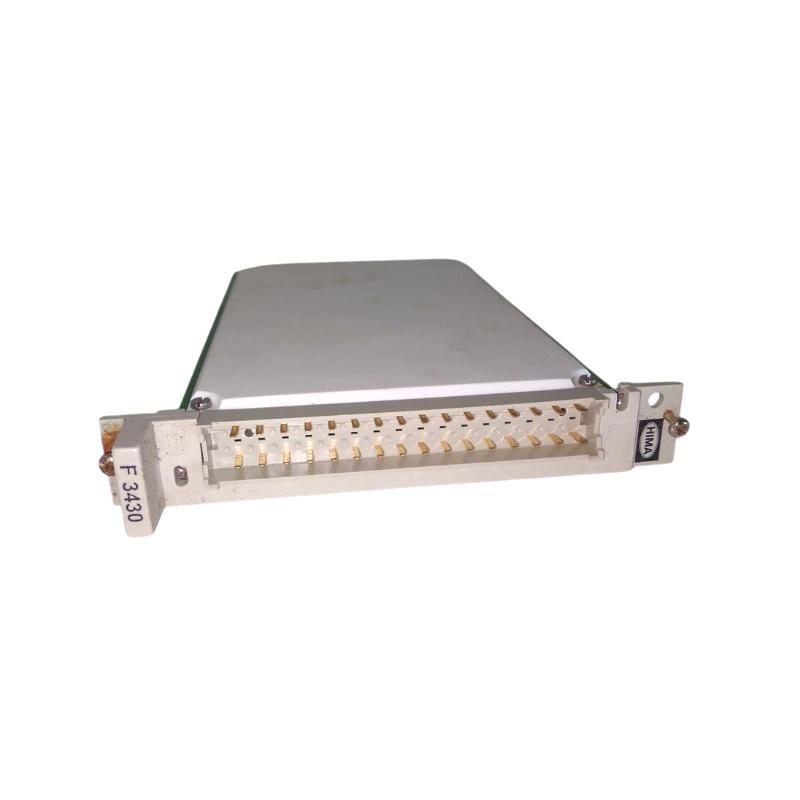

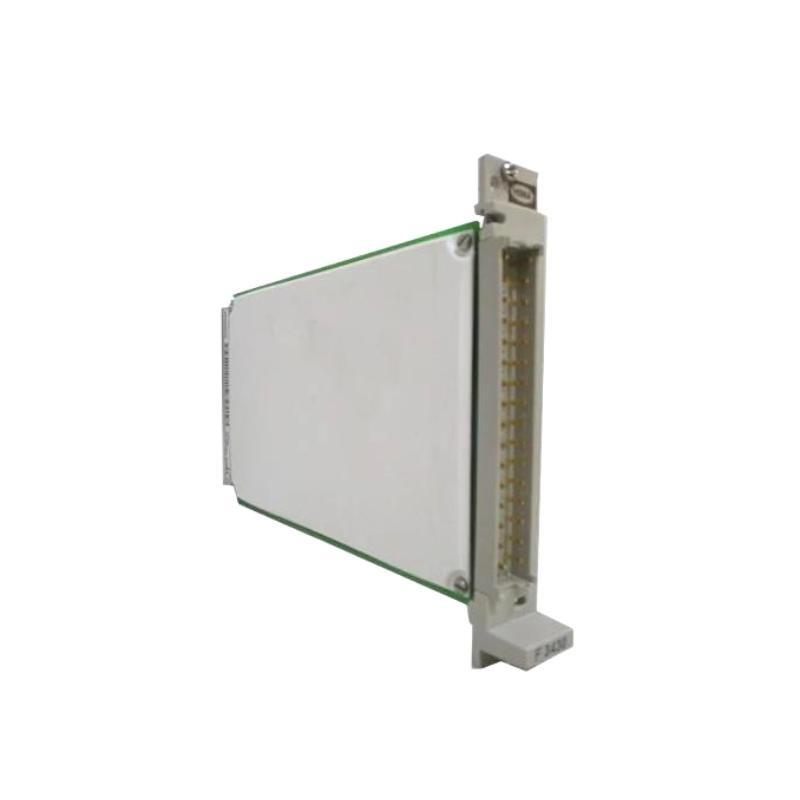

HIMA F3430 4-Fold Relay Module 100% New

Brand：HIMA

Item No.：F3430

Product Type：4-Fold Relay Module

Product Origin：Germany

Dimensions：120 x 45 x 100 mm

Weight：0.5 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many relay outputs does the HIMA F3430 support?
The module supports 4 independent relay output channels.

Does the module provide safe isolation?
Yes, it features safe isolation between input and output per EN 50178.

What is the maximum switching voltage supported?
The maximum switching voltage is 250 V AC or 110 V DC.

What is the switching capacity in DC operation?
At 30V DC: 120W, 70V DC: 50W, 110V DC: 30W (all non-inductive).

What are the typical timing characteristics?
Switching time: approx. 8 ms, reset time: 6 ms, bounce time: 1 ms.

What are the power supply requirements?
The module operates with 5 V DC (<100 mA) or 24 V DC (<120 mA).

What is the maximum fuse rating for output circuits?
The output circuits can be fused with a maximum of 2.5 A.

What are the dimensions and weight of the module?
The module measures 120 x 45 x 100 mm and weighs 0.5 kg.
