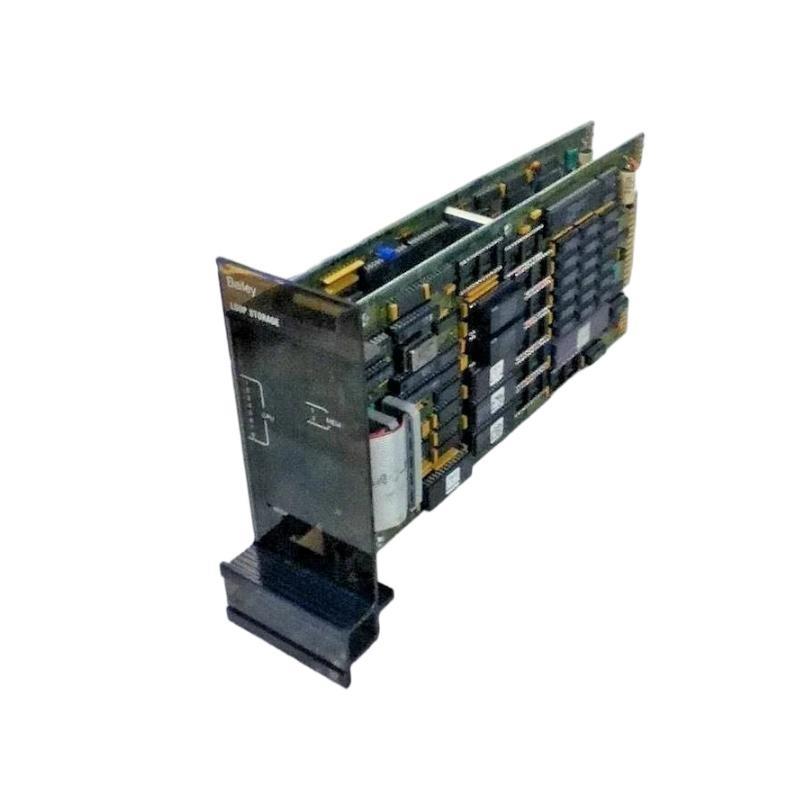

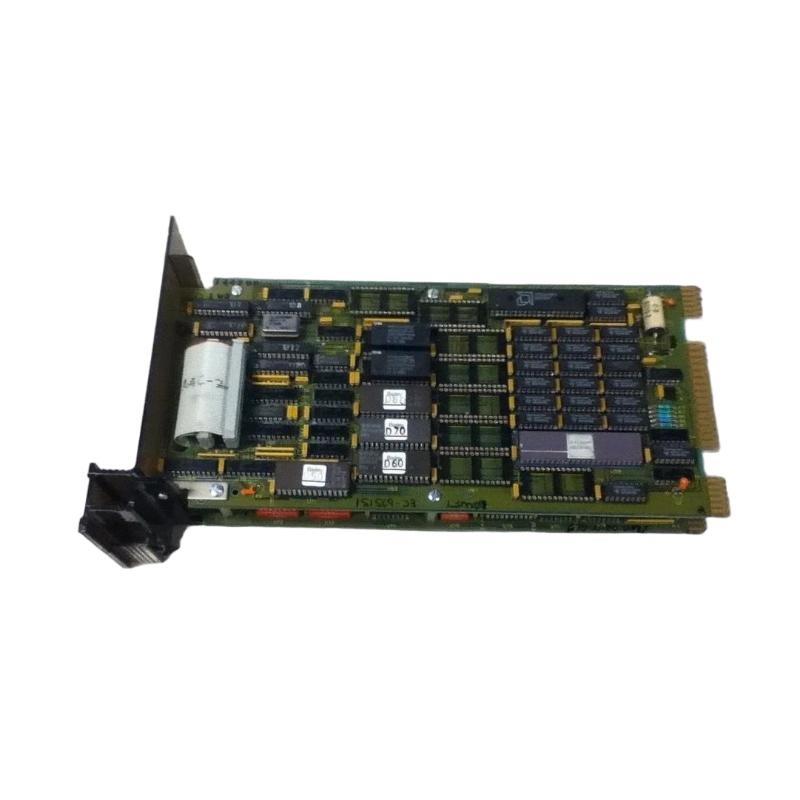

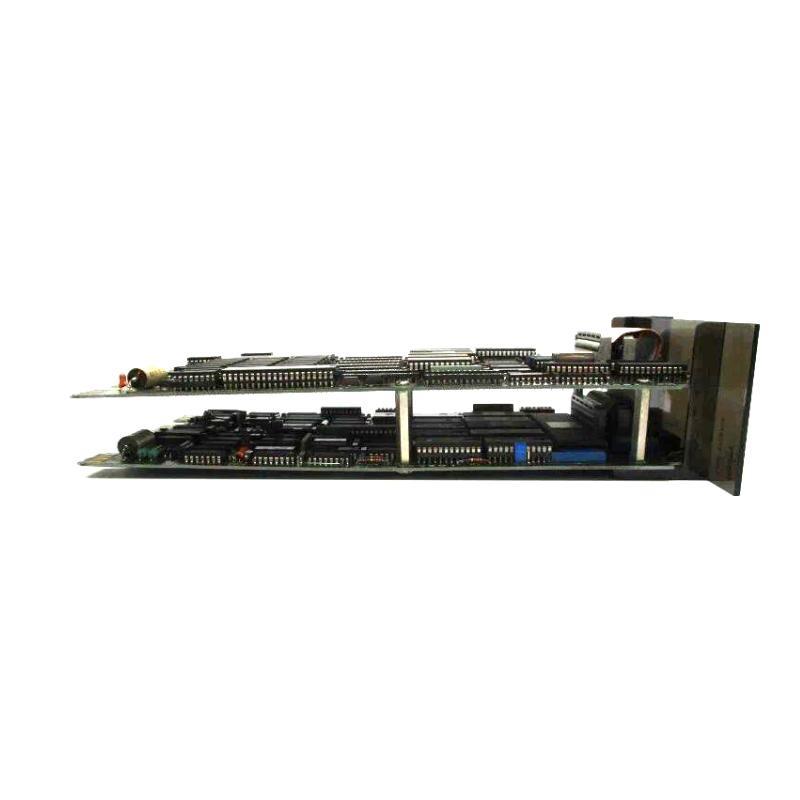

ABB Bailey NLSM01 INFI 90 Loop Storage Module New In Stock

Frequently Asked Questions (FAQ)

What is the function of the NLSM01 module in the INFI 90 system?
The NLSM01 functions as a loop storage module, temporarily storing data from the Plant Loop before it’s retrieved by the computer driver.

Which modules does the NLSM01 operate with?
It is used in conjunction with the NLIM02 Loop Interface Module and NBTM01 Bus Transfer Module as part of the NCIU02 interface.

What type of communication interface does NLSM01 use?
It communicates via RS-232 serial interface at a speed of 19,200 Baud.

How many Bailey tags can the NLSM01 module support?
The NLSM01 supports up to 2,500 Bailey tags when used with NCIU02.

How is the NLSM01 connected to the host computer?
It connects to the host via a 25-pin D-sub connector labeled “Terminal” on the NTMF01 termination unit, using an RS-232 serial cable.

Is IEEE-488 parallel communication supported by this module?
The module can support IEEE-488 via the optional NPBS01 module, but the driver software does not support this communication method.

Is NLSM01 compatible with all Bailey control systems?
No, it is specifically designed for the INFI 90 DCS and is not intended for use with Net 90 or Harmony systems without adaptation.

What are the physical dimensions and weight of the NLSM01?
The module measures 125 × 70 × 30 mm and weighs approximately 0.84 kg.
