Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

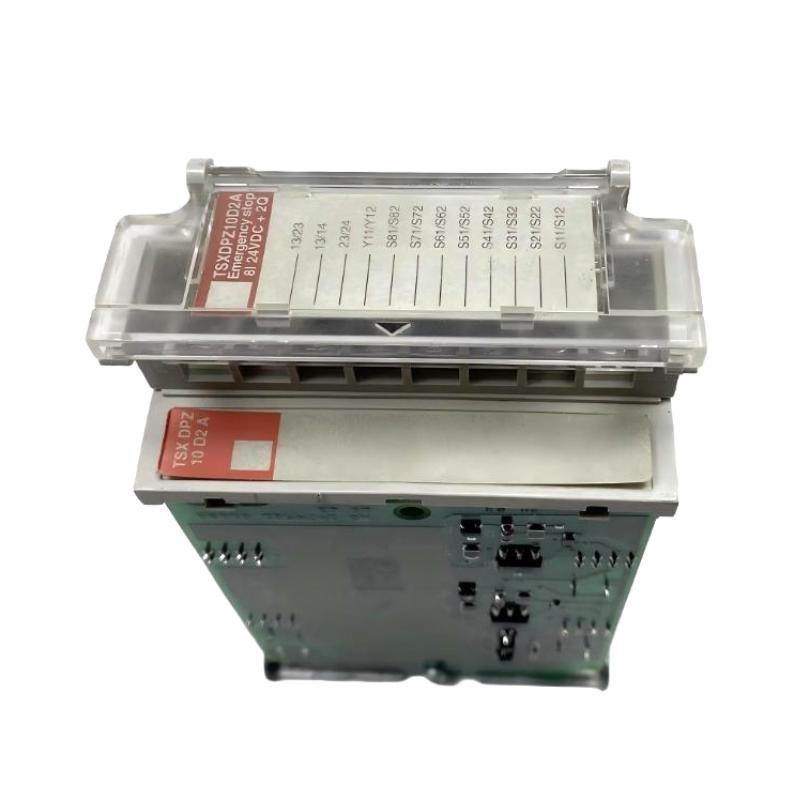

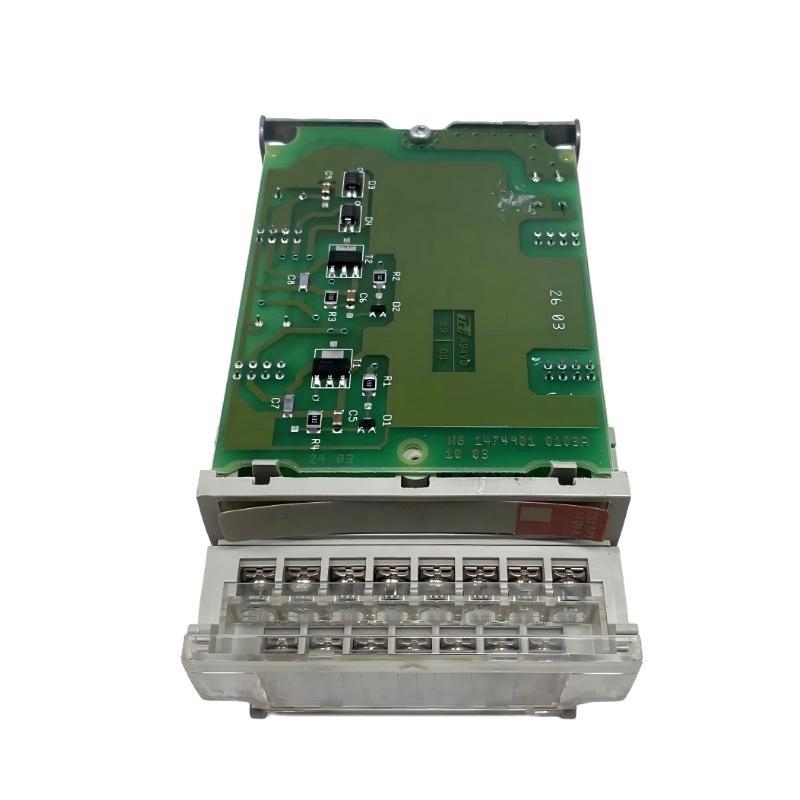

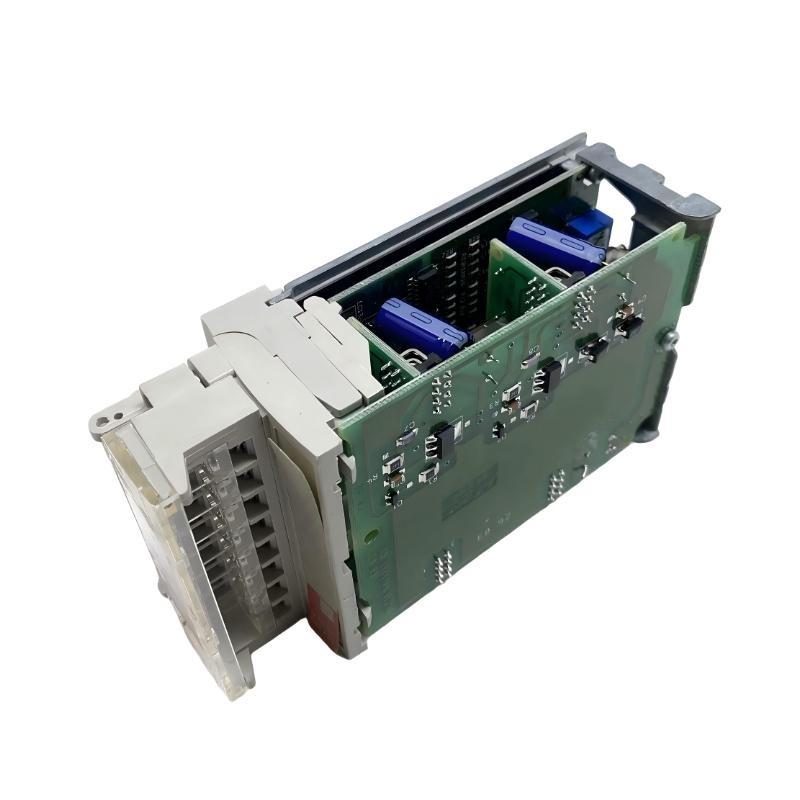

Schneider TSXDPZ10D2A Emergency Stop Monitoring Module Original

Brand：Schneider

Item No.：TSXDPZ10D2A

Product Type：Emergency Stop Monitoring Module

Product Origin：France

Dimensions：125 x 32 x 100 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance and explanation support, stable and reliable service

Flexible stocking of various models, support for quick response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the TSXDPZ10D2A module?
It monitors emergency stop circuits and safely interrupts machine operation when a fault or E-stop signal is detected.

How many safety input channels are supported?
The module provides two independent input channels to allow for redundant safety wiring.

Does the module support cross-circuit detection?
Yes, it detects cross faults between channels to prevent unsafe operation due to wiring errors.

What types of faults can be detected?
The module detects line breaks, short circuits, welded contacts, and incorrect reset conditions.

Is manual reset required after an emergency stop?
The reset mode can be configured for either manual or automatic reset depending on system design.

Can external contactors be monitored?
Yes, external device monitoring is supported through feedback contacts.

How is system status indicated?
Integrated LEDs indicate power status, input state, and fault conditions for clear diagnostics.

Is the module suitable for use in safety-rated control systems?
Yes, it is designed for integration into industrial safety systems that require reliable emergency stop supervision.
