Product Introduction

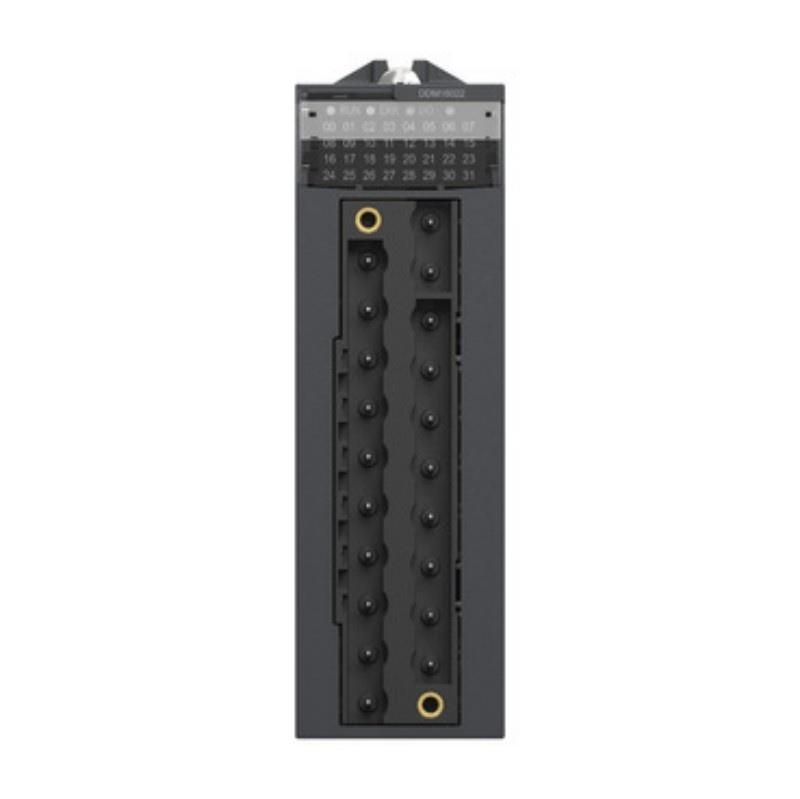

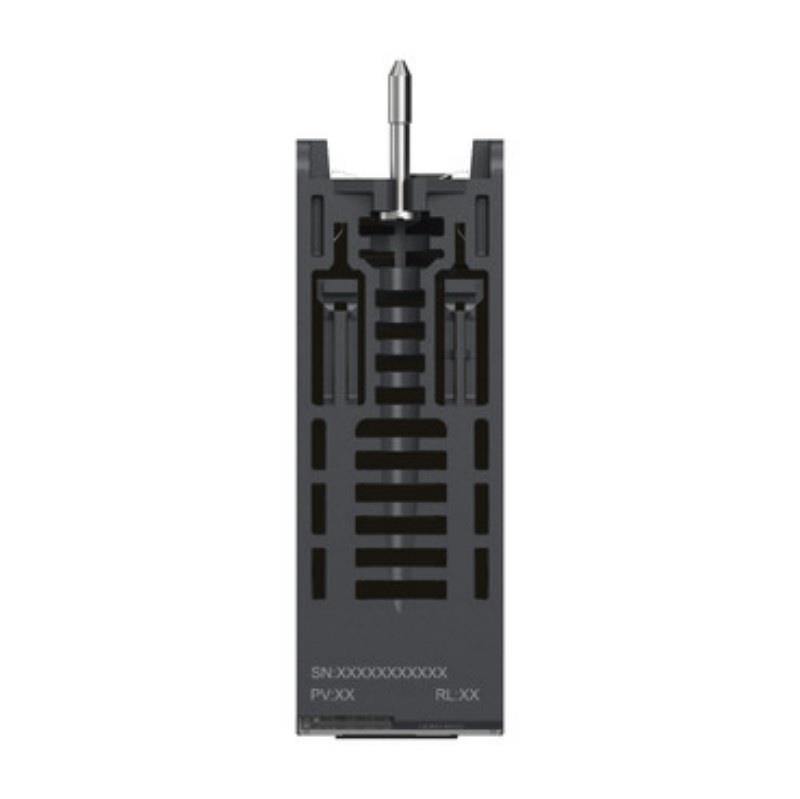

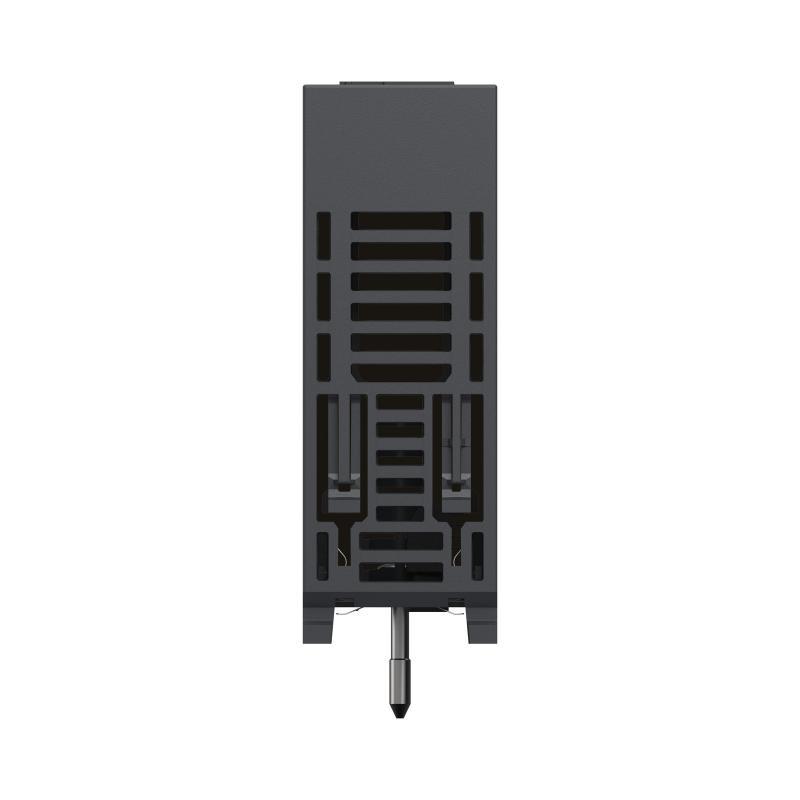

Schneider BMXDDM16022 Discrete Mixed I/O Module Fast Shipping!

Brand：Schneider

Item No.：BMXDDM16022

Product Type：Discrete Mixed I/O Module

Product Origin：France

Dimensions：160 x 100 x 35 mm

Weight：0.115 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Please contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Schneider BMXDDM16022 Discrete Mixed I/O Module Frequently Asked Questions

What types of proximity sensors are supported by BMXDDM16022?
It supports 2-wire and 3-wire proximity sensors compliant with IEC 60947-5-2 and IEC 61131-2 type 3.

What is the maximum output current per channel?
The maximum output current per channel is 0.5A.

What is the input and output voltage range for the module?
Input voltage is 24 V DC (positive), output voltage range is 19–30 V DC.

Does the module have short-circuit and overload protection?
Yes, it features current limiting, an electronic circuit breaker, and requires a 2A external fuse for short-circuit protection.

What are the module’s dimensions and weight?
The dimensions are 160 x 100 x 35 mm, and the weight is 0.115 kg.

What is the operating temperature range for this module?
The operating temperature range is 0–60°C, and storage temperature is -40–85°C.

Can the output channels be paralleled?
Yes, up to 2 output channels can be paralleled.

What is the typical power consumption of the module?
Typical power dissipation is 3.7 W; typical current consumption is 79 mA (3.3 V DC) and 59 mA (24 V DC).
