Name: GE IC695CHS012 PACSystems 12-Slot Universal Backplane 12-Month Warranty
Brand: GE Fanuc PLC
SKU: 6455
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

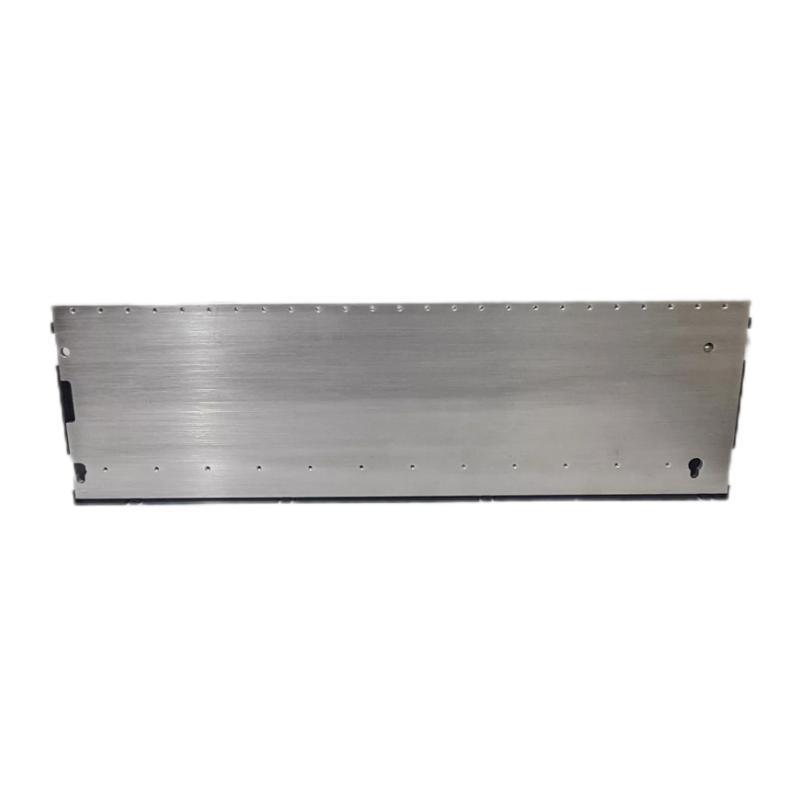

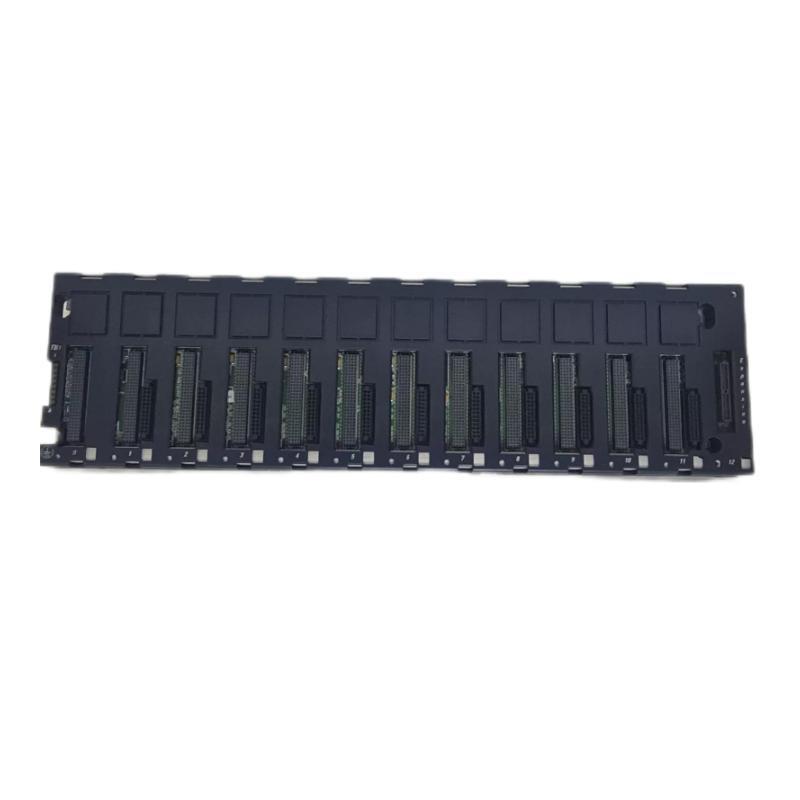

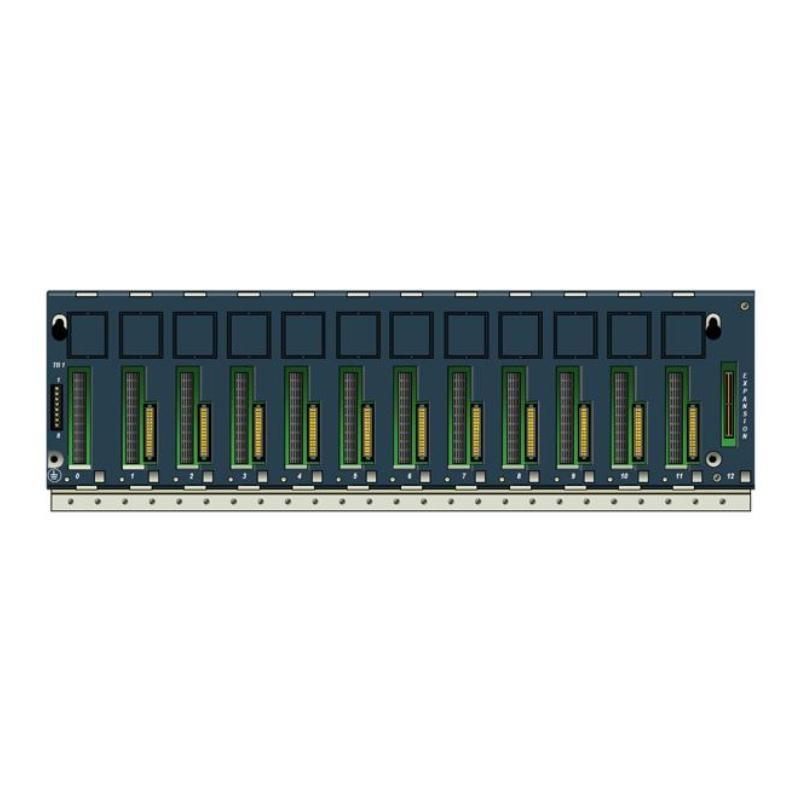

GE IC695CHS012 PACSystems 12-Slot Universal Backplane 12-Month Warranty

Brand：GE Fanuc

Item No.：IC695CHS012

Product Type：12-Slot Universal Backplane

Product Origin：USA

Dimensions：141.48 x 457.45 x 147.32 mm

Weight：1.58 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information can be checked, and supporting service guarantee

The inventory covers multiple brands and series, and supports fast delivery. Welcome to call for negotiation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many modules can be installed on the IC695CHS012 base?
Up to 12 modules can be installed, with slot 0 reserved for a power supply and slot 12 reserved for expansion.

Can the IC695CHS012 support both PCI and Serial modules?
Yes, each slot (except slot 0 and 12) has dual connectors for PCI-based and serial modules.

Can the CPU be installed in any slot?
The CPU can be installed in any slot except slot 12. CPU modules occupy two slots.

Is hot-swapping supported for I/O modules?
Yes, as long as the hot installation procedure is strictly followed per system manual GFK-2314.

What type of power supplies are compatible with slot 0?
Only IC695 power supplies are compatible. IC694 and IC693 power supplies are not supported.

How is grounding handled in the base?
A grounding bar is integrated into the backplane, allowing module shields to be grounded via M3 screws.

What precautions are required for hazardous location installation?
Ensure power is off before wiring or module replacement, and only use in Class I, Division 2 approved areas.

Can AC power supplies be used when the CPU is installed in slot 1?
No, if the CPU is in slot 1, only a single-width DC power supply can be used in slot 0. AC supplies must be placed elsewhere.
