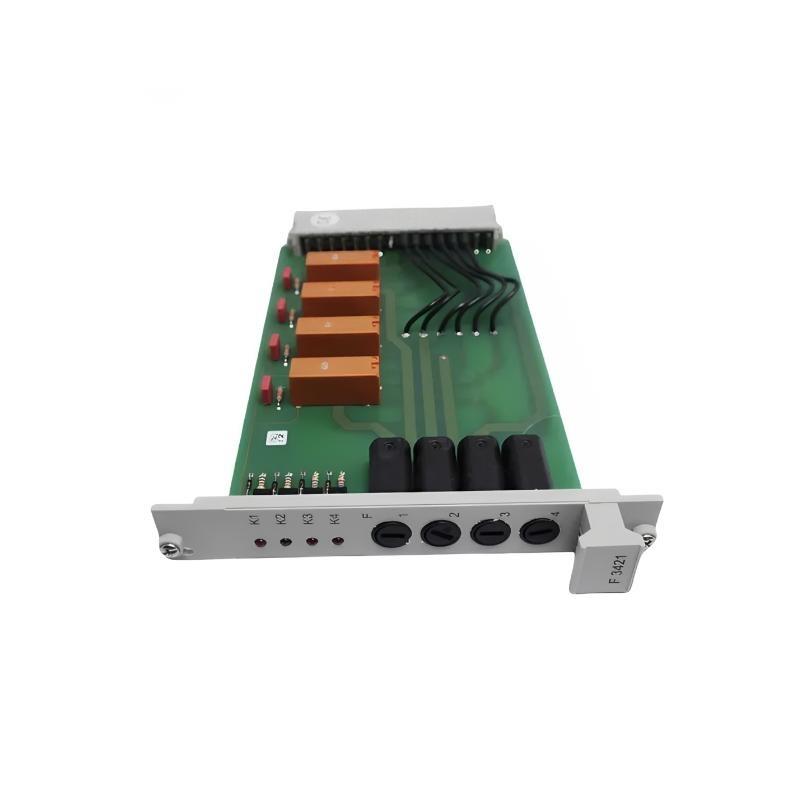

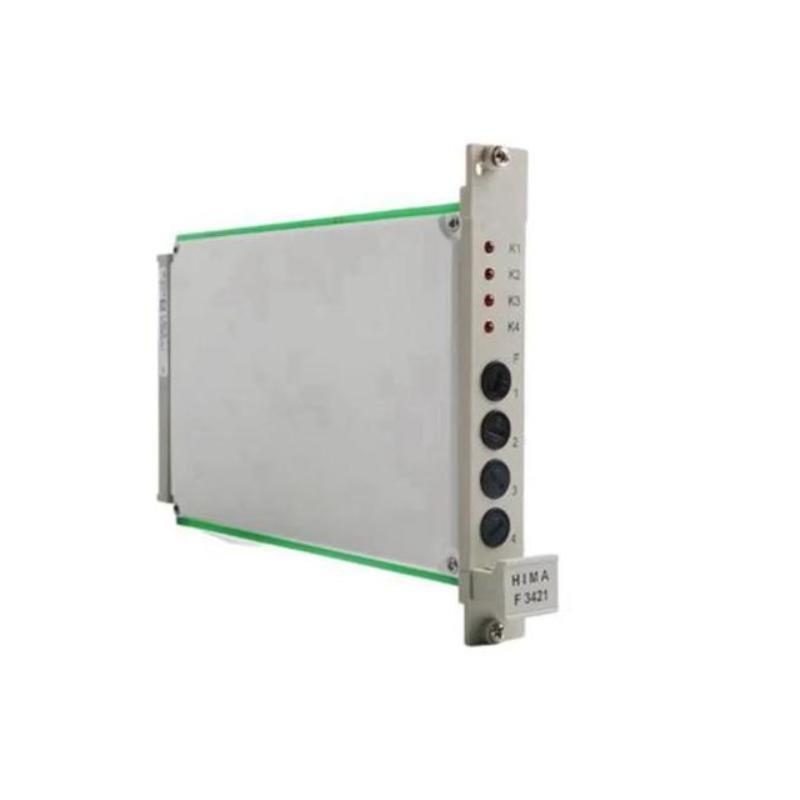

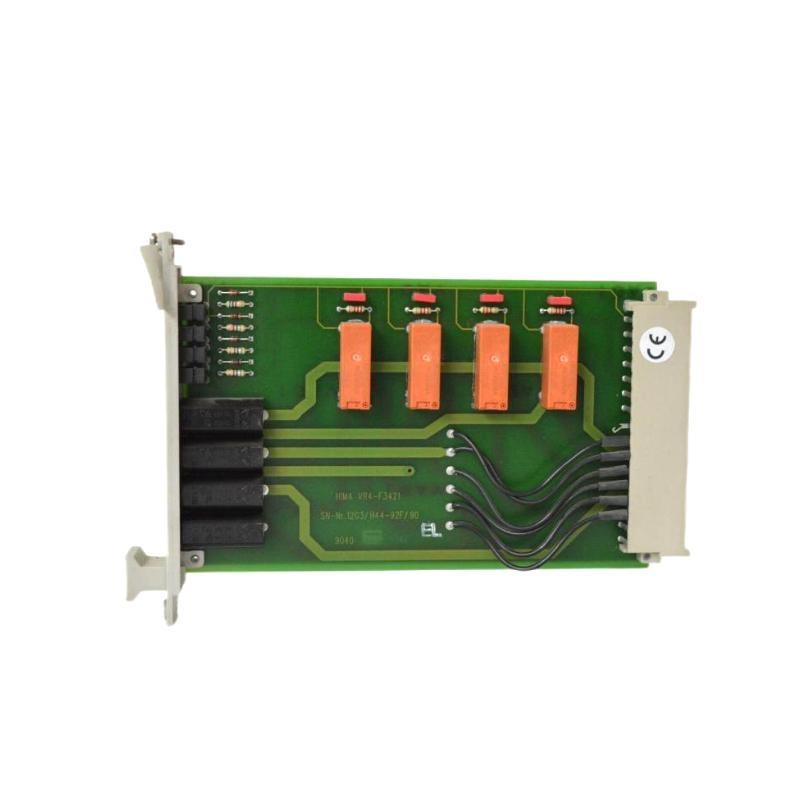

HIMA F3421 Planar F System Relay Amplifier Module Original

Frequently Asked Questions (FAQ)

What is the main function of the F3421 module?
The F3421 module is used to convert logic control signals into high-power relay outputs with electrical isolation, suitable for driving external loads safely.

Is the F3421 module compatible with redundant systems?
Yes, it can be integrated into redundant output structures to enhance system safety and reliability.

What is the maximum load capacity for the output contacts?
Each channel supports up to 250 V AC / 6 A or 30 V DC / 6 A.

Does the F3421 module meet any safety certification levels?
Yes, it is certified for SIL 3 compliance according to IEC 61508.

What is the operating temperature range of the module?
It operates from -20°C to +60°C, and can be stored at -40°C to +85°C.

How is the module installed?
It can be mounted on a DIN rail or within dedicated system slots.

What is the response time of the F3421 module?
The relay response time is less than 10 milliseconds, suitable for high-speed safety applications.

Can the F3421 module be replaced individually?
Yes, it supports hot-swapping, making maintenance and replacement convenient.
