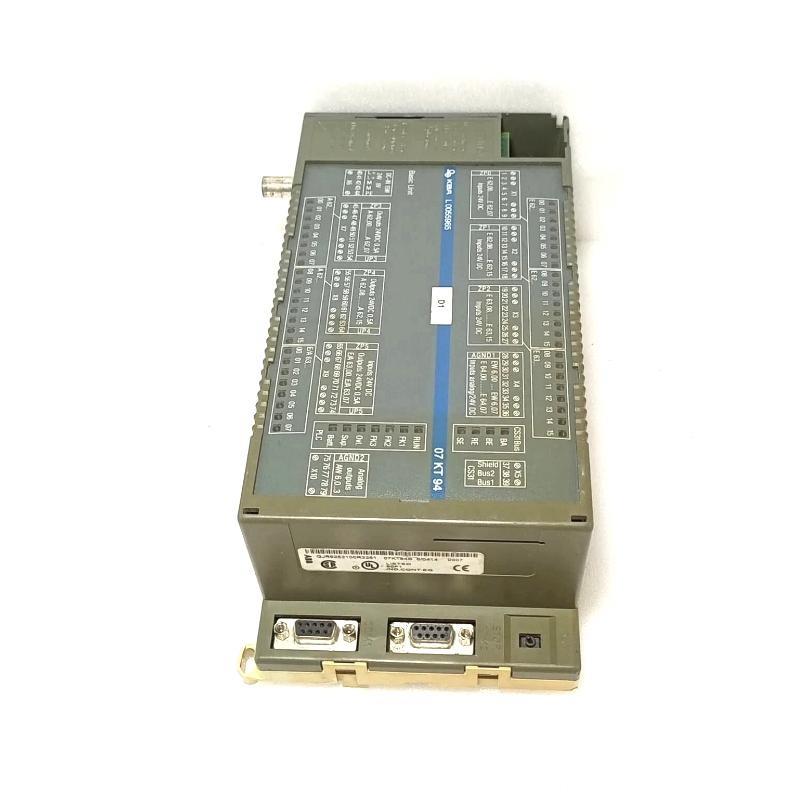

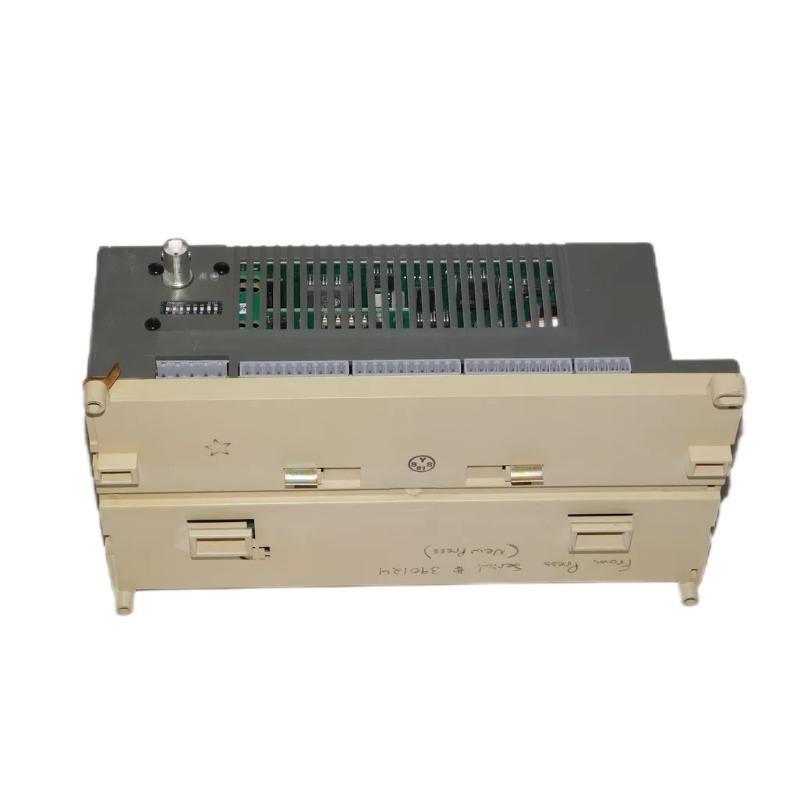

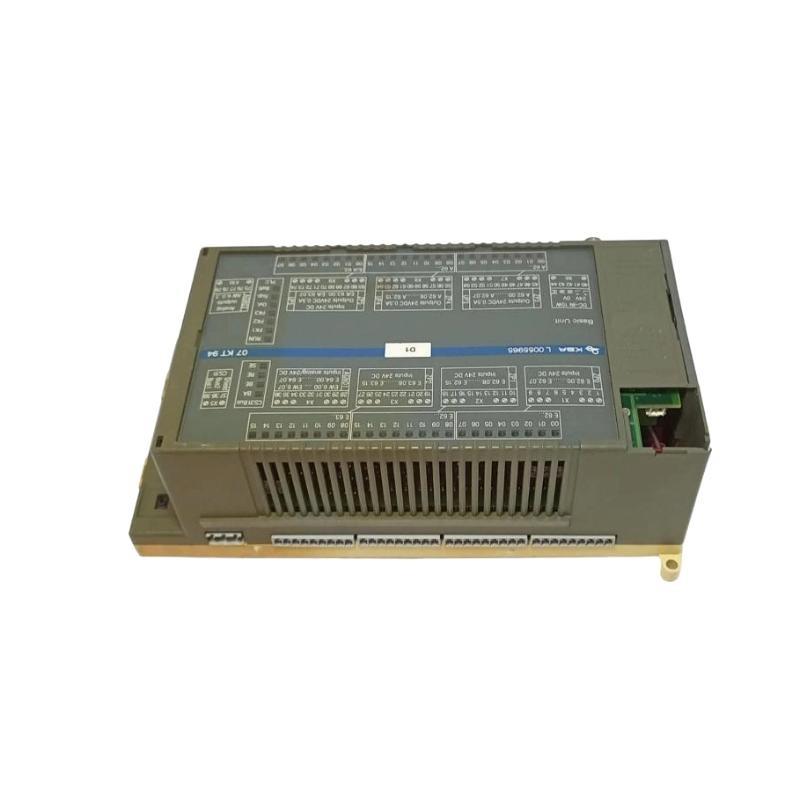

ABB 07KT94 GJR5252100R3261 Advant Controller 31 Basic Unit 30-Day Returns！

Frequently Asked Questions (FAQ)

What types of automation systems is 07KT94 suitable for?
It is suitable for small to medium-sized industrial automation systems, particularly in intelligent decentralized control scenarios such as process automation and factory production control.

Does it support analog input configuration?
Yes. It supports up to 8 analog input channels, configurable for voltage, current, or Pt100 temperature sensors via KW86 system constants.

Which communication protocols are supported?
MODBUS RTU is supported through the COM1 and COM2 serial interfaces.

Is a high-speed counter supported?
Yes. Various counter modes can be set using system constant KW85.02, including up/down counters and encoder inputs.

Is watchdog monitoring available?
Yes. Task cycle monitoring can be configured using KW80 system constants for overrun protection.

Will variable data be retained after power loss?
If a battery is present, the system supports buffering of variables (M, MW areas) to prevent data loss after power failure.

How is the unit configured as a CS31 slave?
By setting the system constant KW00.00 to an appropriate address (e.g., 0–61 or 100–115) and performing a warm/cold start.

Are diagnostic functions available for analog signals?
Yes. Analog channels support diagnostics such as open wire, short circuit, and range overflow, configured via the high byte in KW86 constants.
