Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

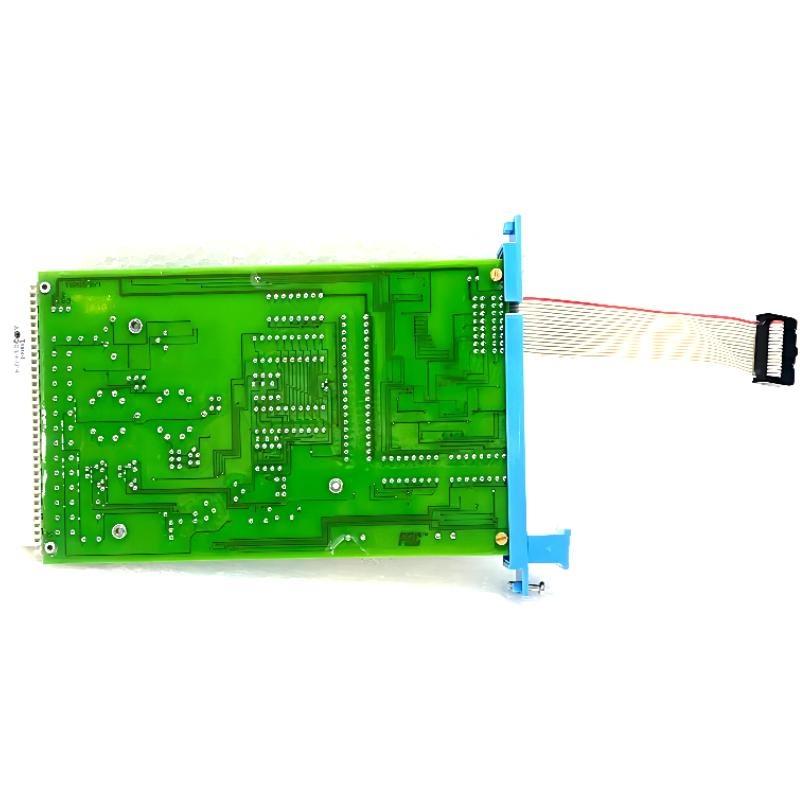

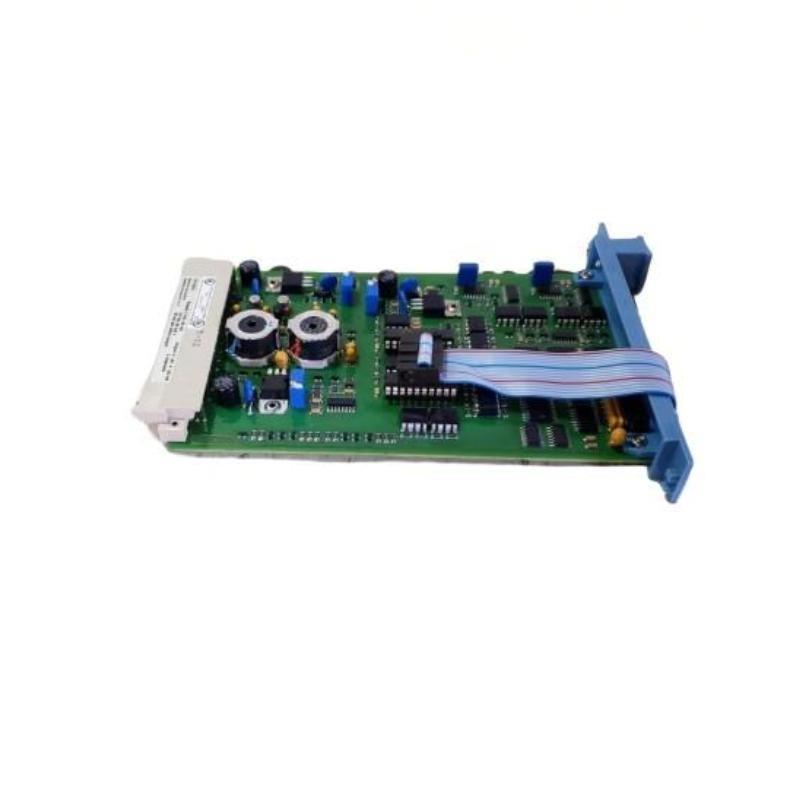

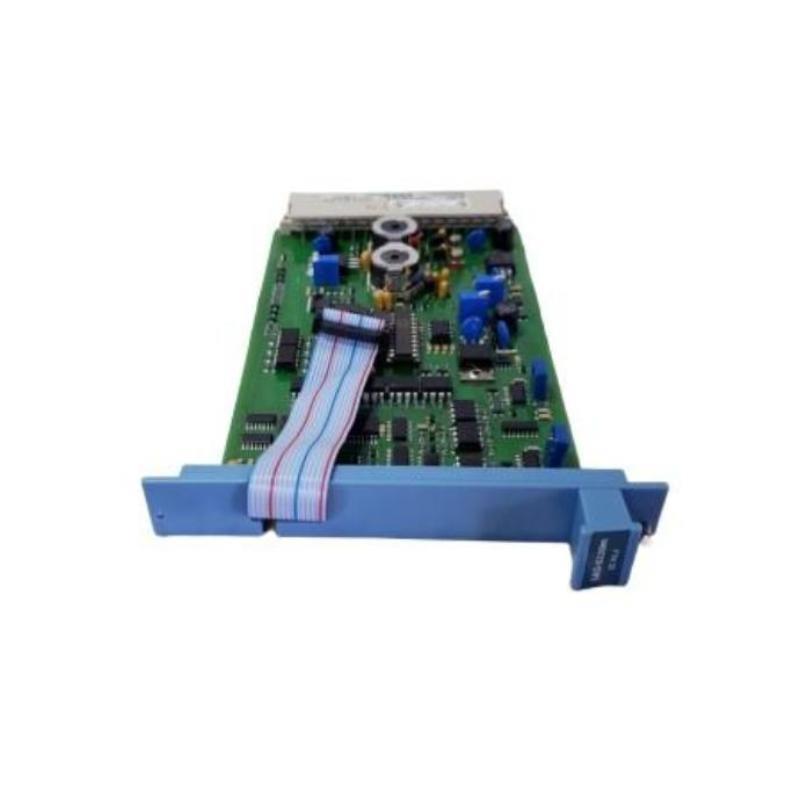

Honeywell FC-SAO-022M Safe Analog Output Module New In Stock

Brand：Honeywell

Item No.：FC-SAO-022M

Product Type：Safe Analog Output Module

Product Origin：USA

Dimensions：100 x 180 x 100mm

Weight：0.5kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many output modes does the FC-SAO-022M support?
It supports both 0–20 mA and 4–20 mA analog current output, configurable as active or passive.

Are the analog output channels electrically isolated?
Yes, both channels are galvanically isolated from each other and from the 24 VDC and 5 VDC power supplies.

Does the module support redundant analog outputs?
Yes, redundant analog output configuration is supported from Safety Builder release 120 and later.

Is the FC-SAO-022M suitable for hazardous area installations?
Yes, it complies with FM 3611 and is approved for Class I, Division 2 non-incendive field circuits.

How does the module perform self-diagnostics?
It uses internal A/D converters to verify output accuracy, ability to de-energize, and detect cross-talk.

What should be done with unused output channels?
Unused channels must be shorted; otherwise, the self-test will register them as faulty.

What is the role of the watchdog function?
The watchdog input allows the system to forcibly de-energize outputs via the SMOD mechanism for safety.

How much rack space does the module require?
The module requires 4 TE in width and 3 HE in height, equivalent to 4 HP and 3U.
