Product Introduction

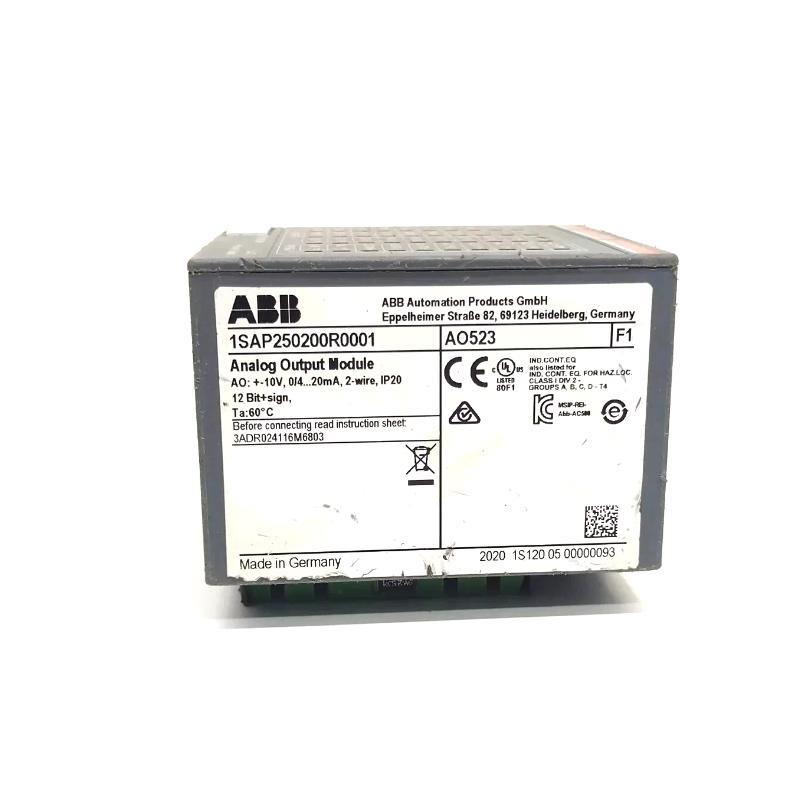

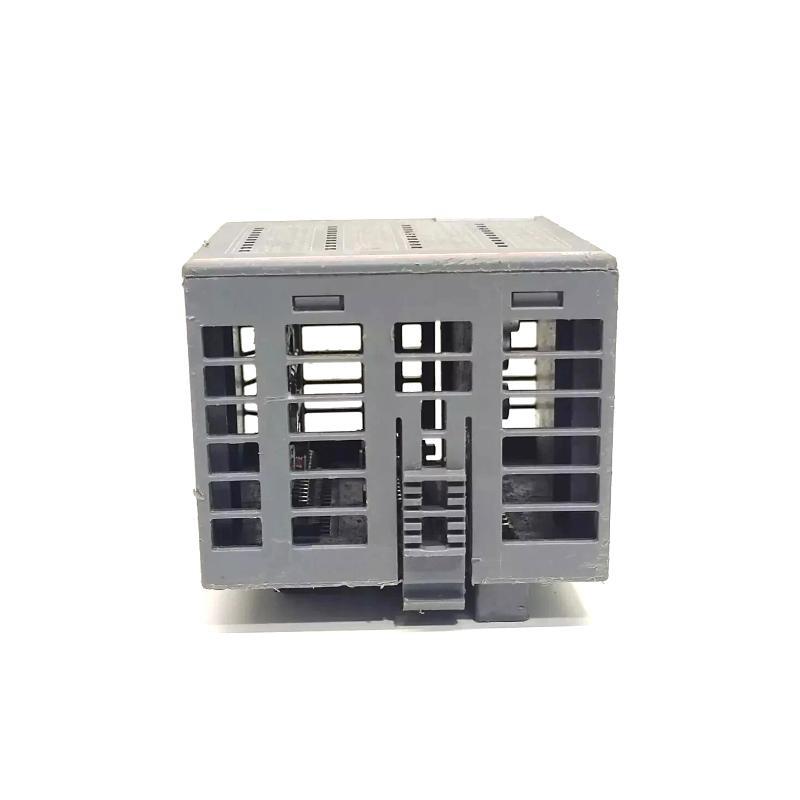

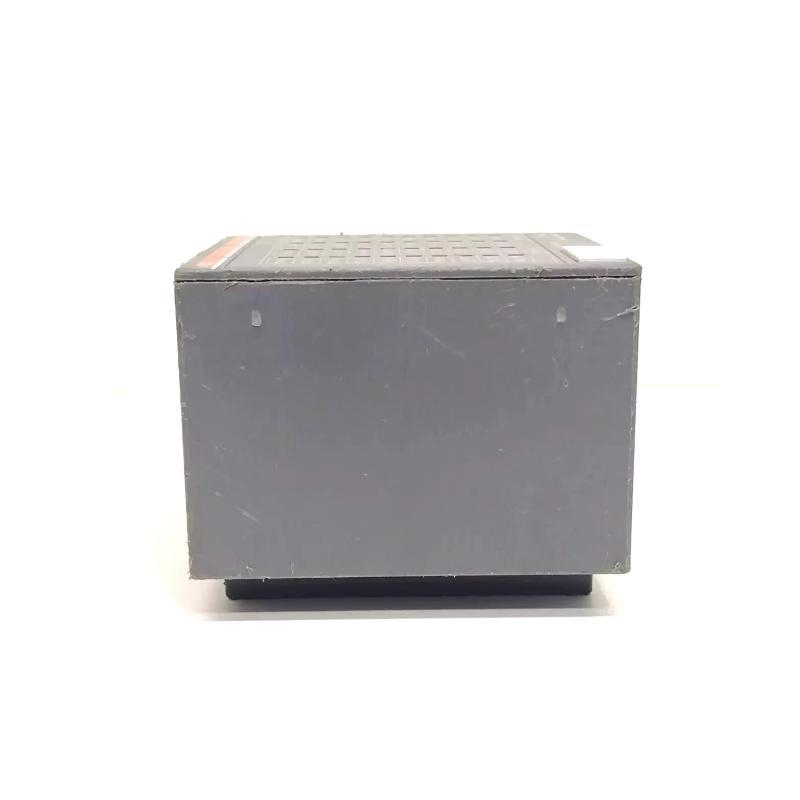

ABB AO523 1SAP250200R0001 S500 Analog Output Module 12-Month Warranty

Brand：ABB

Item No.：AO523 1SAP250200R0001

Product Type：S500 Analog Output Module

Product Origin：Sweden (SE)

Dimensions：62 x 76 x 67.5 mm

Weight：0.127 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance instructions support, stable and reliable service

Wide model coverage, efficient delivery, welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

How many outputs support current output mode?
Only channels 0–3 and 8–11 support current output (0–20 mA or 4–20 mA).

Can the module be mounted vertically?
Yes, but with derating — output load must be reduced to 50% per group above 40°C.

What is the resolution of the output signals?
The module provides a resolution of 12 bits with sign.

What kind of protection does AO523 offer?
It includes protection against reverse polarity, short circuit, and overvoltage up to 30 V DC.

Can unused output channels be left disconnected?
Yes, unused analog output channels can remain open without causing errors.

What LED indicators are present on AO523?
There are 19 LEDs: 16 yellow for output channels, 1 green for UP (24 VDC), and 2 red for error groups (CH-ERR2, CH-ERR4).

Is there electrical isolation between channels?
No isolation between channels, but the module is isolated from internal electronics and other modules.

What terminal units are compatible with AO523?
Terminal units TU515 (screw type) and TU516 (spring type) are compatible.
