Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

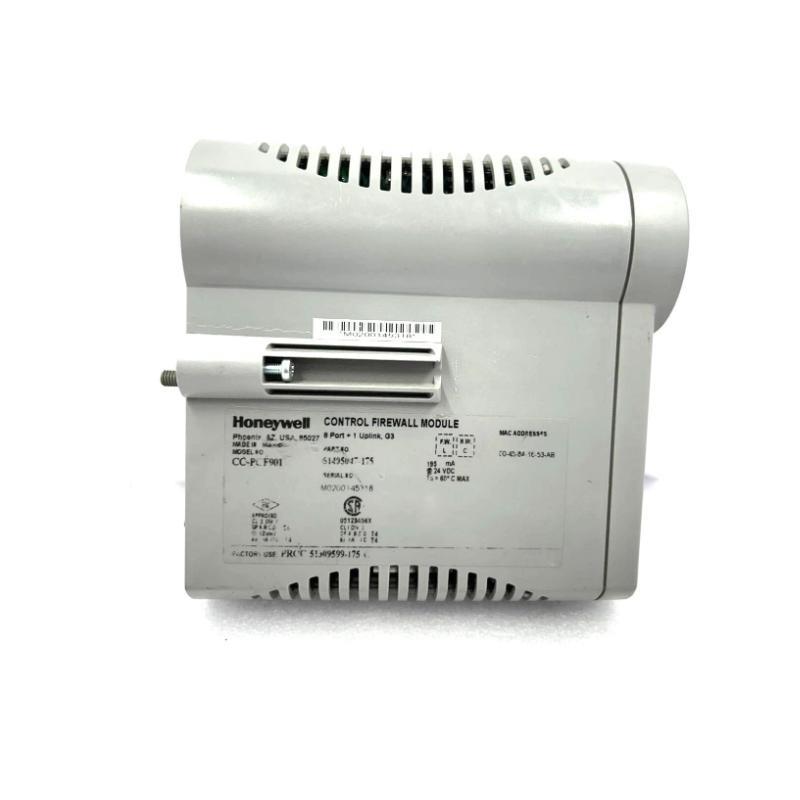

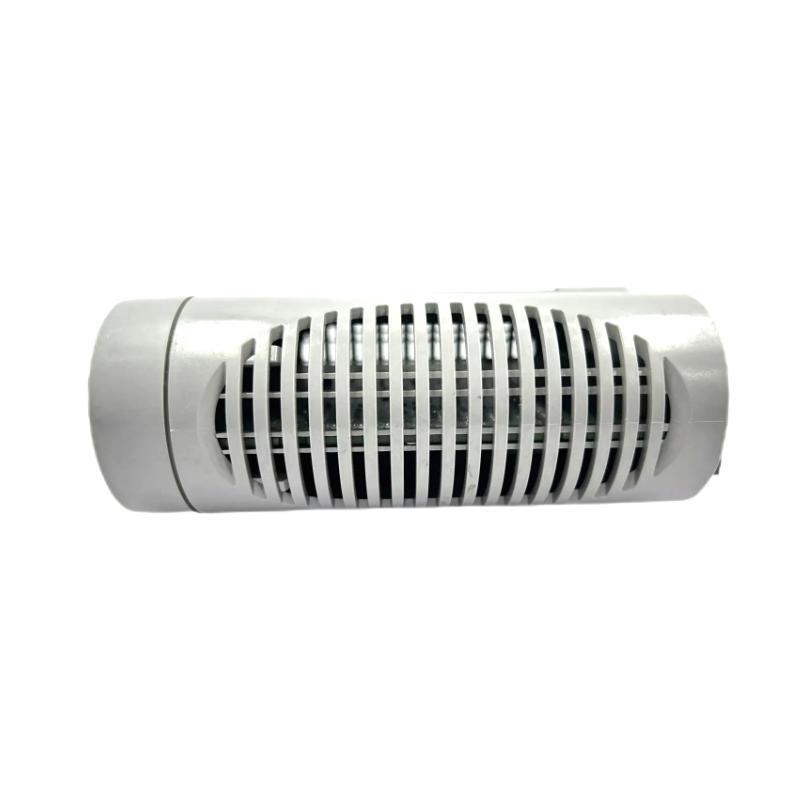

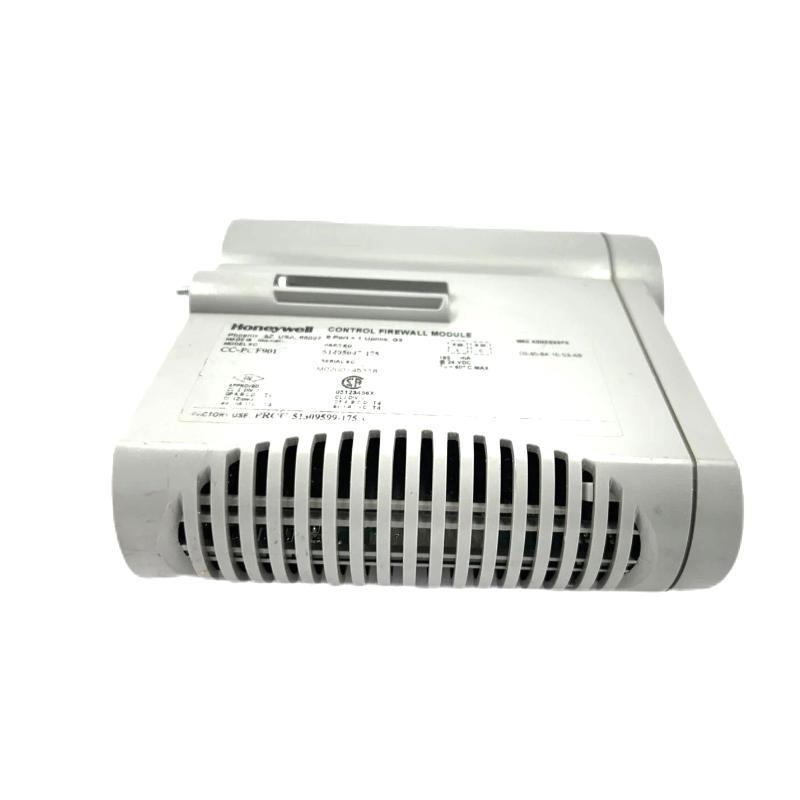

Honeywell CC-PCF901 51405047-176 Control Firewall Module Unbelievable Prices!

Brand：Honeywell

Item No.：CC-PCF901 51405047-176

Product Type：Control Firewall Module

Product Origin：USA

Dimensions：63.5 x 124.46 x 307.34 mm

Weight：0.25 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, and responsive services

Ten thousand models in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary role of the CC-PCF901 module?
It serves as a Control Firewall for the Experion Series C system, managing FTE traffic and ensuring only valid control-related communications pass through.

How many ports are available on the module?
The CC-PCF901 features 9 ports—8 downlink ports for C300 controllers and one uplink port to the supervisory FTE network.

Is it necessary to use a specific screwdriver for installation?
Yes, only a #2 Phillips screwdriver should be used to avoid damage to the module’s plastic mounting screw.

Can fiber optic modules be used with this firewall?
Yes, optional modules like CC-FSMX01 (Single-Mode) or CC-FMMX01 (Multi-Mode) can be installed in the IOTA.

Does the CF9 support stacking or spanning tree protocol?
No, stacking is not allowed, and spanning tree is not supported. Each port must be configured individually using portfast.

How is firmware upgraded on this module?
Firmware is updated using the Control Firewall Update Tool available via Configuration Studio or as a standalone tool.

What happens during startup of the module?
LEDs will indicate power-on, perform POST (Status LED red), then turn green upon normal operation. Ports flash when traffic is active.

What precaution should be taken before replacing the module?
Ensure the system is in a safe or offline state. Follow the recommended sequence, and never use a powered screwdriver.
