Name: ABB SDCS-REB-1C Interface Board New In Stock
Brand: ABB PLC
SKU: 6669
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

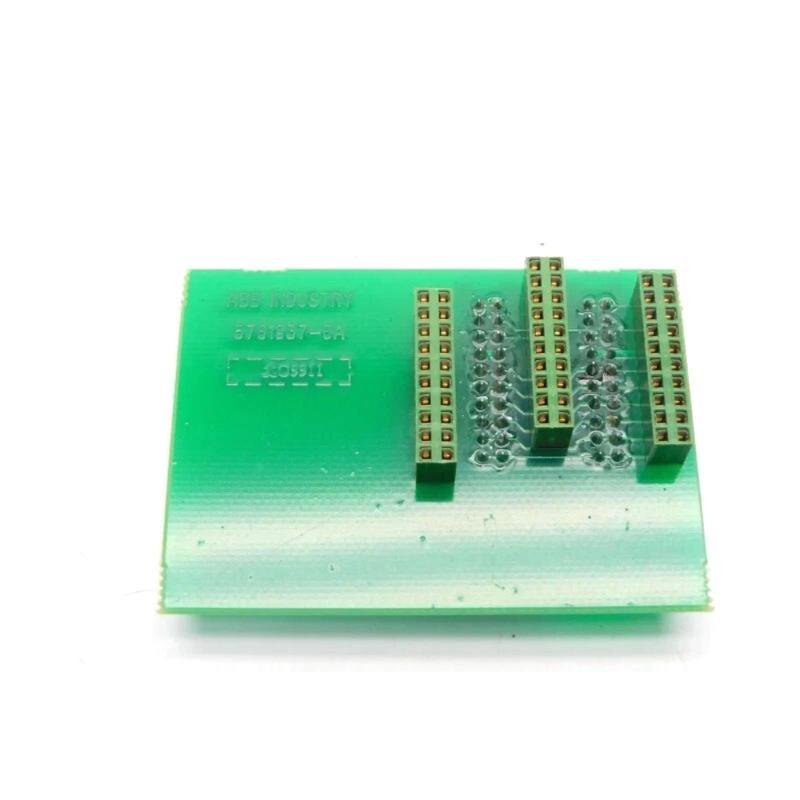

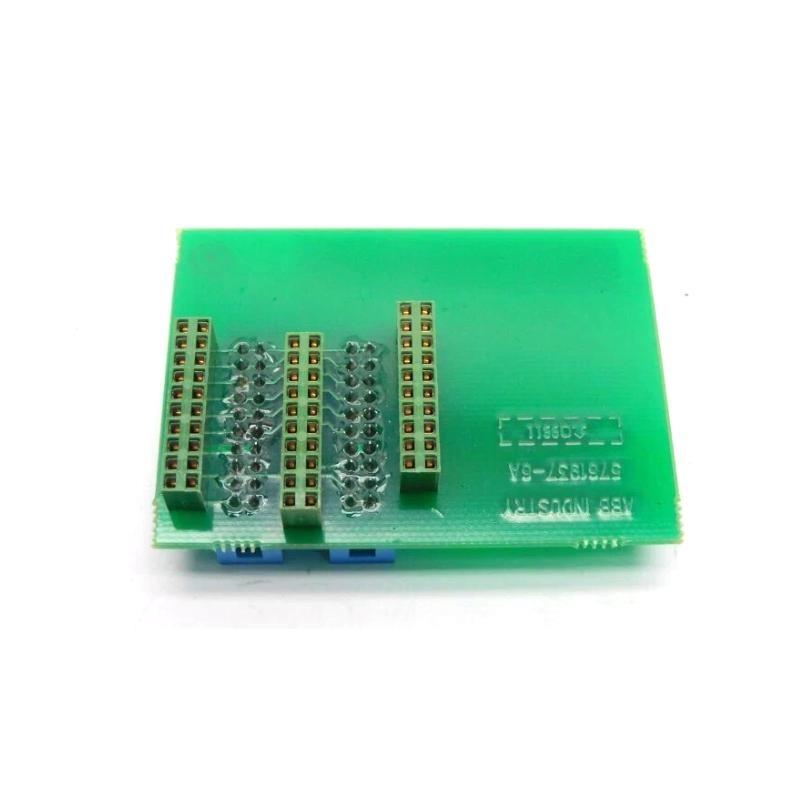

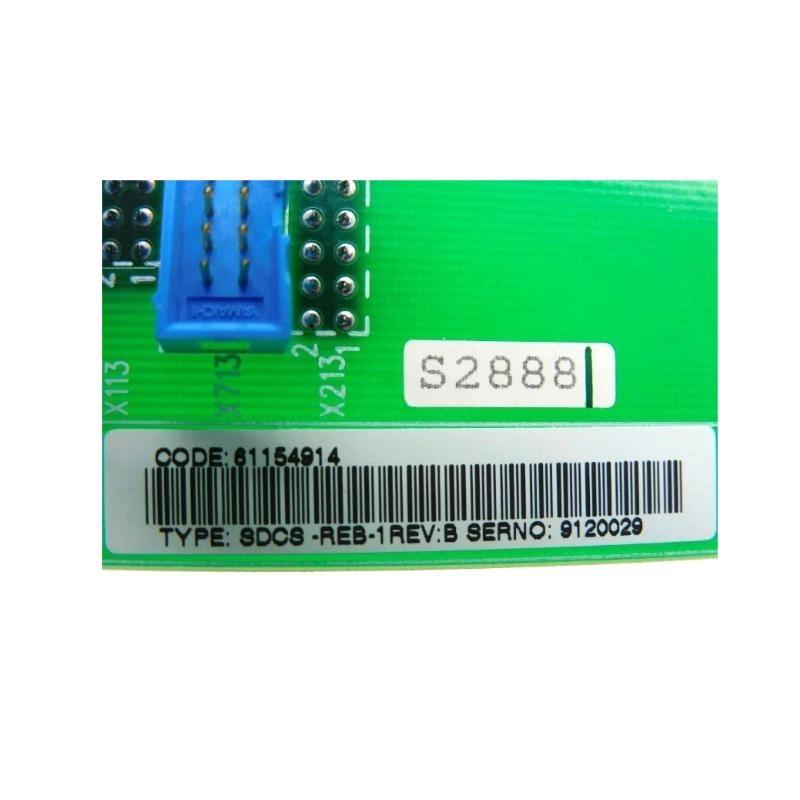

ABB SDCS-REB-1C Interface Board New In Stock

Brand：ABB

Item No.：SDCS-REB-1C

Product Type：Interface Board

Product Origin：Sweden (SE)

Dimensions：254 x 25 x 248 mm

Weight：0.4 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original source, data support test content, efficient after-sales processing

Regular models are in stock for a long time, inventory is stable, welcome to inquire about prices!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the function of the SDCS-REB-1C board?
The SDCS-REB-1C routes firing pulse signals to the correct thyristors in both forward and reverse bridges within a DC drive system.

What boards must the SDCS-REB-1C interface with?
It interfaces directly with the SDCS-PIN-51 and indirectly with the SDCS-PIN-41 for pulse transmission.

How are the outputs of the board connected?
Outputs are routed to connectors X613 for forward and X713 for reverse thyristor firing pulse transmission.

Can this board handle both 2-quadrant and 4-quadrant operation?
Yes, it supports both modes depending on configuration with REB-2 or REB-3 when multiple bridges are used.

What kind of mounting is required?
The board must be mounted using conductive metal standoffs at six M4 screw points with appropriate insulation clearance.

What kind of signal directionality does the board handle?
It uses SR1 and SR2 signals to control direction-specific thyristor firing via channel grouping (ACE/BDF).

Is the SDCS-REB-1C sufficient for multi-bridge configurations?
No, for multi-bridge applications, additional boards like SDCS-REB-2 and SDCS-REB-3 are required.

What precautions should be taken during installation?
Ensure signal paths are correct and gate leads are within 1 meter to minimize interference and ensure accurate thyristor firing.
