Product Details

HIMA provide full solution, including hardware, software, engineering, to ensure safe production processes.

HIMA H41q/H51q Series——MS/HS/HRS(AK6/SIL3)

HIMA Himatrix Series——F20/F30/F31/F35/F60(AK6/SIL3)

Product Introduction

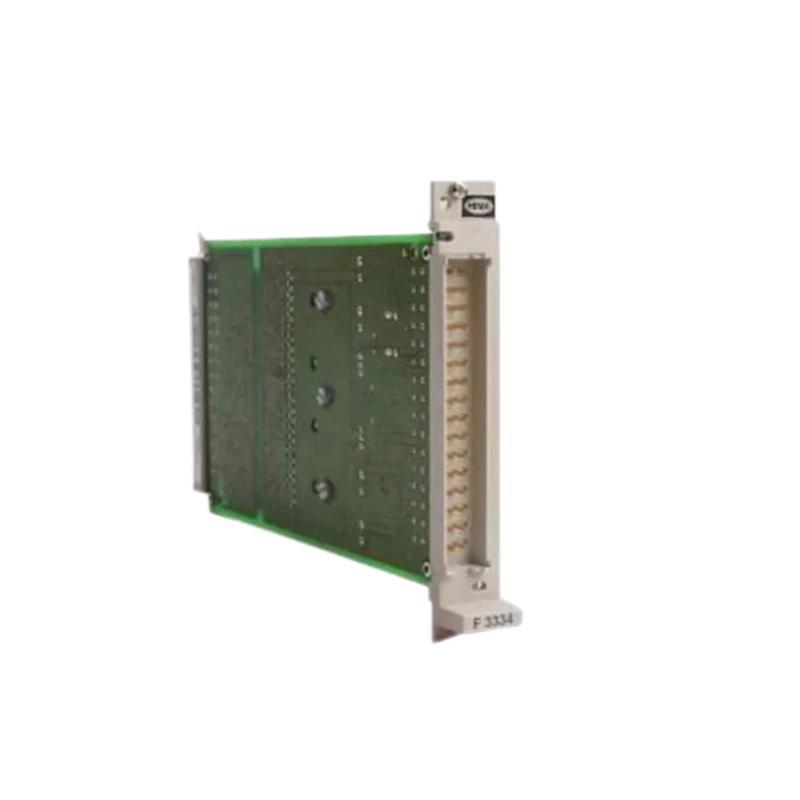

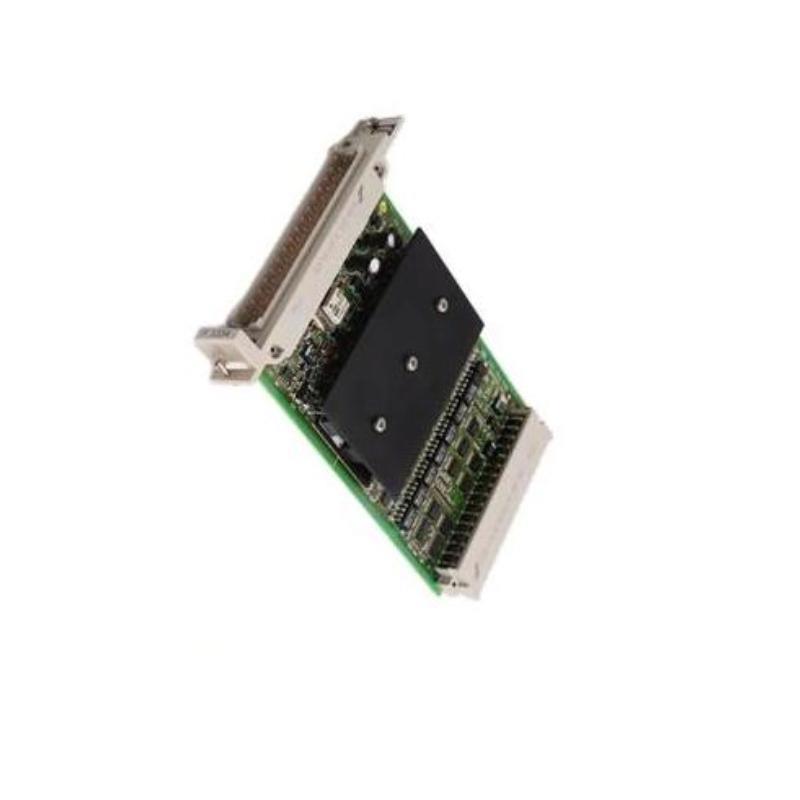

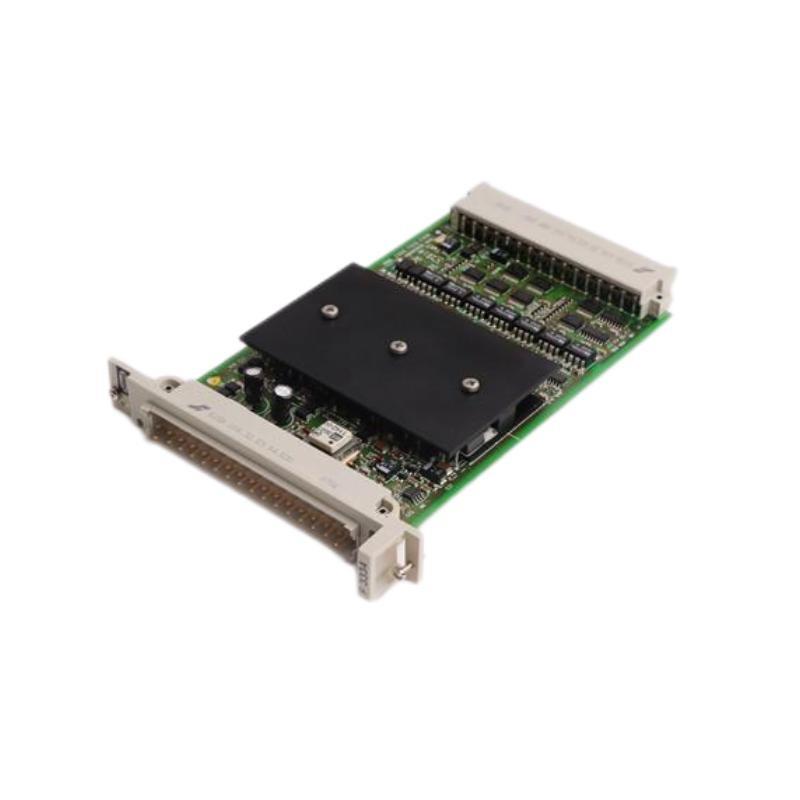

HIMA F3334 4-Fold Output Module 100% New

Brand：HIMA

Item No.：F3334

Product Type：4-Fold Output Module

Product Origin：Germany

Dimensions：120 x 160 x 40 mm

Weight：0.113 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

How many channels can be used at full 2 A load simultaneously?
Only 2 channels can be operated simultaneously at 2 A. For loads up to 1 A, all 4 channels can operate simultaneously.

Does the module have short-circuit protection?
Yes, each output is short-circuit proof.

Is line monitoring supported?
Yes, the module supports line monitoring and requires a minimum load of 10 mA for detection.

What happens during a line break?
In the event of a line break, no output signal is generated due to L- supply loss detection.

Can the module drive lamps directly?
Yes, up to 25 W lamp loads are supported, but high inrush currents may require configuration via software block HB-BLD-.

What is the undervoltage threshold?
The module trips on undervoltage at ≤ 16 V.

Can the outputs be paralleled?
Yes, outputs can be paralleled without external diodes.

Is the module automatically tested during operation?
Yes, the module performs automatic self-tests including output feedback and line monitoring.
