Name: GE IC694ALG222 PACSystems RX3i Analog Input Module Unbelievable Prices!
Brand: GE Fanuc PLC
SKU: 6732
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 114 left

76%

Add to cart

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

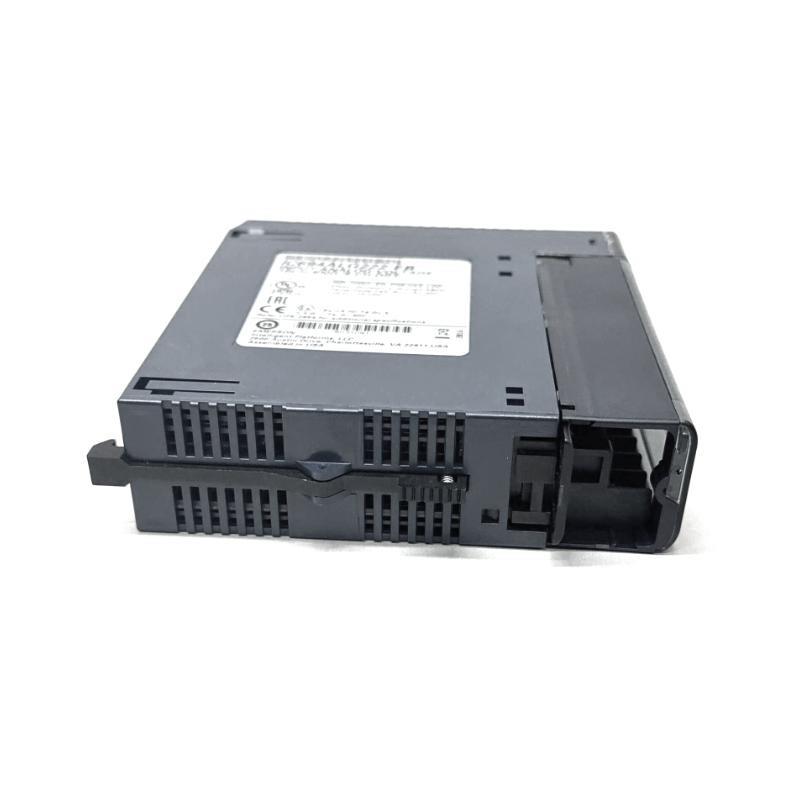

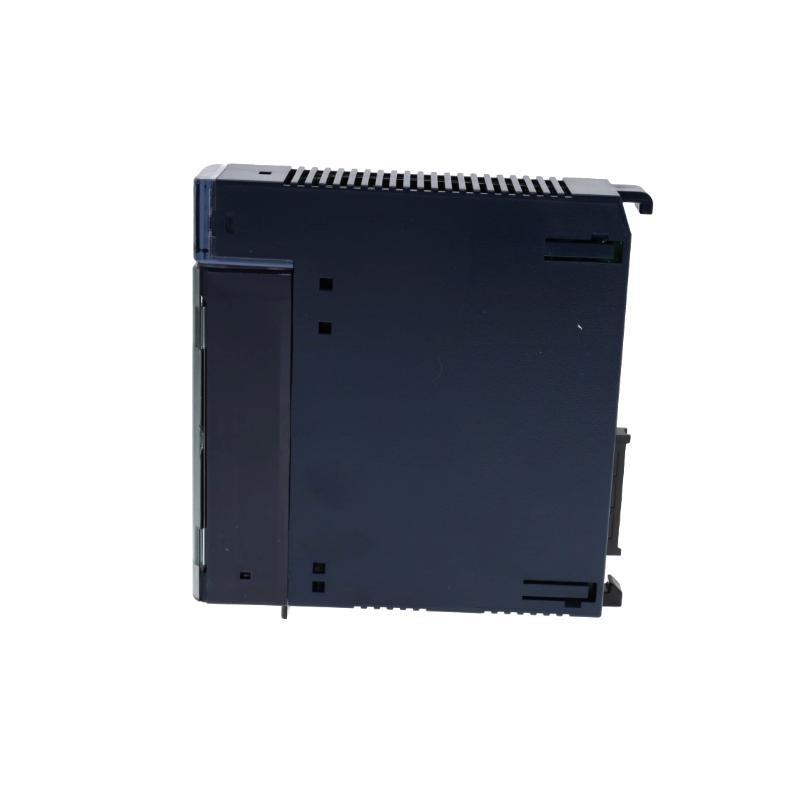

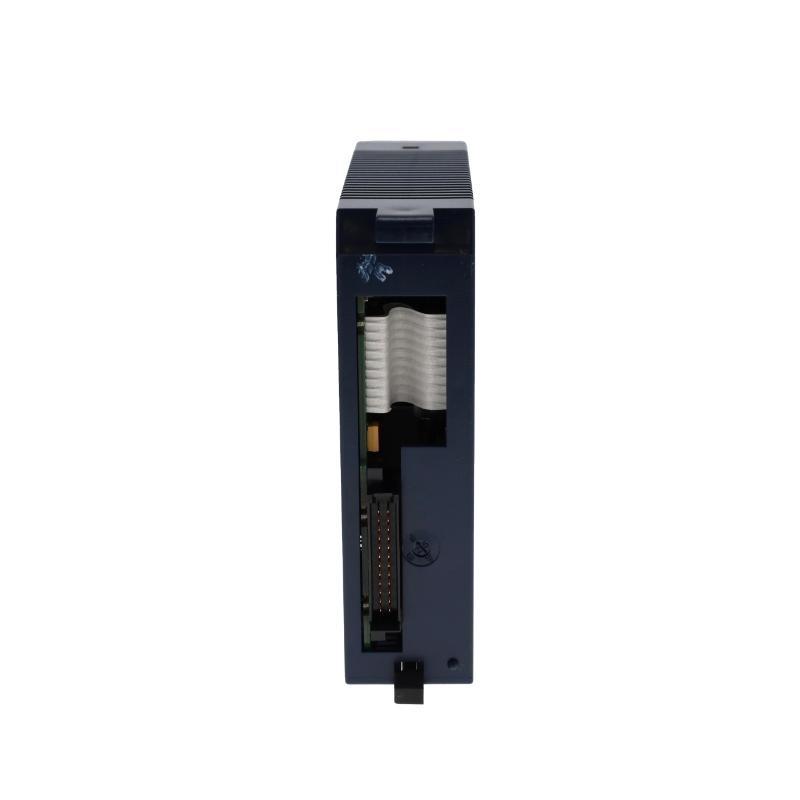

GE IC694ALG222 PACSystems RX3i Analog Input Module Unbelievable Prices!

Brand：GE Fanuc

Item No.：IC694ALG222

Product Type：Analog Input Module

Product Origin：USA

Dimensions：34 x 145 x 140mm

Weight：0.29 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What input modes are supported by IC694ALG222?
The module supports single-ended and differential input modes. It provides 16 channels in single-ended mode or 8 channels in differential mode.

Can each channel be configured individually?
Yes, each channel can be independently configured for unipolar (0 to 10 V) or bipolar (-10 to +10 V) input ranges.

What is the resolution of this module?
The resolution is 2.5 mV per count in unipolar mode and 5 mV per count in bipolar mode.

Does the module support alarm limits?
Yes, high and low alarm limits can be set for each channel based on the configured voltage range.

What type of electrical isolation is provided?
Optical isolation is provided with 250 VAC continuous and 1500 VAC for 1-minute withstand voltage.

What happens if the configuration is not received from the CPU?
The MODULE OK LED will flash rapidly to indicate that configuration data has not been received.

Can this module be installed in any slot of the RX3i backplane?
Yes, it can be installed in any I/O slot of an RX3i Universal or Expansion backplane.

What is the default voltage range for the module?
The default configuration is unipolar, with an input voltage range of 0 to 10 V.
