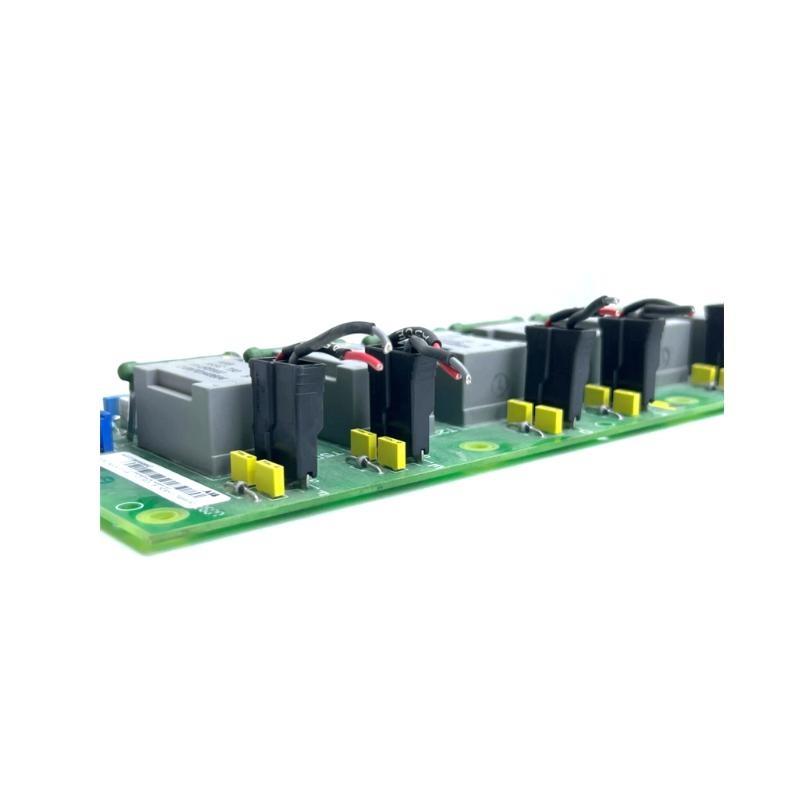

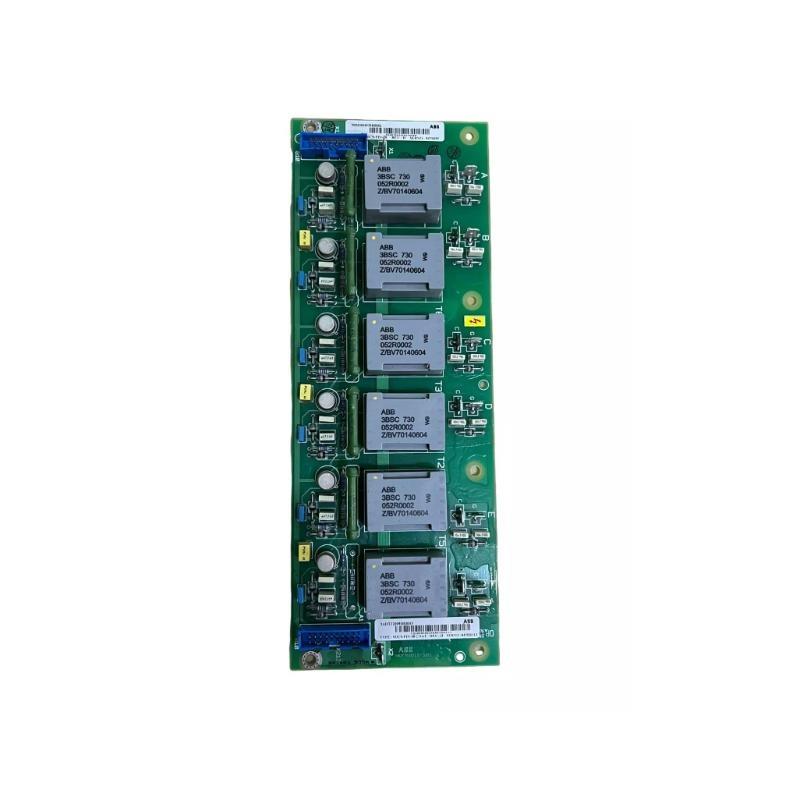

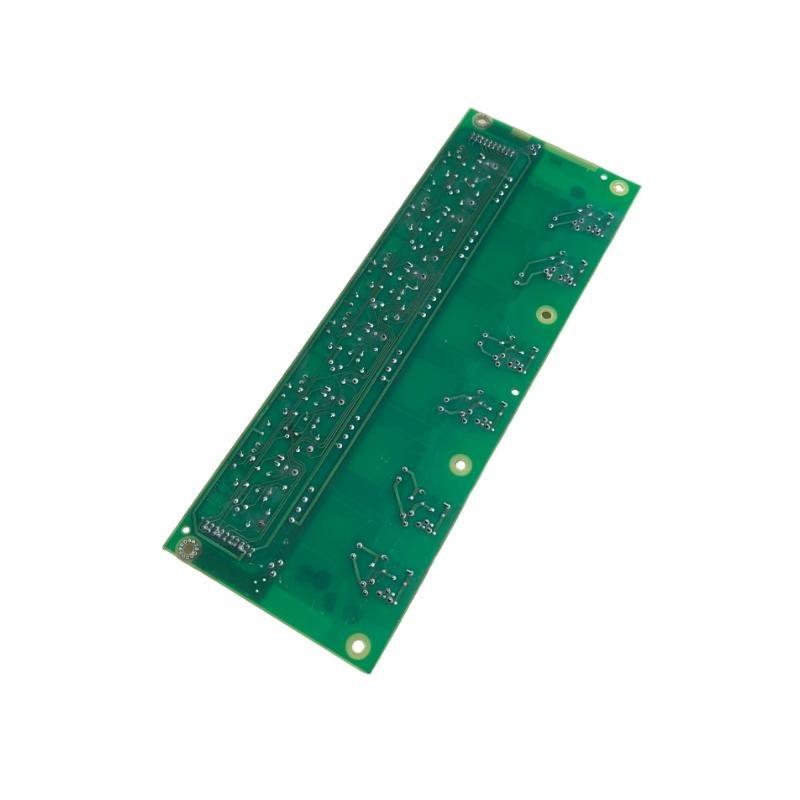

ABB SDCS-PIN-48 3ADT220090R0043 Pulse Transformer Board Original

Brand：ABB

Item No.：SDCS-PIN-48 3ADT220090R0043

Product Type：Pulse Transformer Board

Product Origin：Sweden (SE)

Dimensions：257 × 200 × 15 mm

Weight：0.328 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, fast response to after-sales service

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the function of SDCS-PIN-48?
It serves as a power interface board in ABB DCS DC drive systems, isolating and transmitting pulse control signals safely.

Which ABB drive systems support SDCS-PIN-48?
It is compatible with DCS 500B and DCS 600 series drives.

Does SDCS-PIN-48 provide electrical isolation?
Yes, it uses pulse transformers to isolate control signals from the main circuit.

Is hot swapping supported?
No, the module should only be installed or removed when the system is powered down.

What are common failures of the module?
Typical issues include signal distortion, loss of isolation, and solder joint degradation.

Is additional cooling required?
No extra cooling is needed. It is designed for natural convection in standard environments.

How can one detect a faulty module?
Diagnostic tools or oscilloscopes can be used to check for abnormal pulse output signals.

Can SDCS-PIN-48 be used with non-ABB systems?
Not recommended. It is specifically designed for ABB DCS platforms and may not function properly elsewhere.
